Product Description
Type | Description |
|---|---|
PART# | EFB0612HA |
category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | EFB |
Packaging | Tray |
Part Status | Active |
Voltage - Rated | 12VDC |
Size / Dimension | Square - 60mm L x 60mm H |
Width | 10.00mm |
Air Flow | 18.0 CFM (0.504m³/min) |
Static Pressure | 0.132 in H2O (32.9 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | Locked Rotor Protection |
Noise | 33.0dB(A) |
Power (Watts) | 1.44 W |
RPM | 4200 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.062 lb (28.12 g) |
Current Rating (Amps) | 0.120A |
Voltage Range | 7 ~ 13.8VDC |
Material - Frame | Plastic |
Material - Blade | Plastic |
Lifetime @ Temp. | 70000 Hrs @ 40°C |
Base Product Number | EFB0612 |

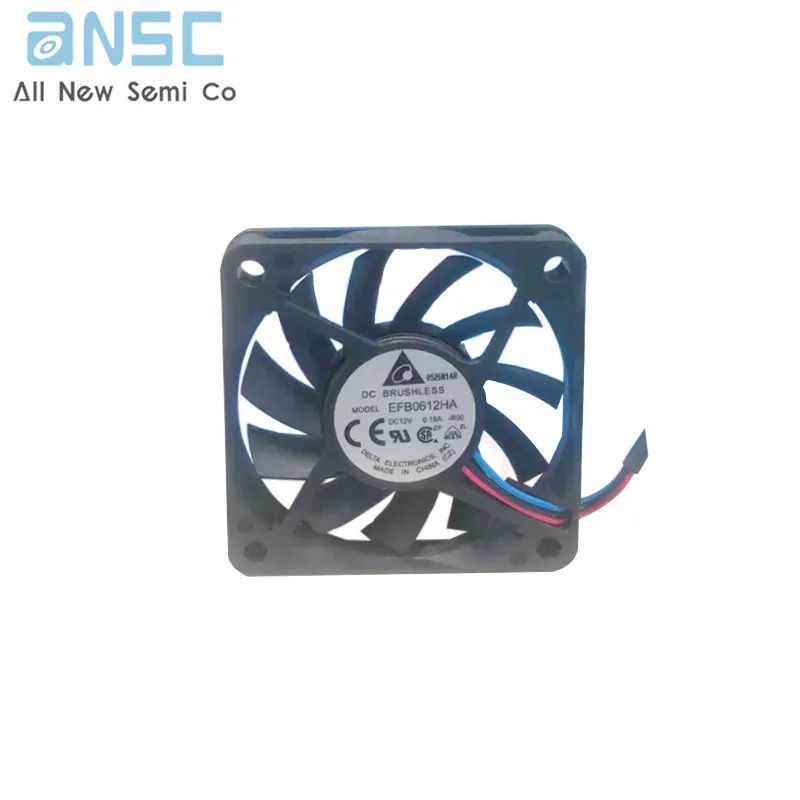

Actual image of the product
