Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | 4000Z |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 230VAC |
Size / Dimension | Square - 119mm L x 119mm H |
Width | 38.00mm |
Air Flow | 58.8 CFM (1.64m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 26.0dB(A) |
Power (Watts) | 13.00W |
RPM | 1700 RPM |
Termination | 2 Terminals |
Ingress Protection | IP54/IP65 - Dust Protected, Water Resistant, Dust Tight, Water Resistant |
Operating Temperature | -40 ~ 167°F (-40 ~ 75°C) |
Approval Agency | CE, CSA, UL, VDE |
Current Rating (Amps) | - |
Voltage Range | - |
Material - Frame | Aluminum |
Material - Blade | Steel |
Lifetime @ Temp. | 50000 Hrs @ 40°C |
Base Product Number | 4856 |

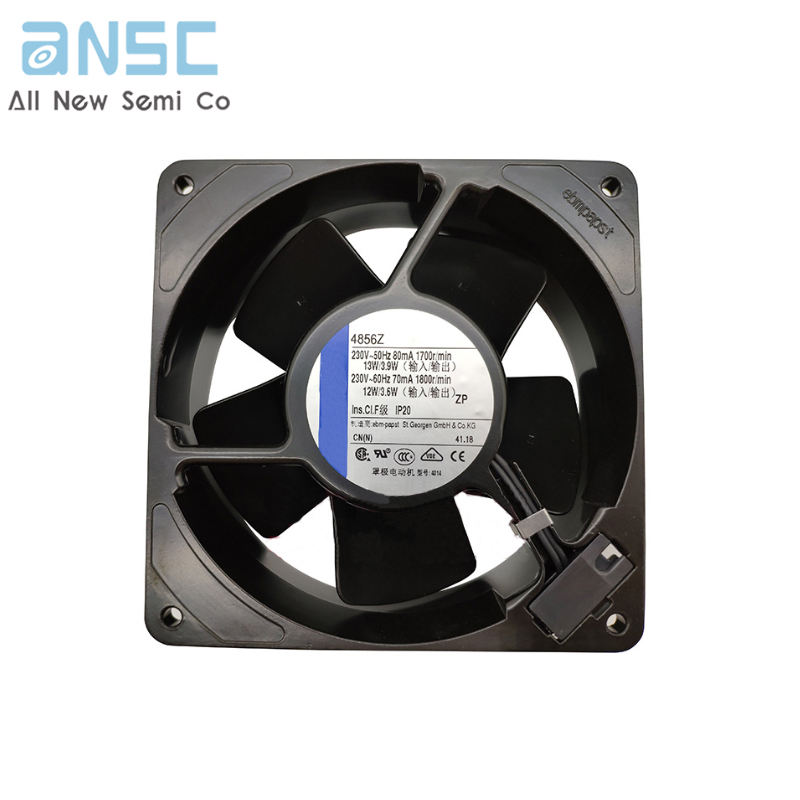

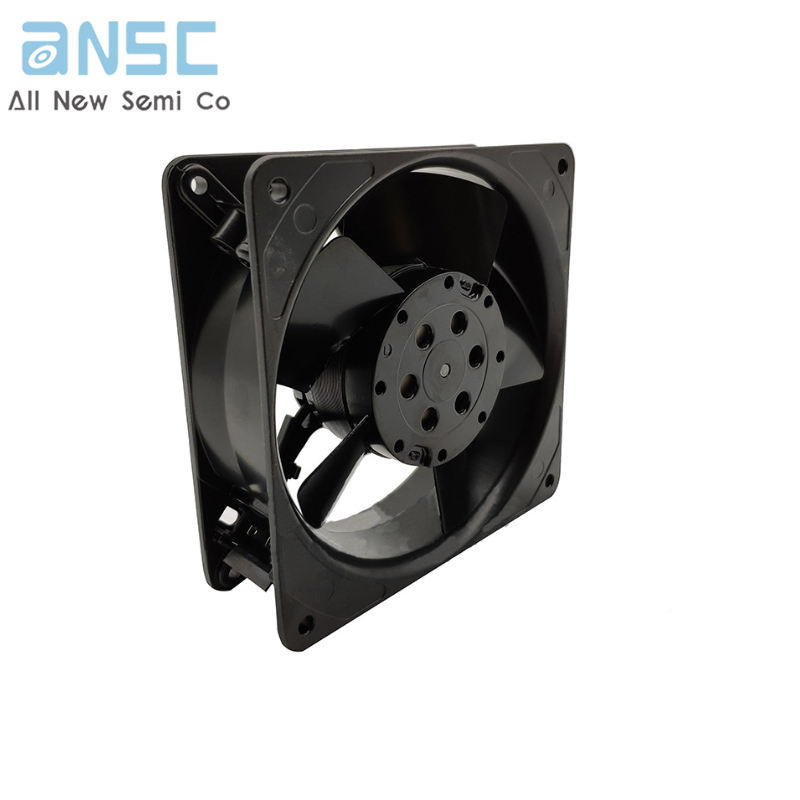

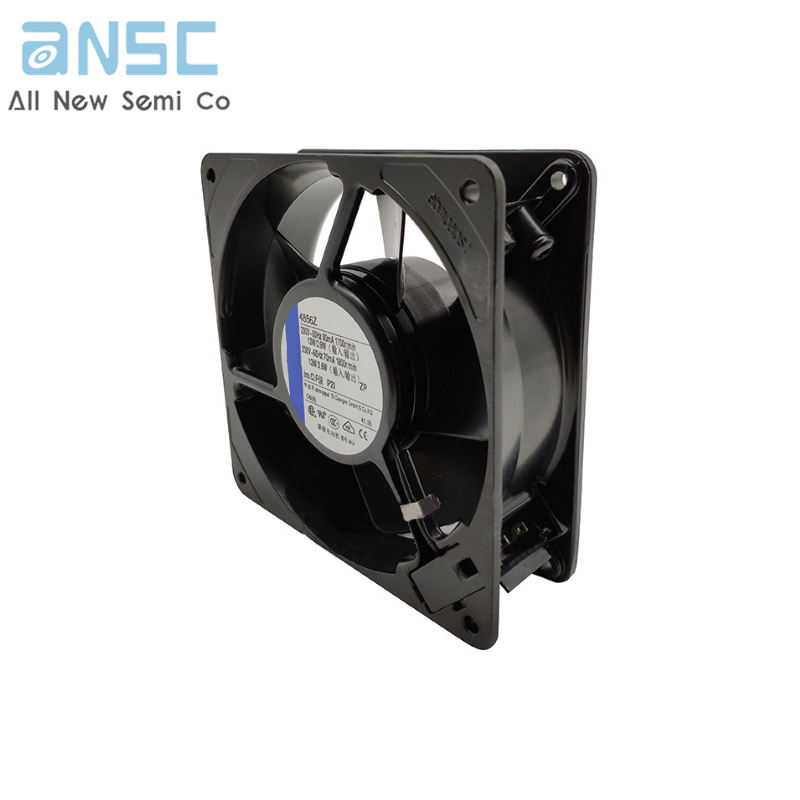

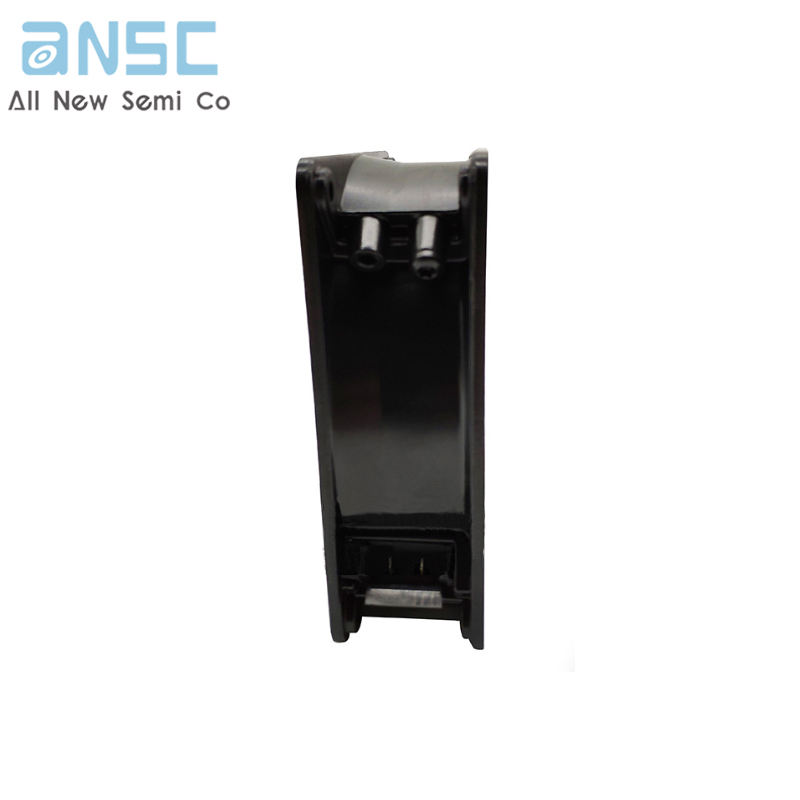

Actual image of the product
