Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | W2E200 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 115VAC |
Size / Dimension | Square - 225mm L x 225mm H |
Width | 80.00mm |
Air Flow | 606.0 CFM (16.97m³/min) |
Static Pressure | 0.482 in H2O (120.0 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 61.0dB(A) |
Power (Watts) | 80.0W |
RPM | 2800 RPM |
Termination | Terminal Block |
Ingress Protection | IP44 |
Operating Temperature | -40 ~ 149°F (-40 ~ 65°C) |
Approval Agency | CCC, CE, CSA, GOST, UL, VDE |
Weight | 4.4 lbs (2 kg) |
Current Rating (Amps) | 0.700A |
Voltage Range | - |
Material - Frame | Aluminum |
Material - Blade | Steel |
Lifetime @ Temp. | - |
Base Product Number | W2E200 |

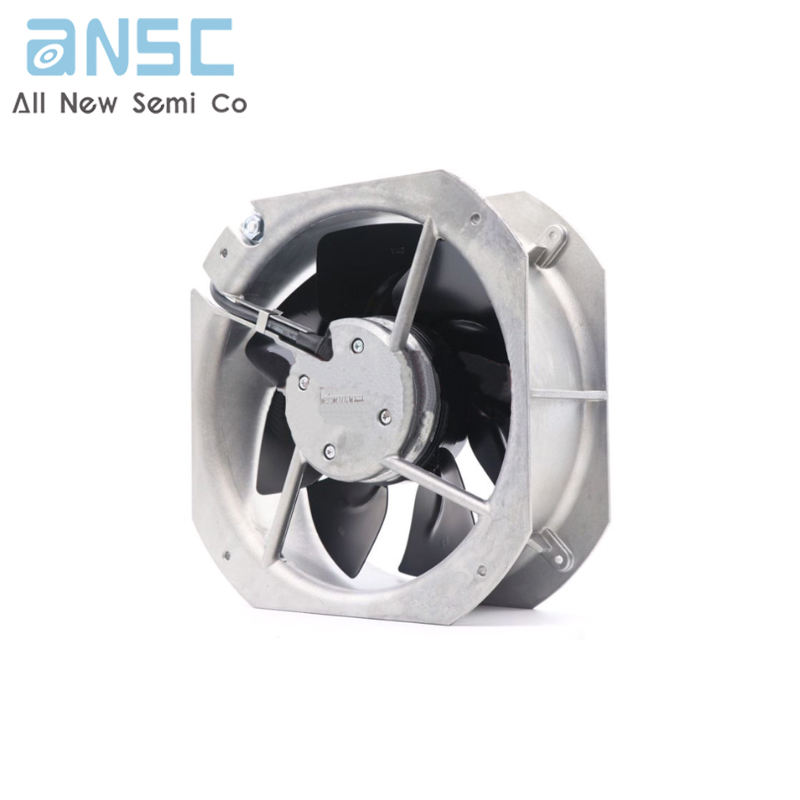

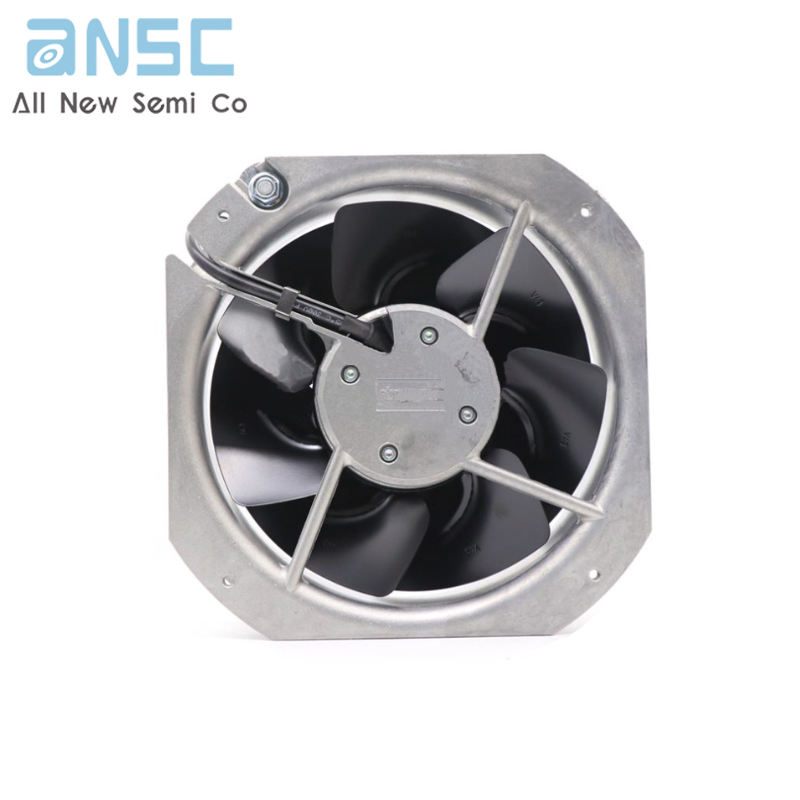

Actual image of the product
