Product Description
Type | Description |
|---|---|
PART# | 4600N-466 |
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | 4000N |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 115VAC |
Size / Dimension | Square - 119mm L x 119mm H |
Width | 38.00mm |
Air Flow | 106.0 CFM (2.97m³/min) |
Static Pressure | - |
Bearing Type | Sintec |
Fan Type | Tubeaxial |
Features | - |
Noise | 50.0dB(A) |
Power (Watts) | 18.00W |
RPM | 3100 RPM |
Termination | 2 Terminals |
Ingress Protection | - |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
Approval Agency | CE, CSA, UL, VDE |
Current Rating (Amps) | - |
Voltage Range | - |
Material - Frame | Aluminum |
Material - Blade | Steel |
Lifetime @ Temp. | 40000 Hrs @ 40°C |
Base Product Number | 4600 |

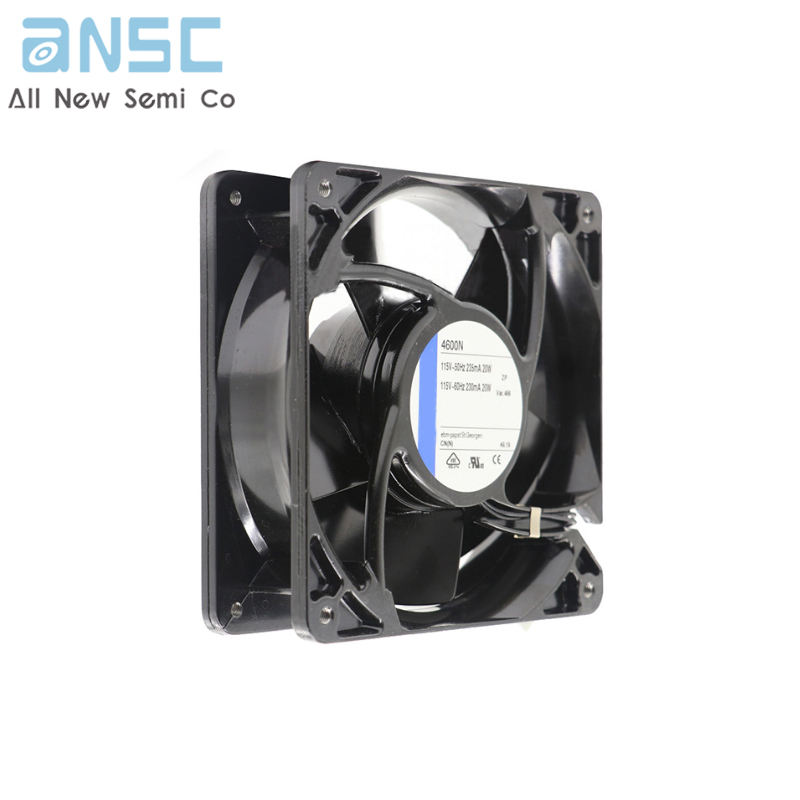

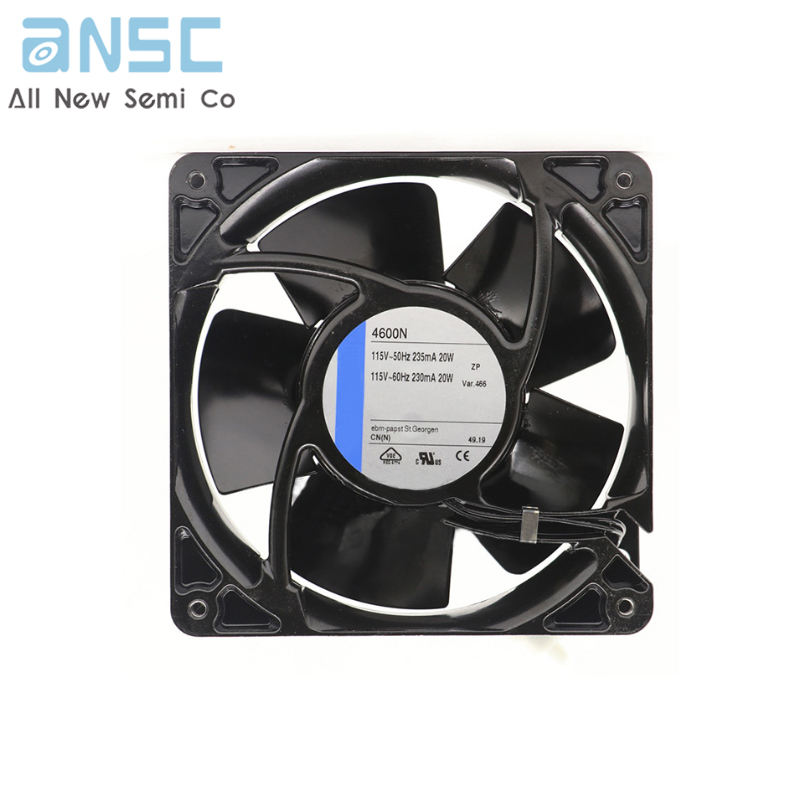

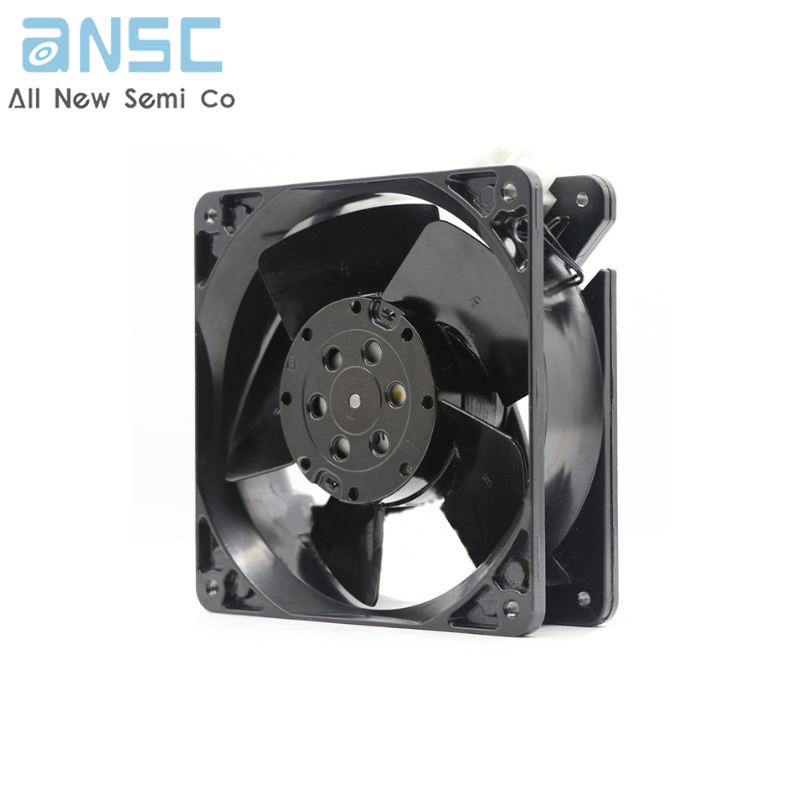

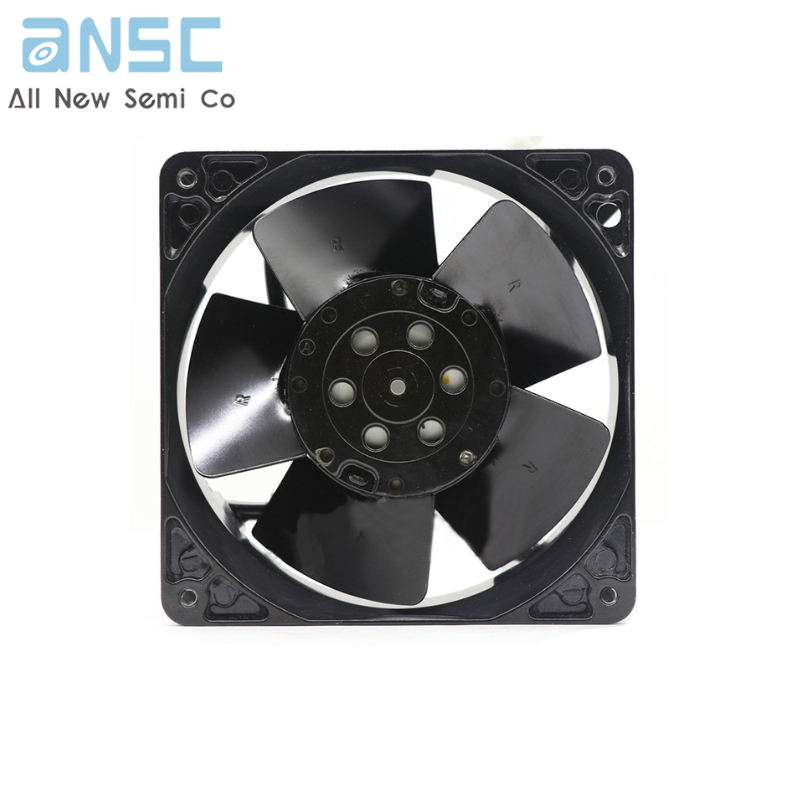

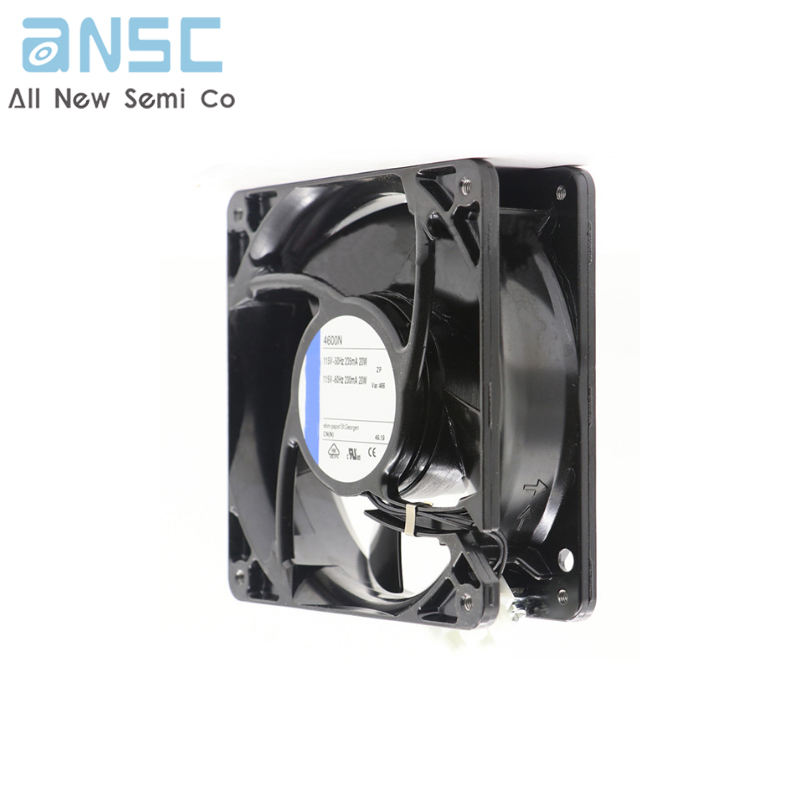

Actual image of the product
