Product Description
Type | Description |
|---|---|
PART# | W2E142-BB05-01 |
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | W2E142 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 115VAC |
Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
Width | 38.00mm |
Air Flow | 230.0 CFM (6.44m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 57.0dB(A) |
Power (Watts) | 28.00W |
RPM | 3350 RPM |
Termination | 2 Terminals |
Ingress Protection | - |
Operating Temperature | -40 ~ 176°F (-40 ~ 80°C) |
Approval Agency | CCC, CE, CSA, GOST, UL, VDE |
Weight | 1.8 lbs (816.5 g) |
Current Rating (Amps) | 0.250A |
Voltage Range | - |
Material - Frame | Aluminum |
Material - Blade | Steel |
Lifetime @ Temp. | - |
Base Product Number | W2E142 |

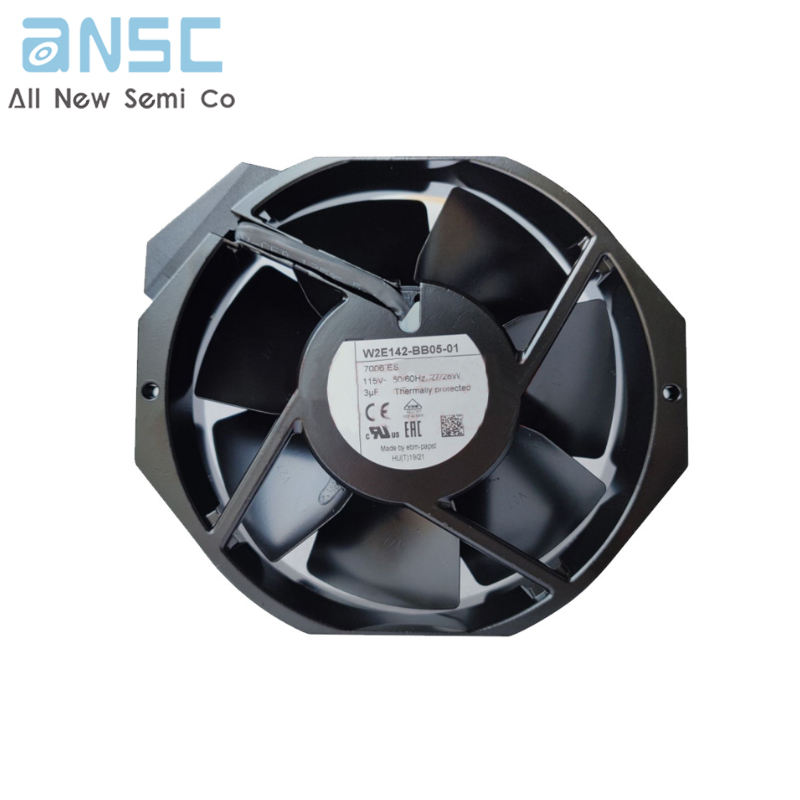

Actual image of the product
