Product Description
Type | Description |
|---|---|
PART# | R2E190-AO26-05 |
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | R2E190 |
Part Status | Obsolete |
Voltage - Rated | 230VAC |
Size / Dimension | Round - 190mm Dia |
Width | 68.50mm |
Air Flow | - |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Motorized Impellers |
Features | Capacitor, Thermal Overload Protection (TOP) |
Noise | - |
Power (Watts) | 75.0W |
RPM | 2700 RPM |
Termination | 4 Wire Leads |
Ingress Protection | IP44 |
Operating Temperature | 55°C |
Approval Agency | CCC, CE, CSA |
Weight | 2.6 lbs (1.2 kg) |
Current Rating (Amps) | 0.340A |
Voltage Range | - |
Material - Frame | - |
Material - Blade | Polyamide (PA6), Nylon 6, Fiberglass Reinforced |
Lifetime @ Temp. | - |

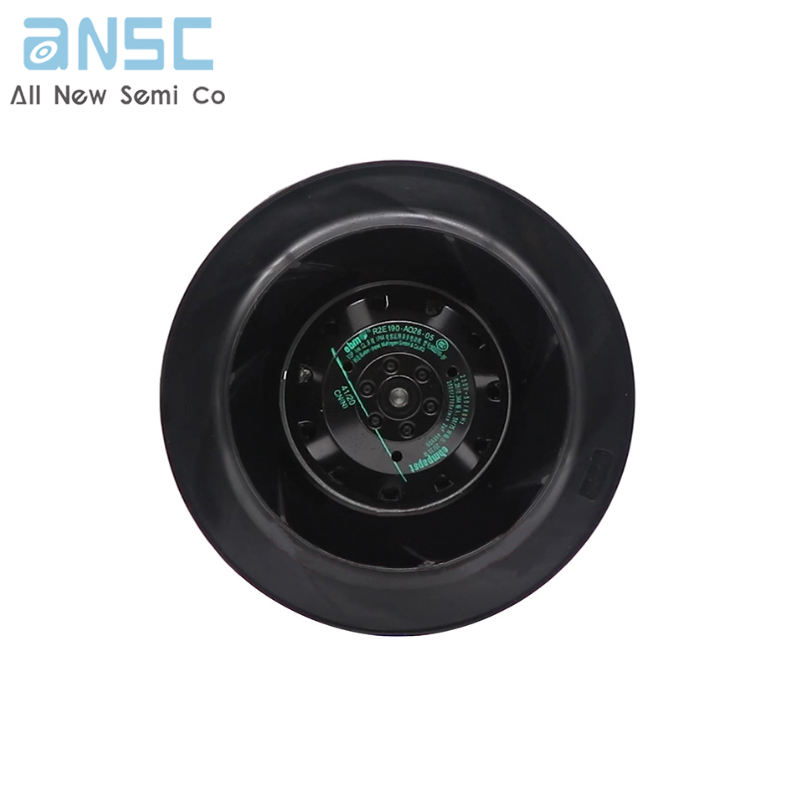

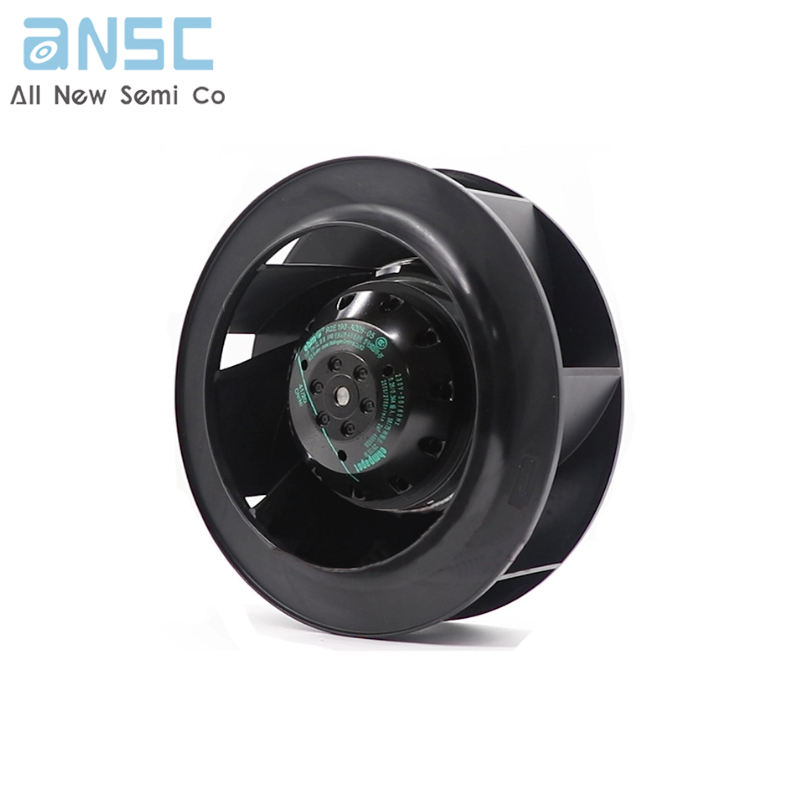

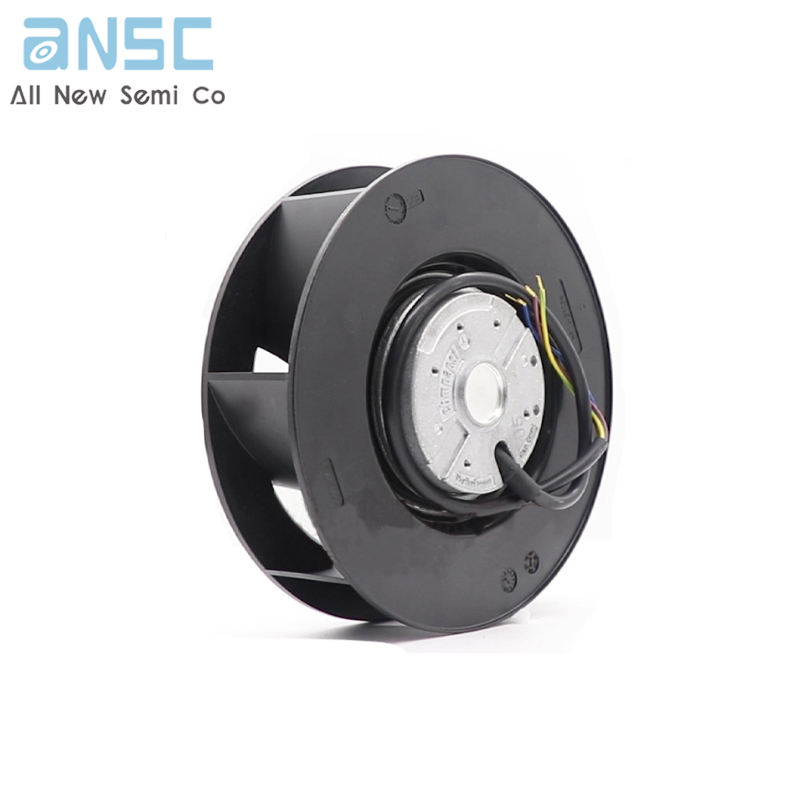

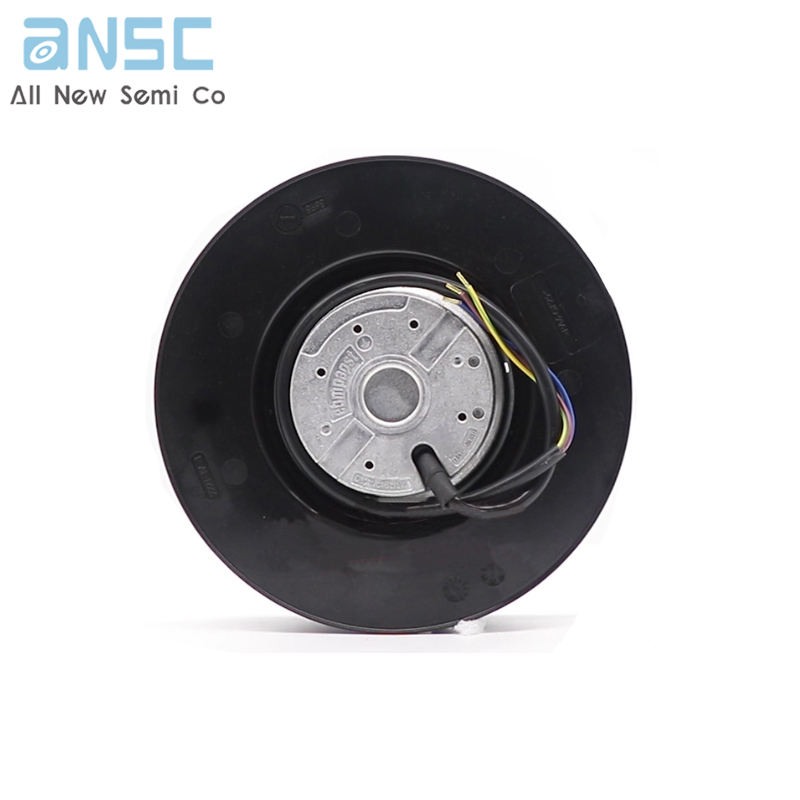

Actual image of the product
