Product Description
Type | Description |
|---|---|
PART# | 5114N |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 5100N |
Packaging | Box |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 135mm L x 135mm H |
Width | 38.00mm |
Air Flow | 147.0 CFM (4.12m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 48.0dB(A) |
Power (Watts) | 9 W |
RPM | 2900 RPM |
Termination | 2 Wire Leads |
Ingress Protection | IP20 |
Operating Temperature | -13 ~ 162°F (-25 ~ 72°C) |
Approval Agency | CE |
Weight | 1.4 lbs (635.0 g) |
Current Rating (Amps) | 0.460A |
Voltage Range | 12 ~ 32VDC |
Material - Frame | Aluminum |
Material - Blade | Aluminum |
Lifetime @ Temp. | 80000 Hrs @ 40°C |

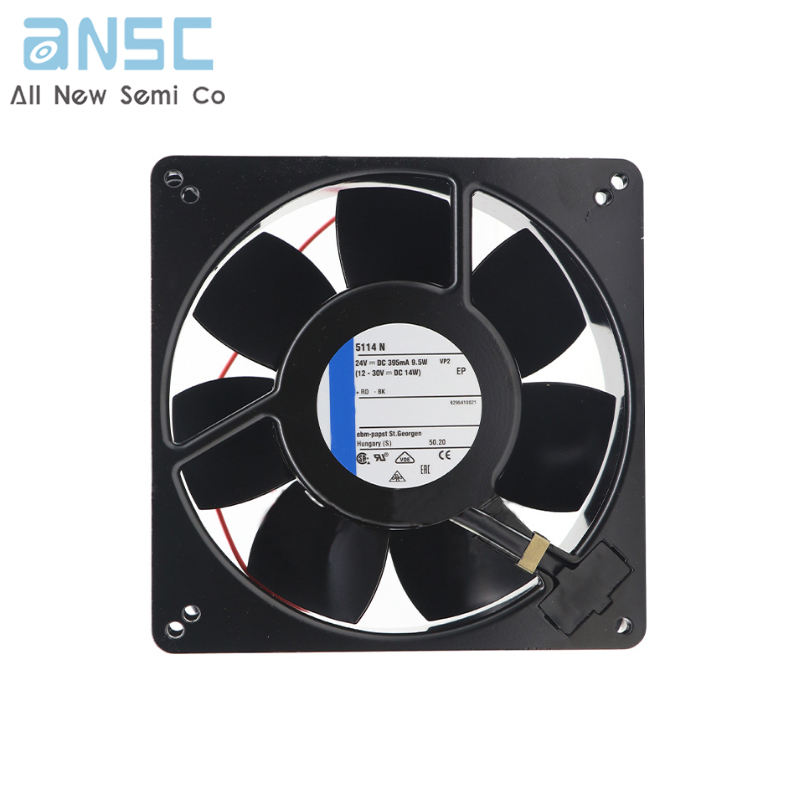

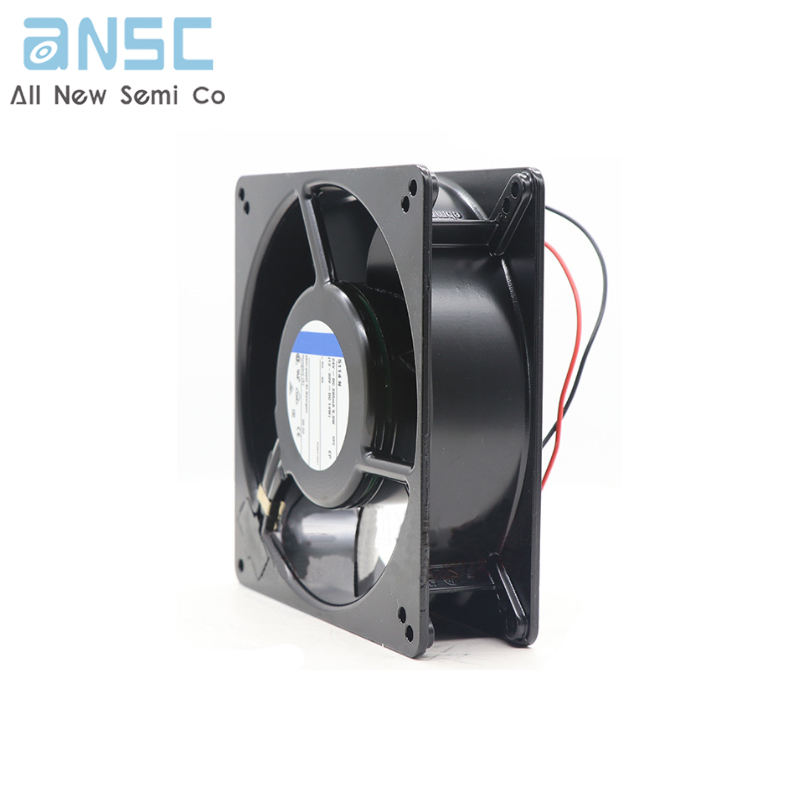

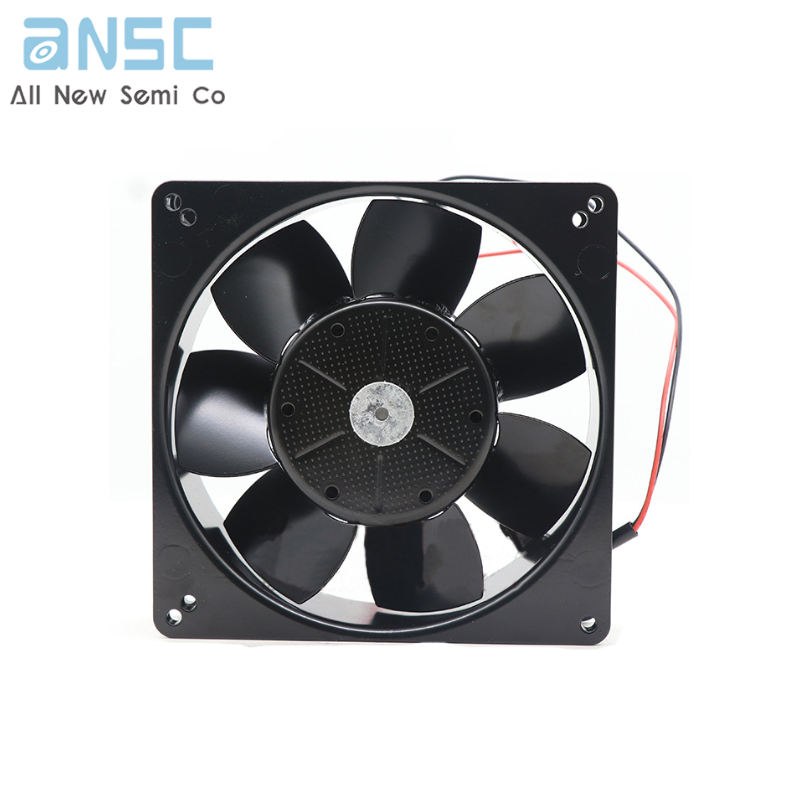

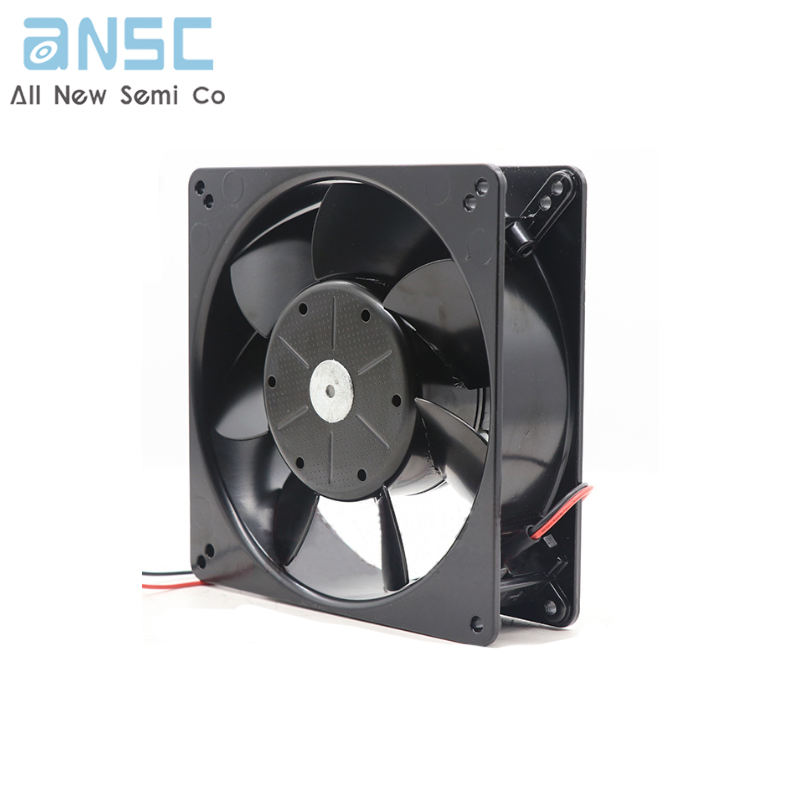

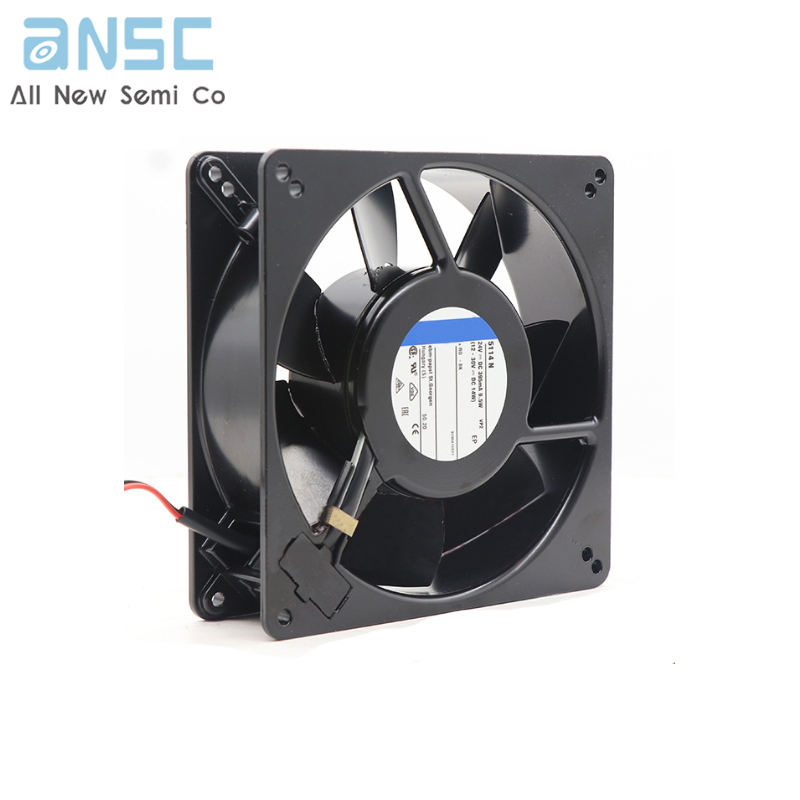

Actual image of the product
