Product Description
Type | Description |
|---|---|
| PART# | R2E250-AL05-16 |
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | R2E250 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 230VAC |
Size / Dimension | Round - 252mm Dia |
Width | 120.5mm |
Air Flow | - |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Motorized Impellers |
Features | Capacitor, Thermal Overload Protector (TOP) |
Noise | - |
Power (Watts) | 310W |
RPM | 3000 RPM |
Termination | 3 Wire Leads with Splice Terminals |
Ingress Protection | - |
Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
Approval Agency | CCC, CE, CSA, UL |
Current Rating (Amps) | 1.30A |
Voltage Range | - |
Material - Frame | - |
Material - Blade | Steel |
Base Product Number | R2E250 |

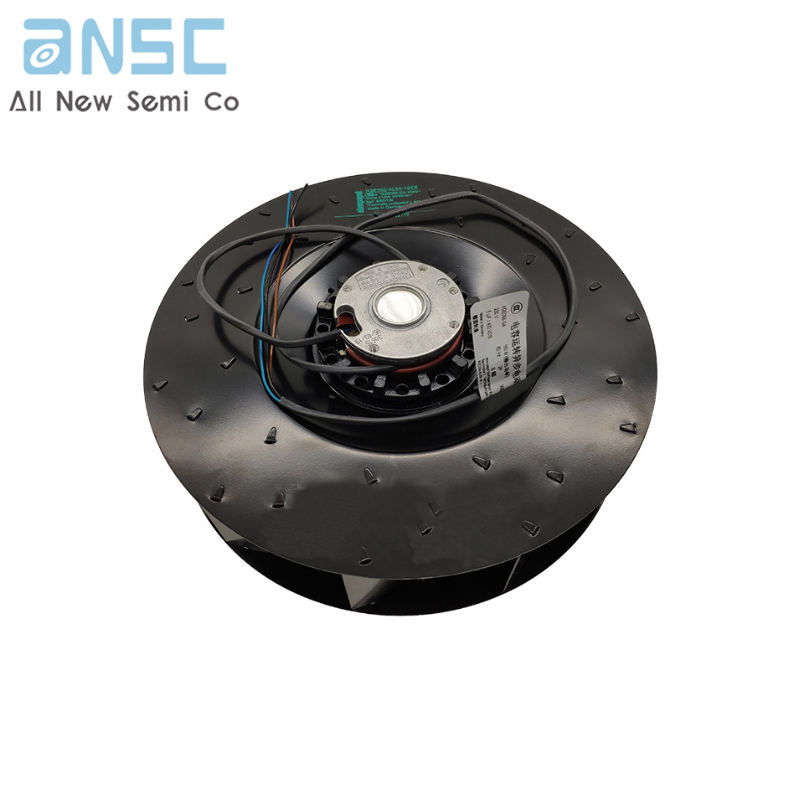

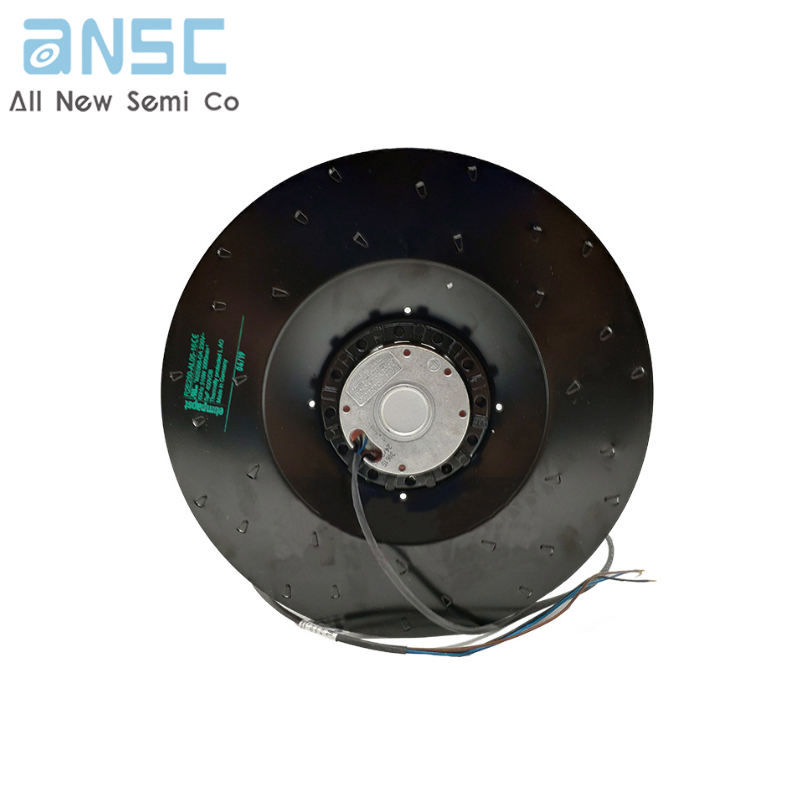

Actual image of the product
