Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 4300 |
Packaging | Bulk |
Part Status | Last Time Buy |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 119mm L x 119mm H |
Width | 32.00mm |
Air Flow | 100.1 CFM (2.80m³/min) |
Static Pressure | 0.281 in H2O (70.0 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 45.0dB(A) |
Power (Watts) | 4.8 W |
RPM | 2800 RPM |
Termination | 4 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 149°F (-20 ~ 65°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | - |
Current Rating (Amps) | 0.200A |
Voltage Range | 18 ~ 32VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | Varies Based on Temperature |
Base Product Number | 4314 |

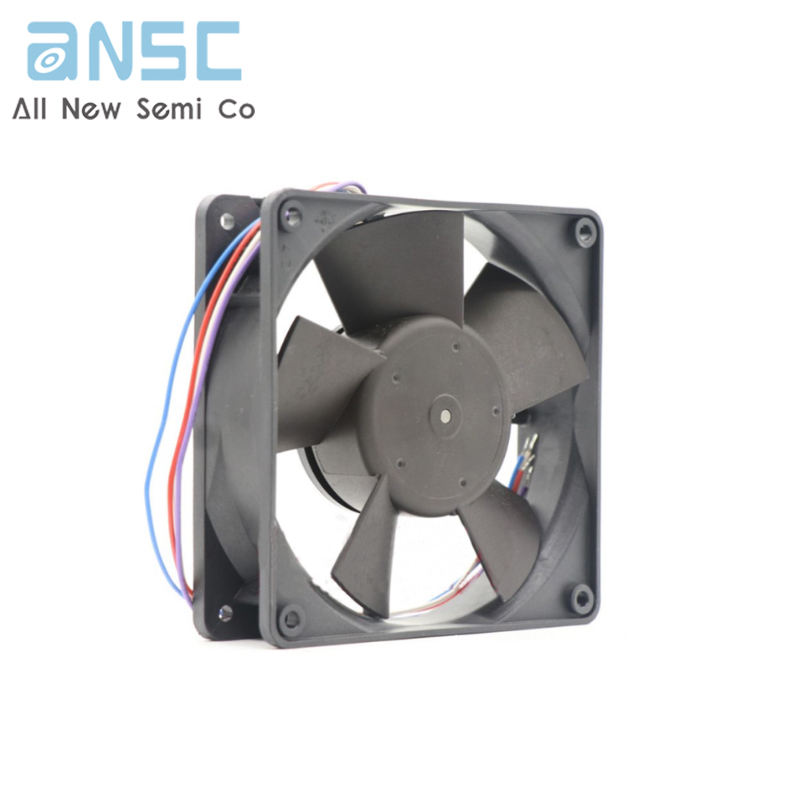

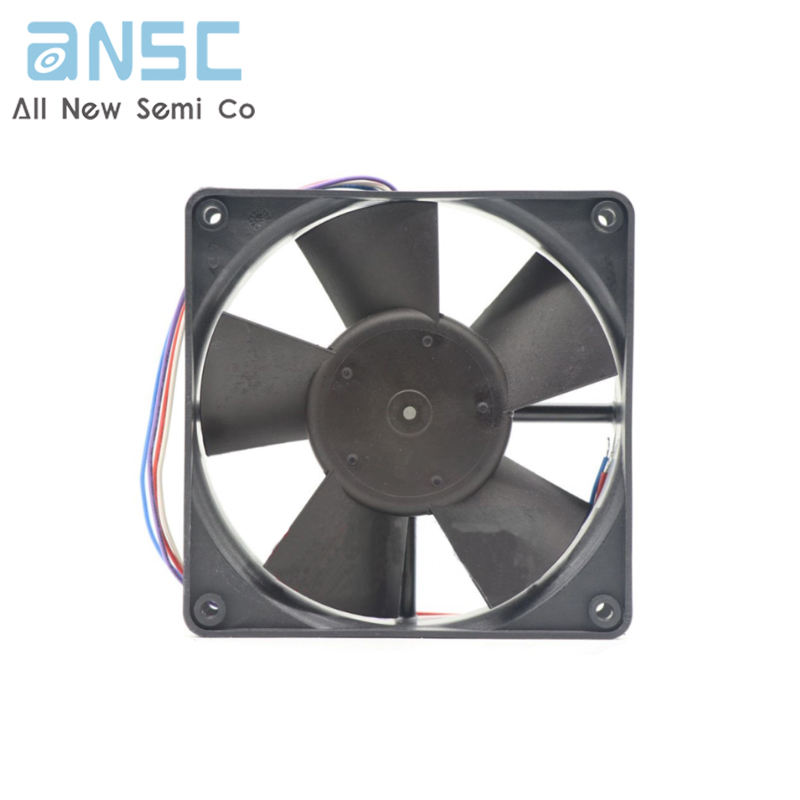

Actual image of the product
