Product Description
Type | Description |
|---|---|
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | 5600 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 230VAC |
Size / Dimension | Square - 135mm L x 135mm H |
Width | 38.00mm |
Air Flow | 138.0 CFM (3.86m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 46.0dB(A) |
Power (Watts) | 30.00W |
RPM | 2700 RPM |
Termination | 2 Terminals |
Ingress Protection | IP20 |
Operating Temperature | -31 ~ 158°F (-35 ~ 70°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 1.8 lbs (816.5 g) |
Current Rating (Amps) | - |
Voltage Range | - |
Material - Frame | Metal |
Material - Blade | Metal |
Lifetime @ Temp. | 45000 Hrs @ 40°C |
Base Product Number | 5656 |

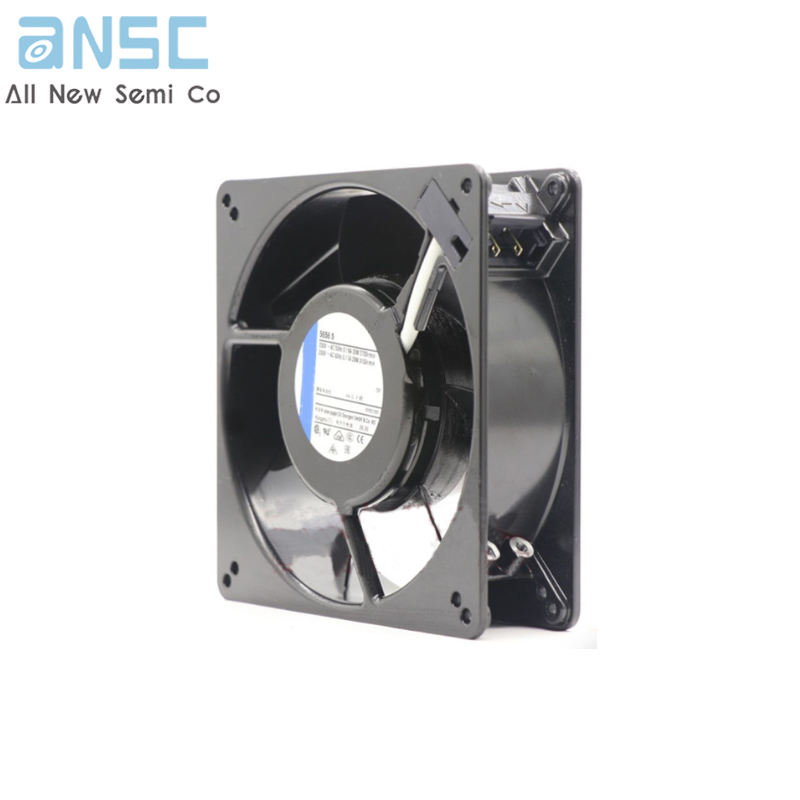

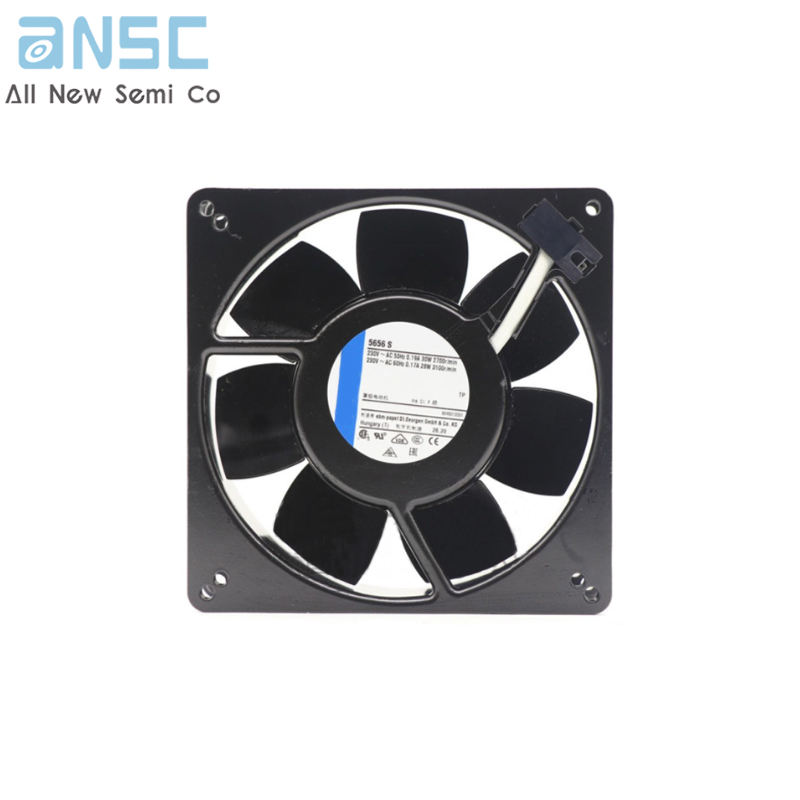

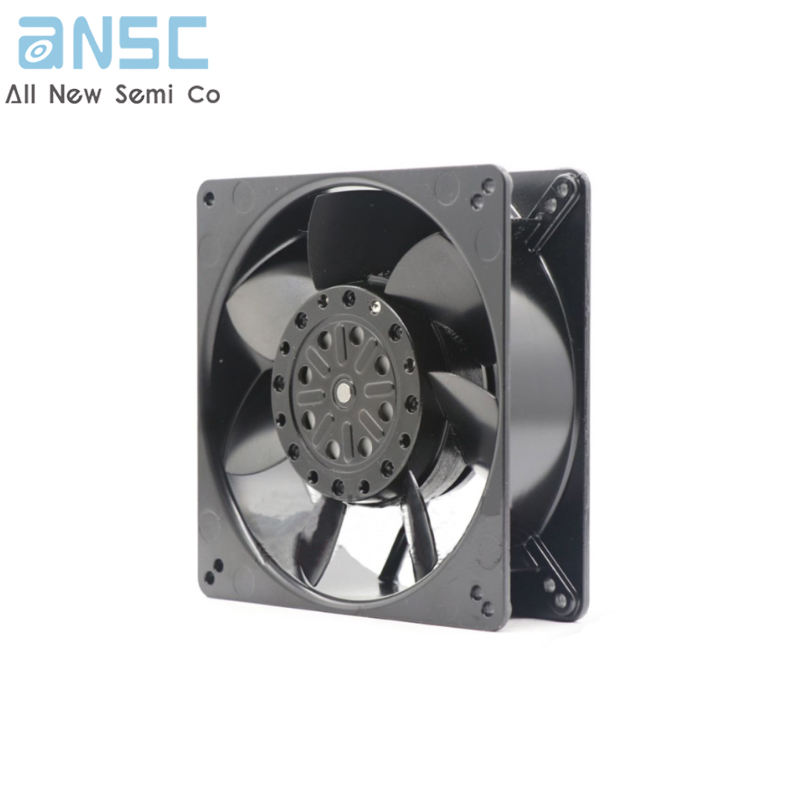

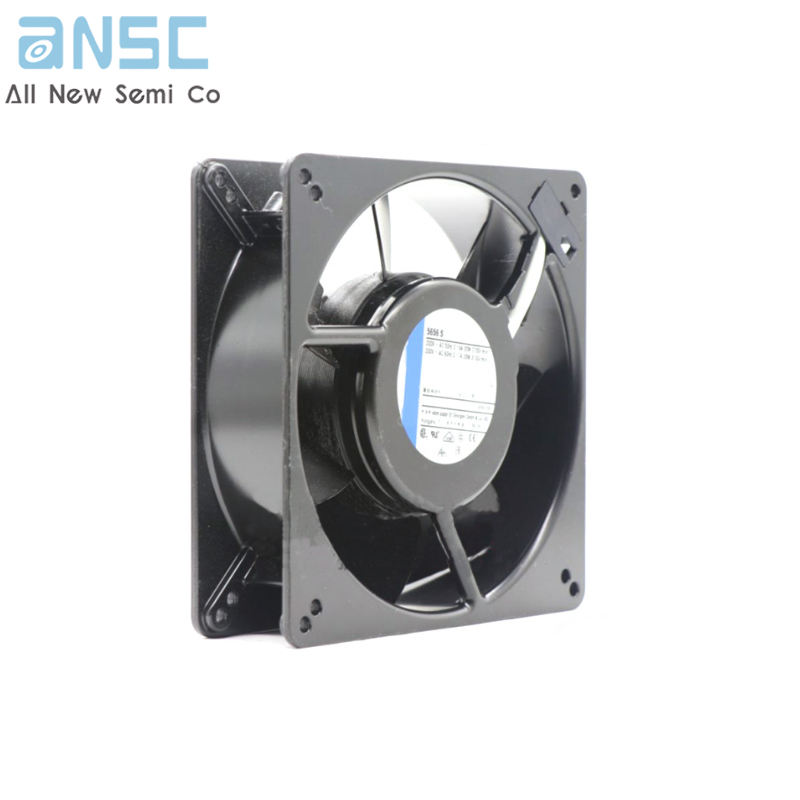

Actual image of the product
