Product Description
| Type | Description |
| PART# | 8314HR |
| Category | Fans, Blowers, Thermal Management |
| Fans | |
| DC Brushless Fans (BLDC) | |
| Mfr | / |
| Series | 8300 |
| Packaging | Bulk |
| Part Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 32.00mm |
| Air Flow | 47.1 CFM (1.32m³/min) |
| Static Pressure | - |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Noise | 48.0dB(A) |
| Power (Watts) | 6 W |
| RPM | 5000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Approval Agency | - |
| Current Rating (Amps) | - |
| Voltage Range | 12 ~ 28VDC |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Lifetime @ Temp. | 55000 Hrs @ 40°C |
| Base Product Number | 8314 |

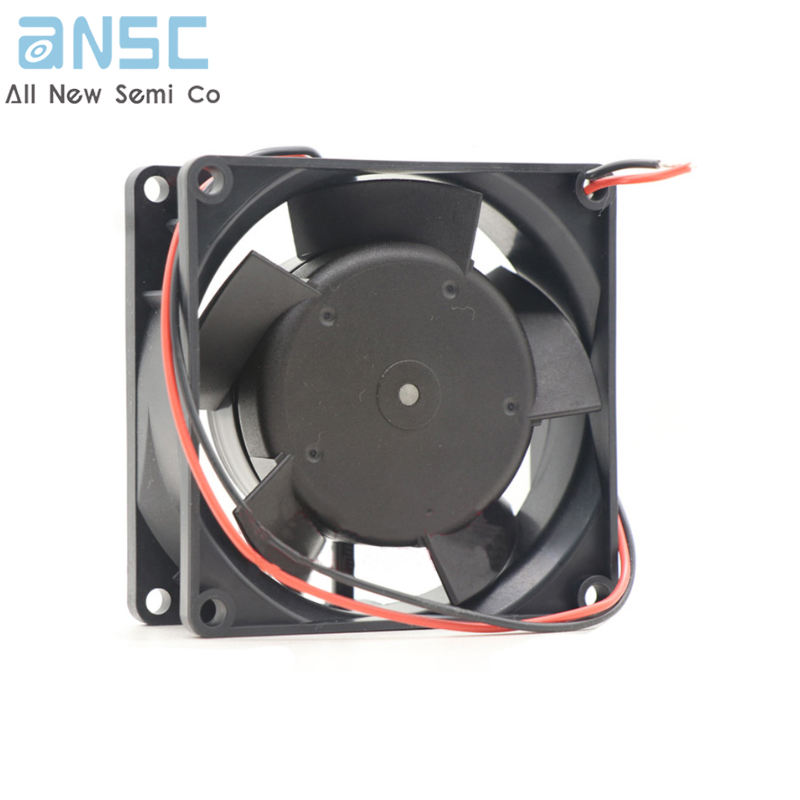

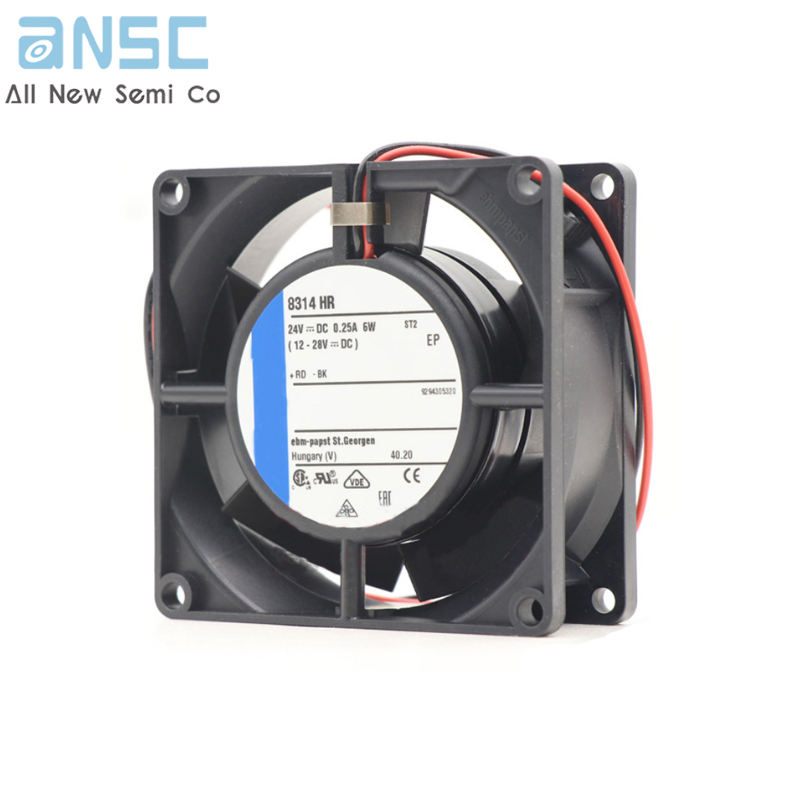

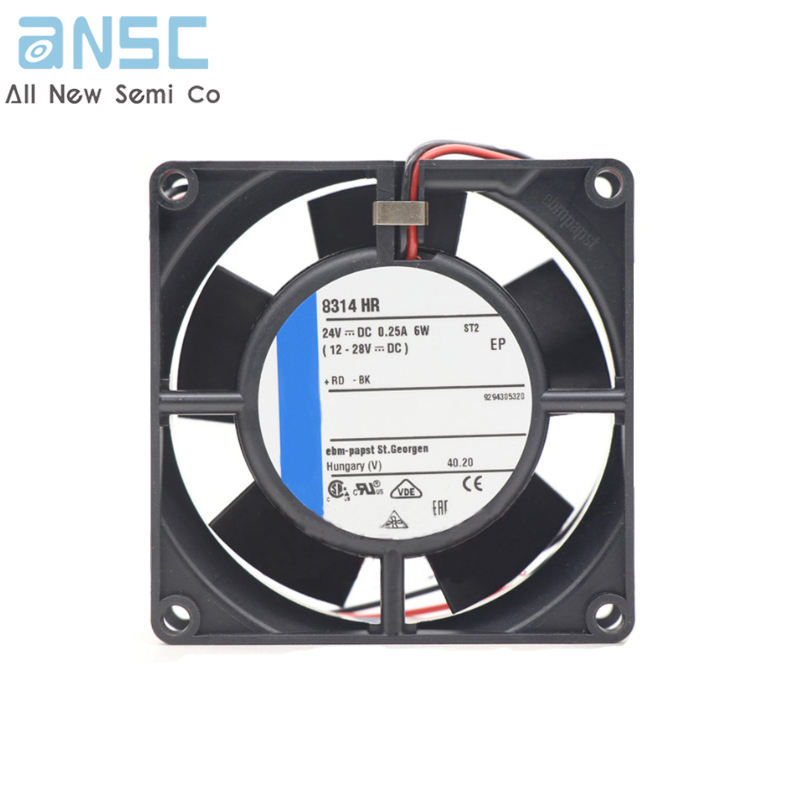

Actual image of the product
