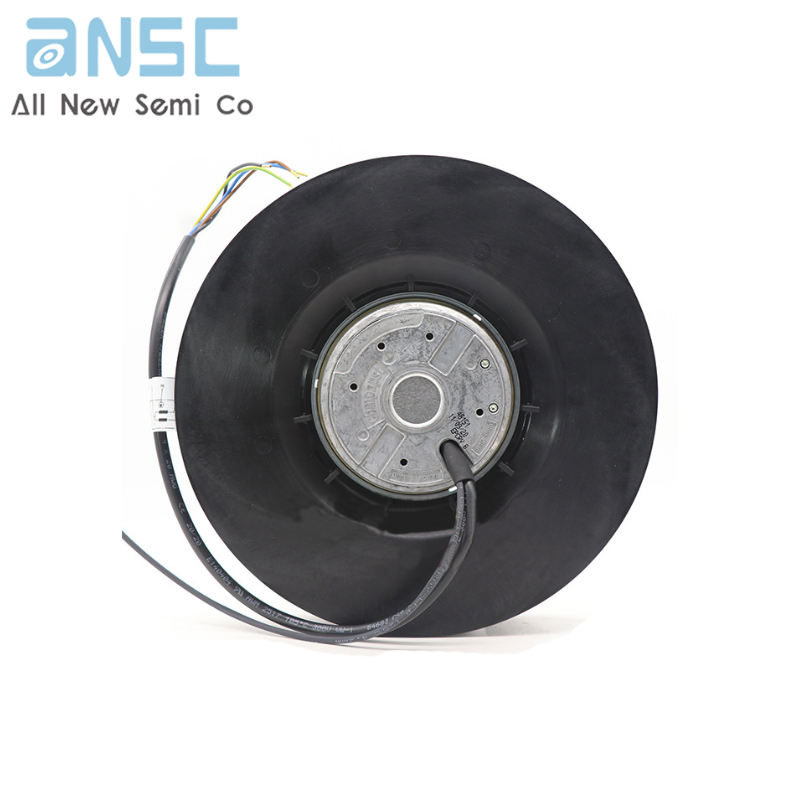

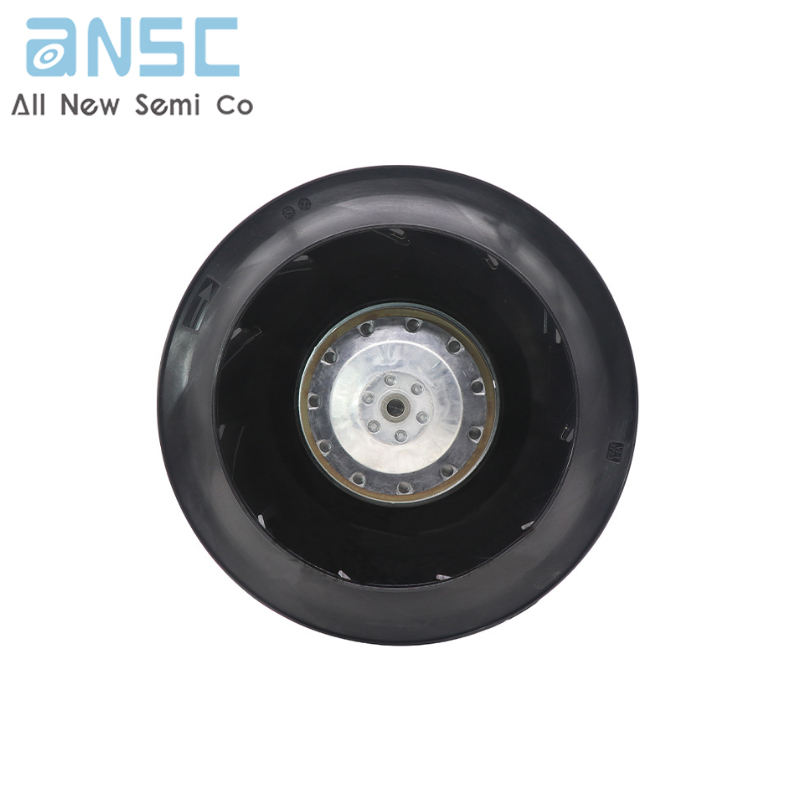

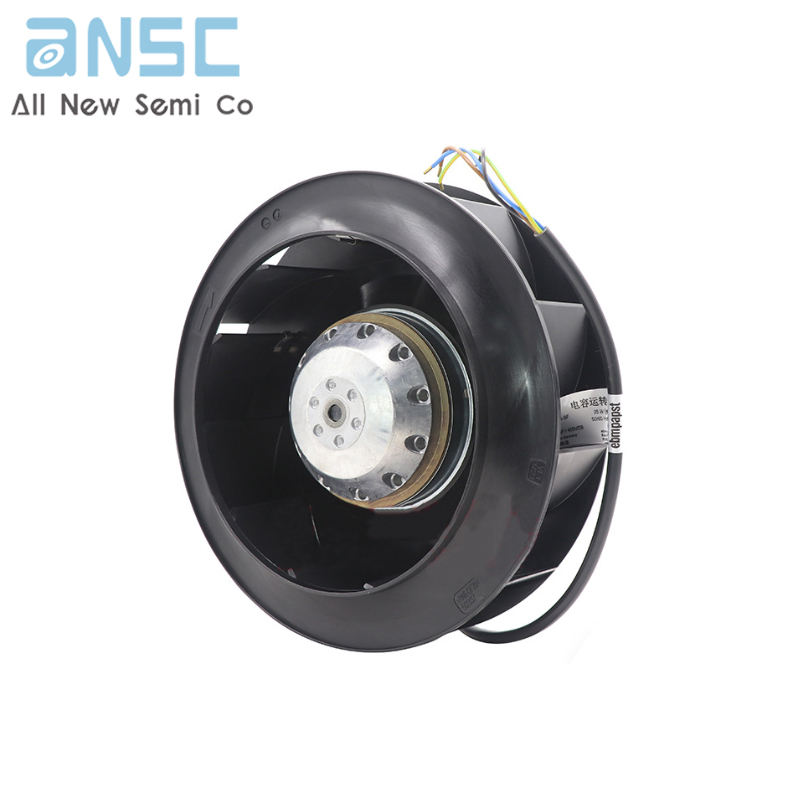

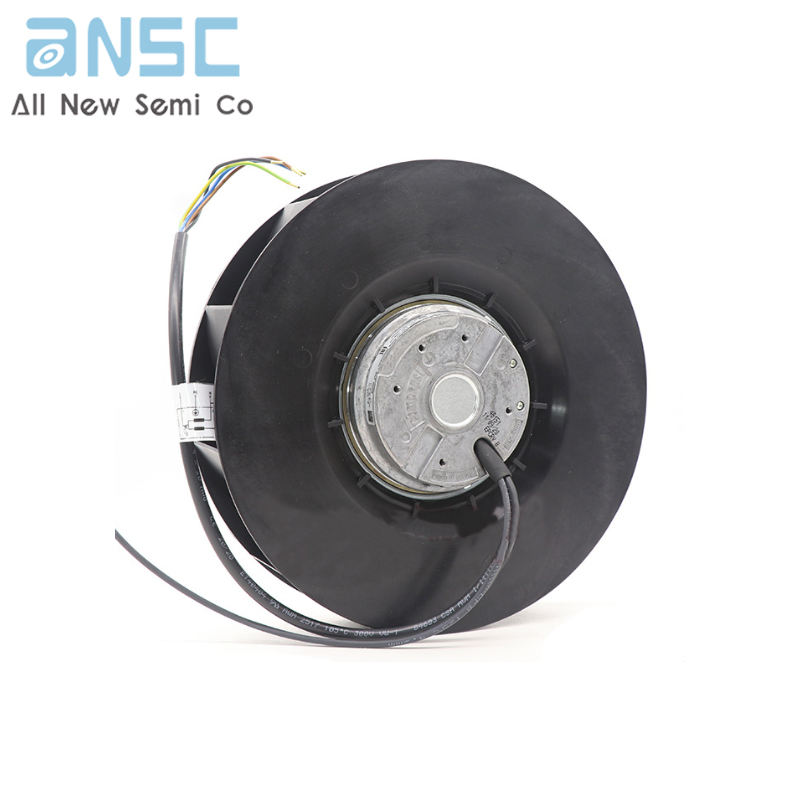

| Part# | R2E220-AA40-71 |
| Category | Fans, Blowers, Thermal Management Fans AC Fans |
| Manufacturer | / |
| Series | R2E220 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Voltage - Rated | 230VAC |
| Size / Dimension | Round - 221.4mm Dia |
| Width | 71.00mm |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Power (Watts) | 90.0W |
| RPM | 2700 RPM |
| Termination | 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals |
| Ingress Protection | IP44 |
| Operating Temperature | -13 ~ 104°F (-25 ~ 40°C) |
| Approval Agency | CCC, CE, CSA, EAC, UL |
| Current Rating (Amps) | 0.400A |
| Material - Blade | Polyamide (PA6), Nylon 6, Fiberglass Reinforced |
| Base Product Number | R2E220 |
