Product Description
Type | Description |
|---|---|
| PART# | W2D300-CP02-30 |
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | W2D300 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 230VAC/400VAC |
Size / Dimension | Round - 397mm Dia |
Width | 104.8mm |
Air Flow | - |
Static Pressure | 0.502 in H2O (125.0 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial, 3 Phase |
Features | Dual Voltage |
Noise | - |
Power (Watts) | 300W |
RPM | 2750 RPM |
Termination | 7 Wire Leads |
Ingress Protection | IP44 |
Operating Temperature | -13 ~ 104°F (-25 ~ 40°C) |
Approval Agency | CE |
Weight | - |
Current Rating (Amps) | 0.840A |
Voltage Range | - |
Material - Frame | Steel |
Material - Blade | Steel |
Lifetime @ Temp. | - |

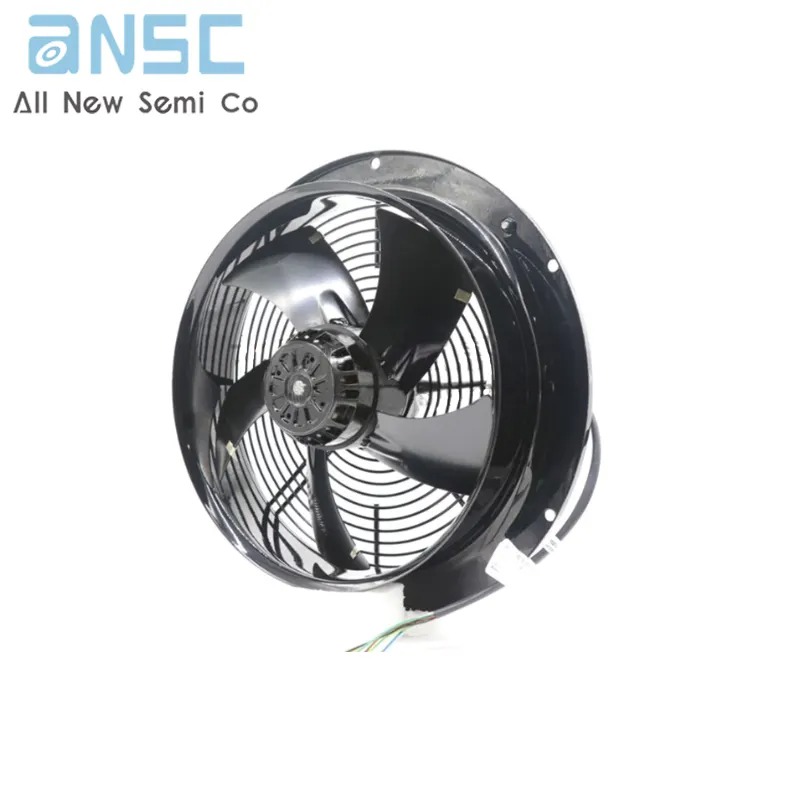

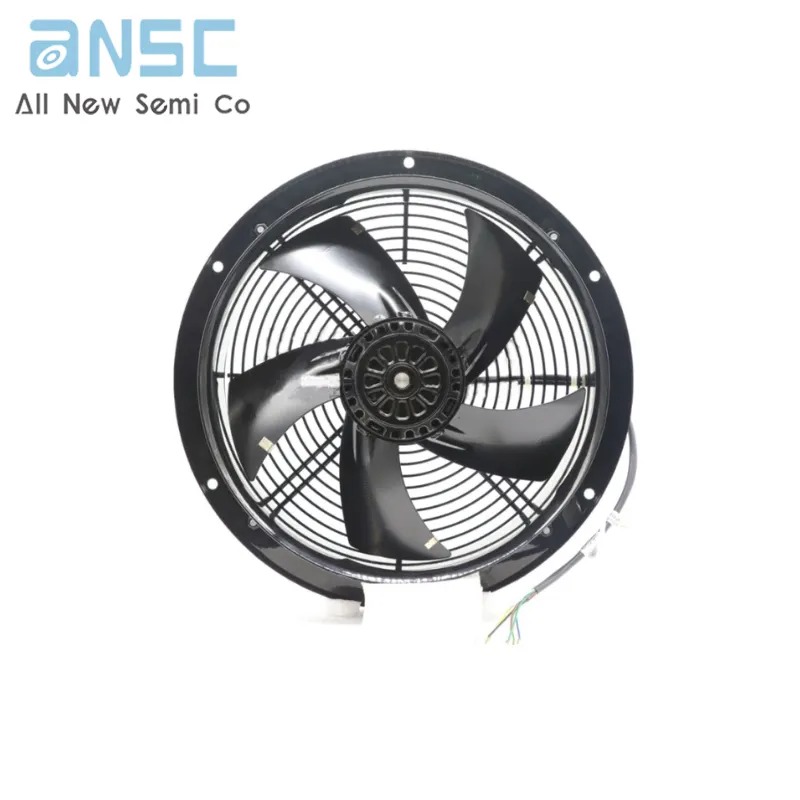

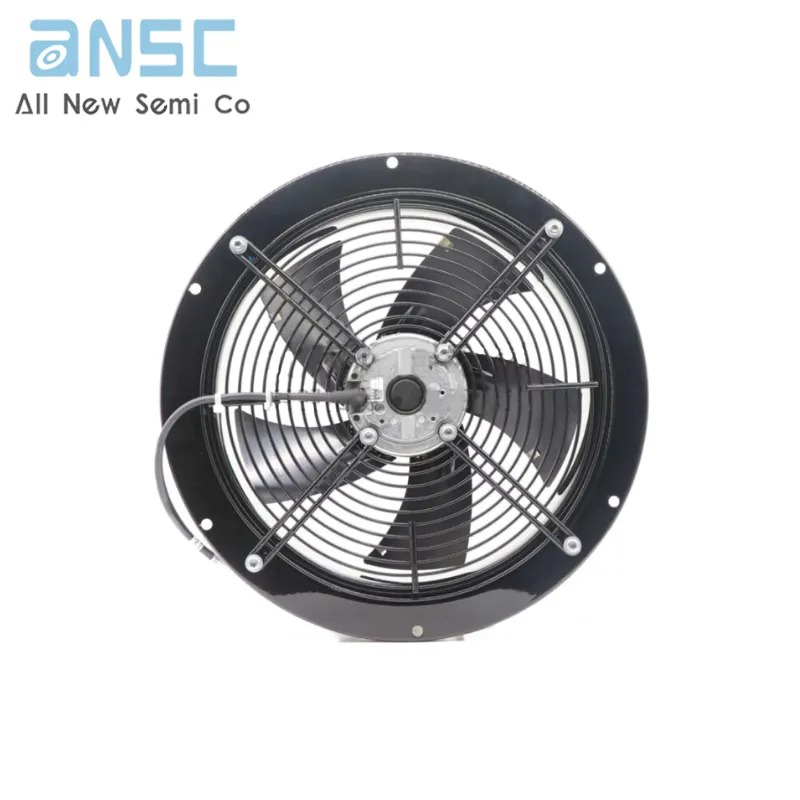

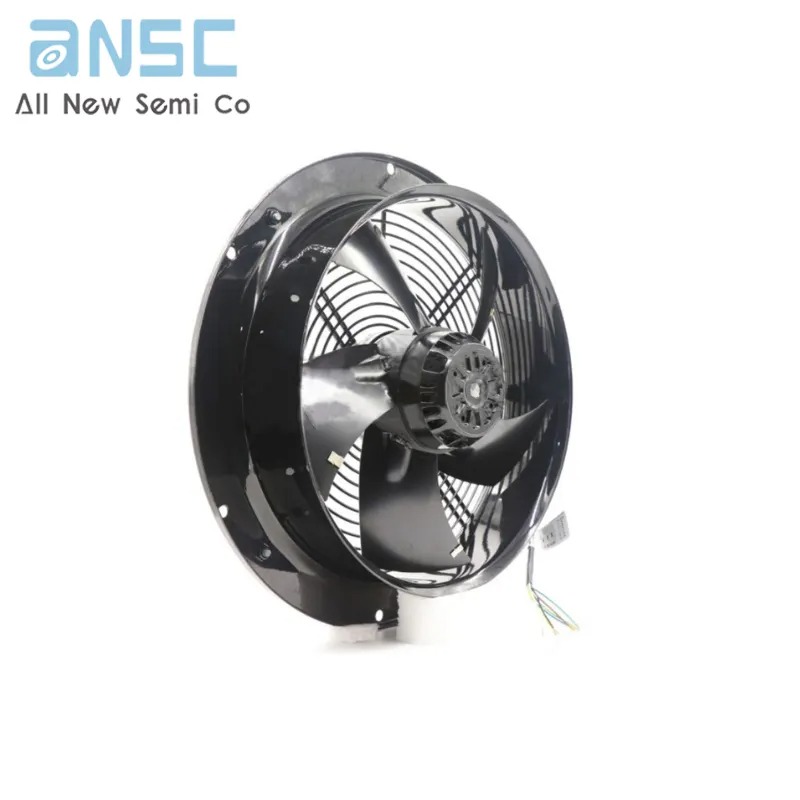

Actual image of the product
