Product Description
Type | Description |
|---|---|
PART# | 618JH |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 600J |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 48VDC |

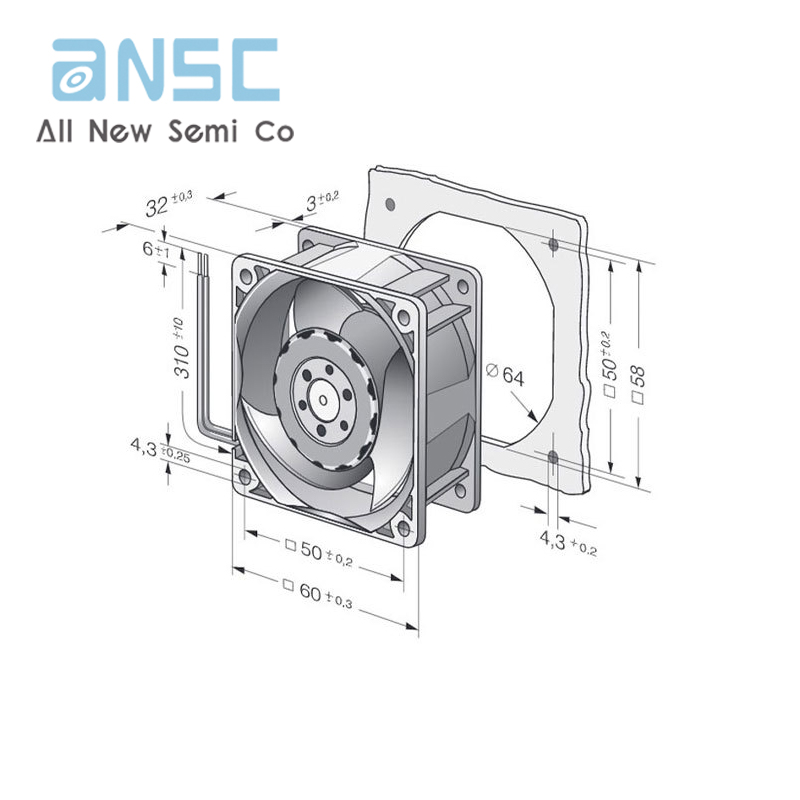

Size / Dimension | Square - 60mm L x 60mm H |
Width | 32.00mm |
Air Flow | 41.2 CFM (1.15m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | Locked Rotor Protection |
Noise | 53.0dB(A) |
Power (Watts) | 7.7 W |
RPM | 11700 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
Approval Agency | CE |
Weight | 0.222 lb (100.7 g) |
Current Rating (Amps) | - |
Voltage Range | 36 ~ 56VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 57500 Hrs @ 40°C |
Base Product Number | 618J |

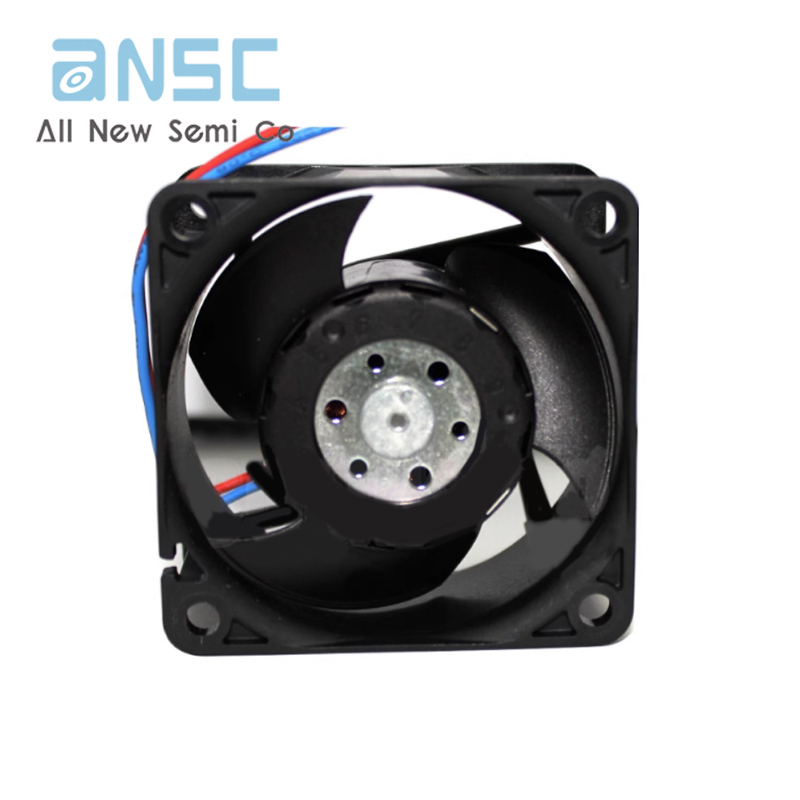

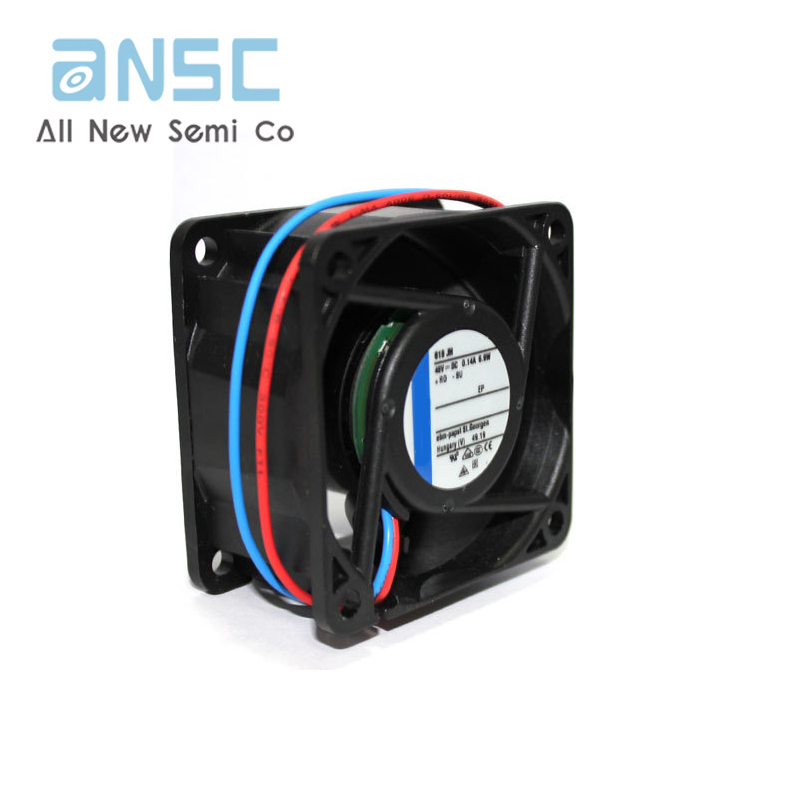

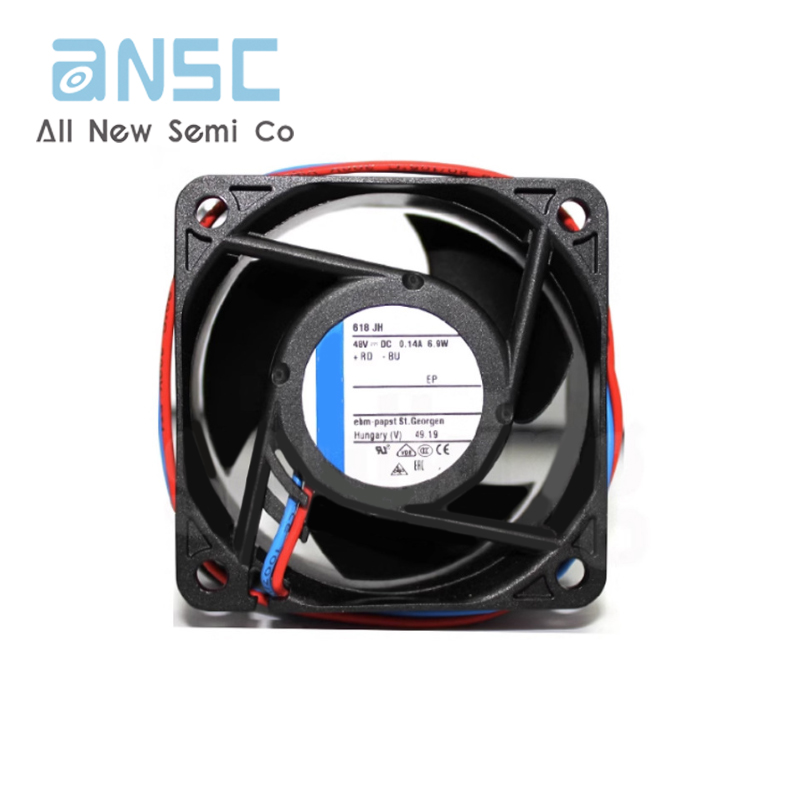

Actual image of the product
