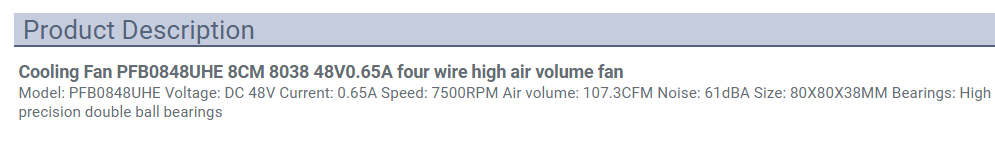

Product Description
Type | Description |
|---|---|
PART# | PFB0848UHE |
category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | PFB |
Packaging | Box |
Part Status | Obsolete |
Voltage - Rated | 48VDC |
Size / Dimension | Square - 80mm L x 80mm H |
Width | 38.00mm |
Air Flow | 107.3 CFM (3.00m³/min) |
Static Pressure | 1.368 in H2O (340.8 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | Locked Rotor Protection |
Noise | 61.0dB(A) |
Power (Watts) | 20.16 W |
RPM | 7500 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.452 lb (205.02 g) |
Current Rating (Amps) | 0.420A |
Voltage Range | 28 ~ 56VDC |
Material - Frame | Plastic |
Material - Blade | Plastic |
Lifetime @ Temp. | 50000 Hrs @ 40°C |
Base Product Number | PFB0848 |
Actual image of the product
