Product Descriptions

The TMP461 device is a high-accuracy, low-power remote temperature sensor monitor with a built-in local temperature sensor. The remote temperature sensors are typically low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes that are integral parts of microprocessors, microcontrollers, or field-programmable gate arrays (FPGAs). Temperature is represented as a 12-bit digital code for both local and remote sensors, giving a resolution of 0.0625°C. The two-wire serial interface accepts the SMBus communication protocol with up to nine different pin-programmable addresses.

Advanced features [such as series resistance cancellation, programmable nonideality factor (ηfactor), programmable offset, programmable temperature limits, and a programmable digital filter] are combined to provide a robust thermal monitoring solution with improved accuracy and noise immunity.

The TMP461 is ideal for multi-location, high-accuracy temperature measurements in a variety of communication, computing, instrumentation, and industrial applications. The device is specified for operation over a supply voltage range of 1.7 V to 3.6 V, and a temperature range of –40°C to 125°C.

Product Features

• Remote Diode Temperature Sensor Accuracy: ±0.75°C

• Local Temperature Sensor Accuracy: ±1°C

• Resolution for Local and Remote Channels: 0.0625°C

• Supply and Logic Voltage Range: 1.7 V to 3.6 V

• 35-µA Operating Current (1 SPS), 3-µA Shutdown Current

• Series Resistance Cancellation

• η-Factor and Offset Correction

• Programmable Digital Filter

• Diode Fault Detection

• Two-Wire and SMBus™ Serial Interface Compatible with Pin-Programmable Address

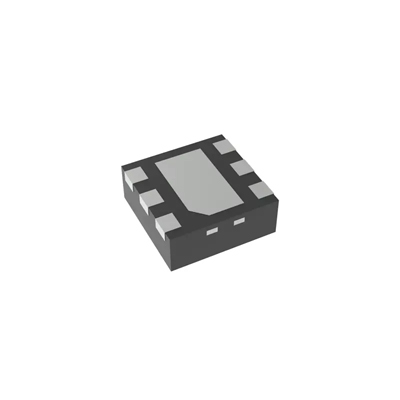

• 10-Lead WQFN Package

Product Applications

• Processor Temperature Monitoring

• Telecommunication Equipment

• Servers and Personal Computers

• Precision Instruments

• Test Equipment

• Smart Batteries

• Embedded Applications

• LED Lighting Thermal Control
