Product Details
DESCRIPTION The BRT11, BRT12, and BRT13 product family consists of AC optocouplers non-zero voltage detectors consisting of two electrically insulated lateral power ICs which integrate a thyristor system, a photo detector and noise suppression at the output and an IR GaAs diode input. FEATURES • ITRMS = 300 mA • High static dV/dt < 10 000 V/μs • Electrically insulated between input and output circuit • Microcomputer compatible - very low trigger current • Trigger current - (IFT < 1.2 mA) BRT12F - (IFT < 2 mA) BRT11H, BRT12H, BRT13H - (IFT < 3 mA) BRT12M, BRT13M • Non-zero voltage detectors high input sensitivity APPLICATIONS • Industrial controls • Office equipment • Consumer appliances AGENCY APPROVALS • UL / cUL 1577 • DIN EN 60747-5-5 (VDE 0884-5), available with option 1 |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - BRT13H |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Triac, SCR Output Optoisolators | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 800 V |
| Static dV/dt (Min) | 10kV/µs |
| Current - LED Trigger (Ift) (Max) | 2mA |
| Current - On State (It (RMS)) (Max) | 300 mA |
| Current - Hold (Ih) | 500µA |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Current - DC Forward (If) (Max) | 20 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | CQC, UL |
| Base Product Number | BRT13 |

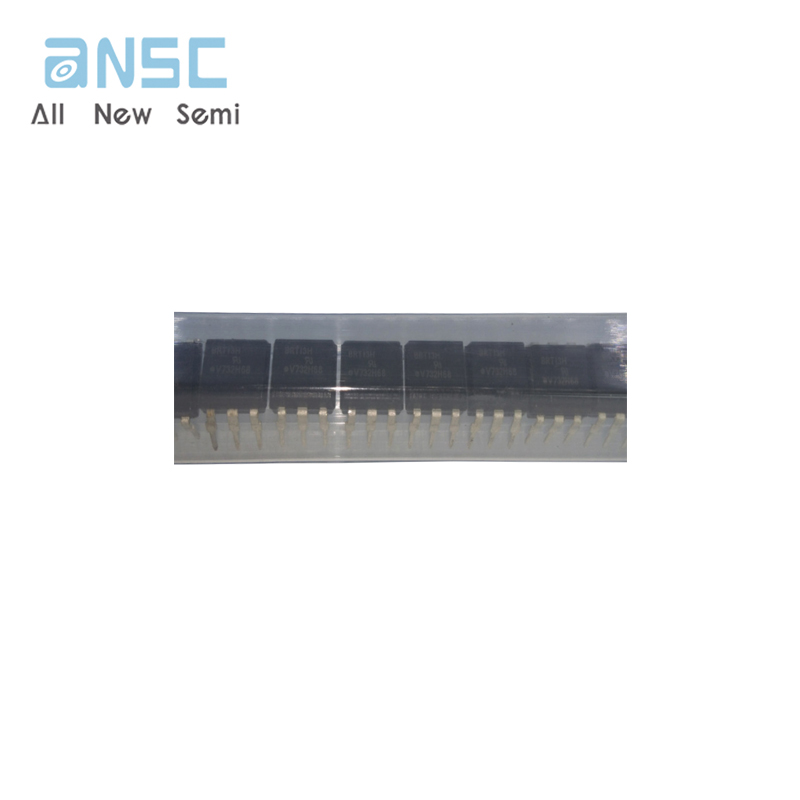

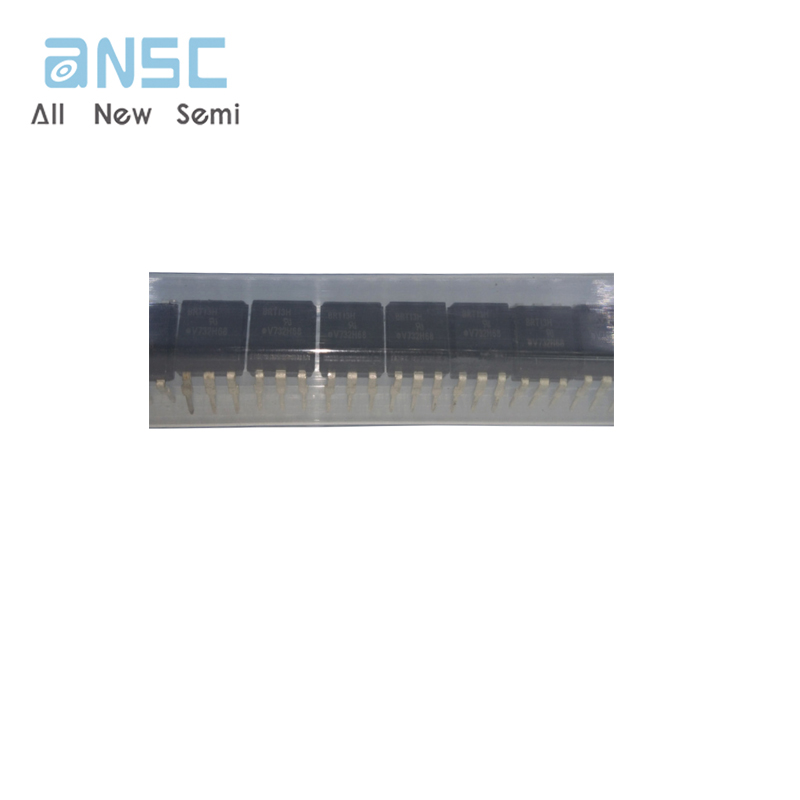

Product Photos

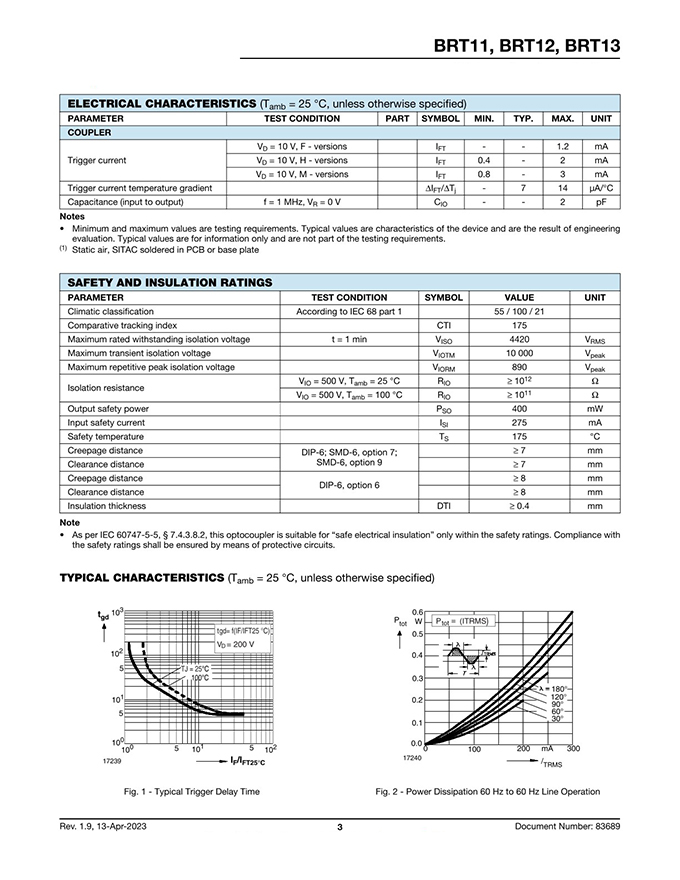

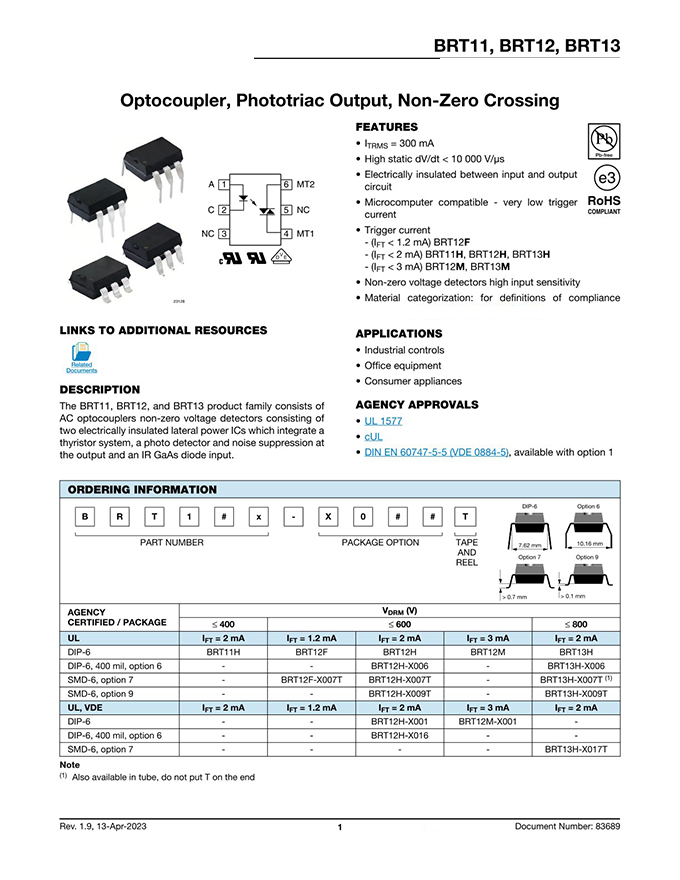

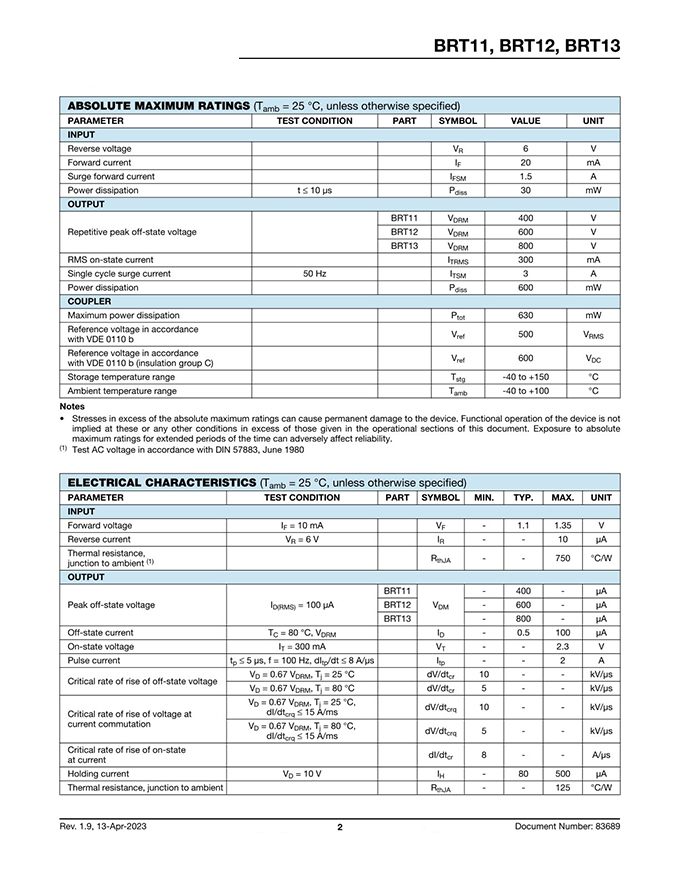

Product datasheet
