Products Features

1.1. Special features

 General purpose series

 Not supposed to use in AC RC step-down powered or high EFT requirement applications.

   PADAUK assumes no liability if such kind of applications can not pass the safety regulation tests.

 Operating temperature range: -40°C ~ 85°C

1.2. System Features

 One hardware 16-bit timer

 One hardware 8-bit timer with PWM generation

 One general purpose comparator

 Support fast wake-up

 Every IO pin can be configured to enable wake-up function

 6 IO pins with optional drive/sink current and pull-high resistor

 Clock sources: internal high RC oscillator and internal low RC oscillator

 Eight levels of LVR: 4.0V, 3.5V, 3.0V, 2.75V, 2.5V, 2.2V, 2.0V, 1.8V

 One external interrupt pin

1.3. CPU Features

 One processing unit operating mode

 79 Powerful instructions

 Most instructions are 1T execution cycle

 Programmable stack pointer and adjustable stack level

 Direct and indirect addressing modes for data access. Data memories are available for use as an index pointer of Indirect addressing mode

 IO space and memory space are independent

Specifications

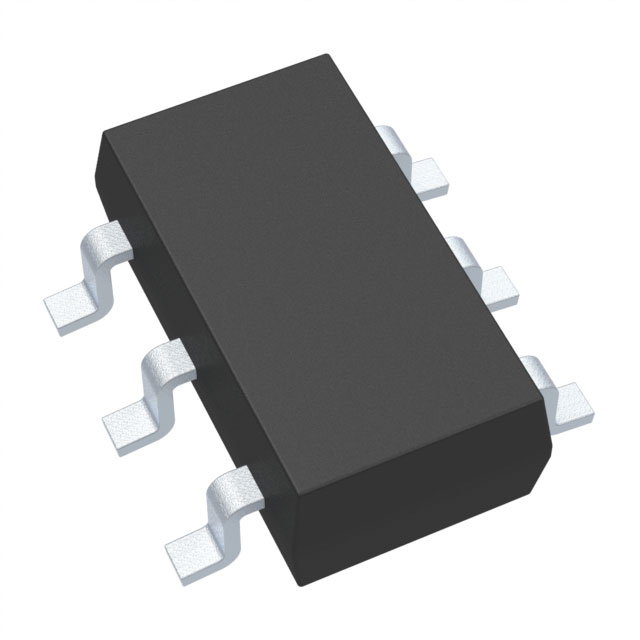

Actual product photos
