Product Descriptions

SC92F84A3/84A2/84A1 (hereinafter referred to as SC92F84AX) is an enhanced high-speed 1T 8051 core industrial grade integrated touch button function Flash microcontroller, with an instruction system fully compatible with the traditional 8051 product series.

SC92F84AX has a built-in 23 channel low-power dual-mode capacitive touch circuit, which can be operated in STOP mode. The SC92F84AX also integrates 16Kbytes Flash ROM, 1 Kbytes SRAM, 128 bytes EEPROM, up to 26 GP I/Os, 13 IOs with external interrupts, 3 16 bit timers, 11 12 bit high-precision ADCs, 6 independent 10 bit PWM, internal 1 percent high-precision high-frequency 12/6/2MHz oscillator and 4 percent precision low-frequency 128K oscillator, external crystal oscillator, one UART, and one UART/SPI/IC three choice one communication port SSI. To improve reliability and simplify customer circuits, the SC92F84AX also integrates four levels of optional voltages internally High reliability circuits such as LVR, 2.4V reference ADC, and reference voltage. SC92F84AX has excellent anti-interference performance and excellent touch button performance, making it very suitable for touch buttons and main control applications in various usage scenarios, such as large and small smart appliances and smart homes, the Internet of Things, wireless communication, game consoles and other industrial control and consumer application fields.

Products Features

Working voltage: 2.4V~5.5V

Working temperature:- 40 ~ 85℃

Encapsulation:

SC92F84A3 (SOP28/TSSOP28)

SC92F84A2 (SOP20/TSSOP20)

SC92F84A1 (SOP16)

Kernel: 1T 8051

Flash ROM: 16 Kbytes Flash ROM (MOVC disable addressing)

0000H~00FFH) can be repeatedly written 10000 times

IAP： The code options are 0K, 0.5K, 1K, or 16K

EEPROM：128 bytes， No need to erase, 100000 writes, with a storage life of over 10 years

SRAM： Internal 256 bytes+External 768 bytes

Specifications

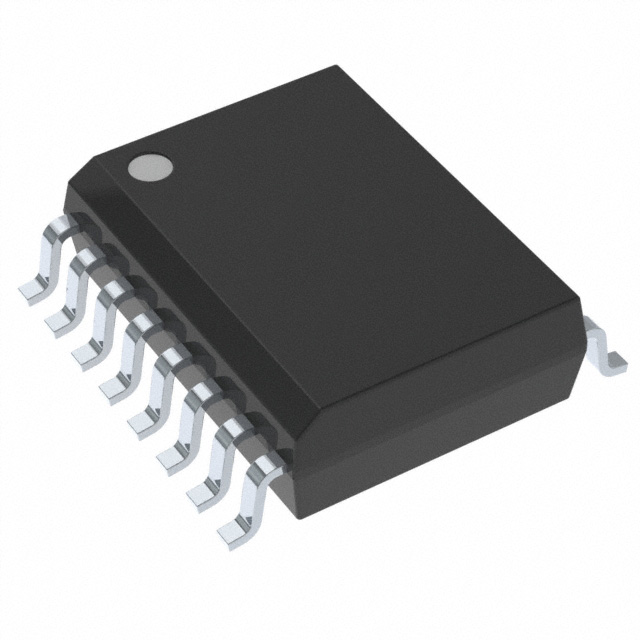

Actual product photos
