Product Descriptions

SC95F7617/7616/7615/7613 (hereinafter referred to as SC95F761X) is a series of enhanced 1T 8051 core industrial grade Flash microcontrollers, with instruction set backward compatible with the standard 80C51 series.

SC95F761X has a super fast 1T8051 CPU core with a running frequency of up to 32MHz. At the same operating frequency, its execution speed is about twice that of other 1T8051 cores; The IC integrates hardware multipliers and dividers, as well as dual DPTR data pointers, to accelerate data computation and movement speed. The hardware multiplication and division algorithm does not occupy CPU cycles, and the operation is implemented by hardware, which is tens of times faster than software implemented multiplication and division methods; Dual DPTR data pointers can be used to accelerate data storage and movement.

The SC95F761X series has high performance and reliability, with a wide operating voltage of 2.0V~5.5V, an ultra wide operating temperature of -40 ℃~105 ℃, and strong,Capable of 6KV ESD and 4KV EFT. Adopting the industry-leading eFlash process, Flash writes>100000 times and can be stored for 100 years at room temperature.

SC95F761X series has a built-in low-power WDT watchdog timer, with 4 levels of optional voltage LVR low voltage reset function and system clock monitoring function,Capable of low power consumption in both operating and power-off modes. Normal working mode: Typically around 5V 5.2mA@32M .

Products Features

Working conditions

⚫  Wide voltage working range: 2.0V~5.5V

⚫  Industrial grade operating temperature:- 40℃ ~ +105℃.

Anti-interference ability

⚫  ESD 6KV

⚫  EFT 4KV

Packaging type

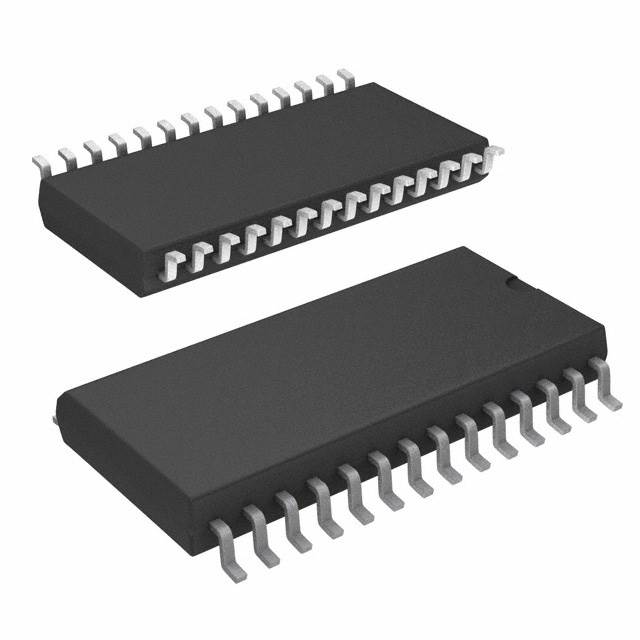

⚫  28 PIN:  SOP28 / TSSOP28

⚫  32 PIN:  LQFP32 (7X7) / QFN32 (5X5)

⚫  44 PIN:  LQFP44 (10X10)

⚫  48 PIN:  LQFP48 (7X7) / QFN48 (7X7)

CPU

⚫  Ultra high speed 1T 8051 core, instruction set fully compatible with 8051, execution speed about the same as others Twice the size of 1T 8051

⚫  Double Data Pointer (DPTRs)

Storage

⚫  64 Kbytes Flash ROM

◼  Divided into 128 sectors, each sector is 512 bytes

◼  Can be repeatedly written 100000 times

◼  Data can be stored for over 100 years at 25 ℃ environment

⚫  IAP (In Application Programming)： The range of IAP operations allowed by Flash can be set to 1/2/4/64K through the Code Option setting option

⚫  Secure encryption: can encrypt APROM and LDROM to ensure that program code cannot be read

⚫  BootLoader： Built in 1 Kbytes LDROM

⚫  Unique ID： 96 bits Unique ID， Unique identification code for storing ICs

⚫  SRAM：

◼  Internal 256 bytes on-chip direct access to RAM

◼  4 Kbytes external RAM+PWM&LCD RAM 80 bytes on-chip indirect access RAM (XRAM) read and write via MOVX instruction
