Product Descriptions

IP5508 is a multi-functional power management SOC for total solution on Power Bank. It also integrates with boost converter, lithium battery charging management and battery level indicators.

IP5508 is highly integrated with abundant functions, which makes the total solution size minimized and BOM costed down.

IP5508 requires only one inductor to achieve buck and boost functions, DC-DC converter works at 500KHz and can support low-cost inductors and capacitors.

The synchronous boost system of IP5508 provides rated 2.4A output current with conversion efficiency up to 93 PERCENT. When there is no load, it will automatically enter the standby state, and the static current will drop to less than 100uA.

IP5508’s switch charging system supplies 2A charging current with charging efficiency up to 92 PERCENT. According to the IC temperature and input voltage, IP5508 can intelligently adjust charging current.

IP5508 contains 14bits ADC, which can accurately measure battery’s voltage and current. The built-in coulomb meter algorithm of IP5508 can accurately obtain the battery power information.

IP5508 can support digital tube display and illuminator function.

The package of IP5508 is QNF32.

Product Features

 Switch buck charger and boost

 2.4A synchronous boost conversion

 Up to 93 PERCENT boost efficiency

 Up to 92 PERCENT charging efficiency

 Built-in power path management supports charging and discharging at the same time

 Supports line compensation

 Charge

 Adjusts charging current automatically to adapt to different load capacity adapters

 2A synchronous switch charging

 Supports 4.20V, 4.30V, 4.35V and 4.4V batteries

 Battery indicator

 Built-in 14bitsADC and accurate coulomb calculation method

 Support 5/4/3/2/1 LED power or digital tube display

 Support digital tube display, 1A/2A output port identification

 Supports selecting battery initial capacity by external PIN

 Supports self calibration of battery capacity

 Feature-rich

 Built-in illuminator driver

 Automatically load insertion and removal detection

 Low-power dissipation

 Intelligently identify the load and automatically enter standby

 Standby power consumption is less than 100 µA

 Simplified BOM

 Built-in power MOS, 1uH single inductor to achieve charge and discharge

 Built-in various digital tube drive circuits

 Multiple protection, high reliability

 Output over current, over voltage and short circuit protection

 Input over voltage protection

 Battery over charge, over discharge and over current protection

 Over temperature protection

 ESD 4KV ,Vin transient withstand up to 18V

 In-depth customization

 Flexible and low-cost customized program

 Package: QNF32 5mm*5mm

Product Applications

 Power Bank

 Mobile phones, tablets and other portable devices

 Hydrator/hand warmer

Specifications

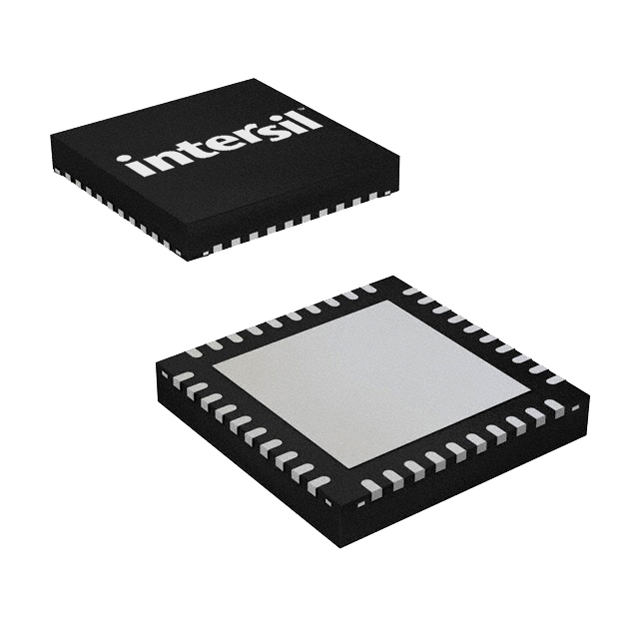

Actual product photos
