Product Description
ANSC PART# | ANSC- OP07CDR |
Part# | OP07CDR |
Type： | Integrated Circuits |
Manufactor | TI |
DC | new |

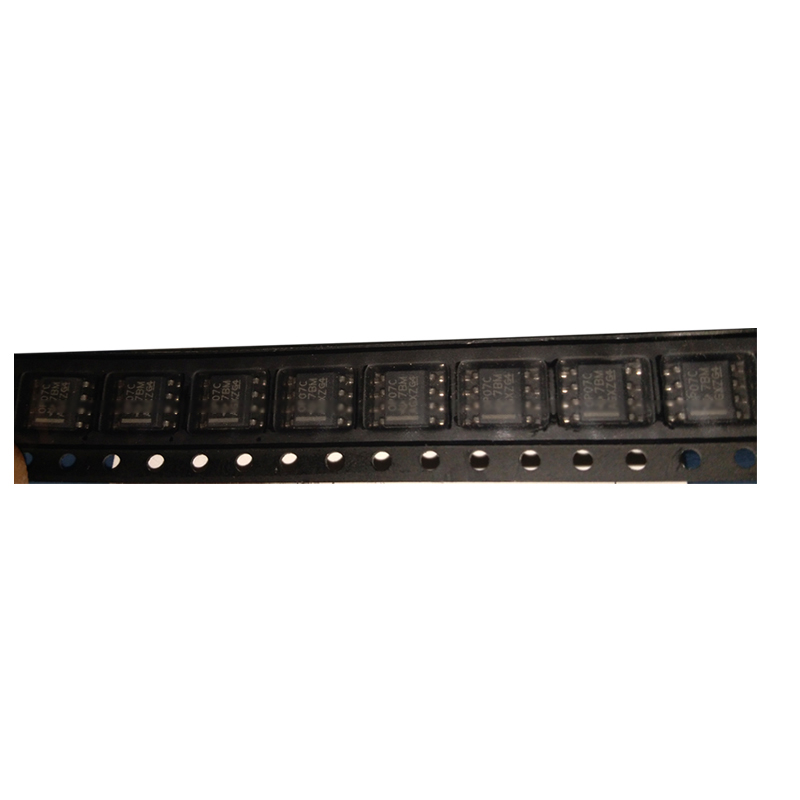

Actual image of the product
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Precision Amplifiers |
| RoHS: | Details |
| Number of Channels: | 1 Channel |
| GBP - Gain Bandwidth Product: | 600 kHz |
| SR - Slew Rate: | 300 mV/us |
| Vos - Input Offset Voltage: | 60 uV |
| Ib - Input Bias Current: | 1.8 nA |
| Supply Voltage - Max: | 18 V |
| Supply Voltage - Min: | 3 V |
| Operating Supply Current: | 2 mA |
| Output Current per Channel: | 1.2 mA |
| CMRR - Common Mode Rejection Ratio: | 120 dB |
| en - Input Voltage Noise Density: | 10.2 nV/sqrt Hz |
| Package / Case: | SOIC-8 |
| Mounting Style: | SMD/SMT |
| Shutdown: | No Shutdown |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Series: | OP07C |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Amplifier Type: | Low Offset Amplifier |
| Brand: | Texas Instruments |
| Dual Supply Voltage: | +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V |
| Height: | 1.58 mm |
| In - Input Noise Current Density: | 0.35 pA/sqrt Hz |
| Length: | 4.9 mm |
| Maximum Dual Supply Voltage: | +/- 18 V |
| Minimum Dual Supply Voltage: | +/- 3 V |
| Operating Supply Voltage: | 6 V to 36 V, +/- 3 V to +/- 18 V |
| Pd - Power Dissipation: | 150 mW |
| Product: | Precision Amplifiers |
| Product Type: | Precision Amplifiers |
| Factory Pack Quantity: | 2500 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single, Dual |
| Technology: | Bipolar |
| Voltage Gain dB: | 112.04 dB |
| Width: | 3.91 mm |
| Unit Weight: | 0.002561 oz |
Product datasheet
