Product Details
SN74HC132N Overview
Packed in 14-DIP (0.300, 7.62mm), the part is convenient for shipping overseas. Advanced packaging method Tube is used to provide high reliability. It works based on the NAND Gate logic principle. To ensure the part's full function, a voltage of 2V~6V is needed. Extended operating temperature around -40°C~85°C. The part is mounted in Through Hole. The high and low state of output current is 5.2mA 5.2mA. It comes from the 74HC series. There are 14 terminations totally. The part has 4 functions that significantly boost the user experience. It represents the HC/UH product family. If you are looking for device variants, try search with 74HC132. 14 pins are injected into the part body. Through Hole mounted, this logic device is widely used in many applications. Please refer to the datasheets for 14 pins functions. The part supports 2 inputs. In the quiescent state, the part has 2μA current flowing through it. The part bears a load capacitance of 50pF. It requires a minimal voltage of 2V to supply the device. The supply voltage should not exceed 6V. The device's output current is rated 5.2mA. 1 outputs are included in the device. The part can function from 5V. It features Schmitt Trigger. By its 4 channels, the part provides high quality logic output.
SN74HC132N Features
NAND Gate Logic Type
Operating Temperature: -40°C~85°C
HC/UH Family
Quiescent Current: 2μA
Output Current: 5.2mA
SN74HC132N Applications
There are a lot of Texas Instruments
SN74HC132N Gates and Inverters applications.
Air conditioner
Home theater
Electric grinding wheel
Electrical tools
Sewing machine
DVD
VCD
Computer
Television
Washing machine
Product Description
| ansc Part # | ANSC- SN74HC132N |
| Part# | SN74HC132N |
| Type： | Integrated Circuits (ICs) Logic |
| Manufactor | TI |
| DC | new |
| Package / Case | PDIP-14 |
| Supplier Device Package | Tube |
| Description | IC GATE NAND 4CH 2IN 14DIP |
Specifications
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Logic Gates and Inverters |
Mfr | Texas Instruments |
Series | 74HC |
Package | Tube |
Product Status | Active |
Logic Type | NAND Gate |
Number of Circuits | 4 |
Number of Inputs | 2 |
Features | Schmitt Trigger |
Voltage - Supply | 2V ~ 6V |
Current - Quiescent (Max) | 2 µA |
Current - Output High, Low | 5.2mA, 5.2mA |
Input Logic Level - Low | 0.3V ~ 1.2V |
Input Logic Level - High | 1.5V ~ 4.2V |
Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Through Hole |
Supplier Device Package | 14-PDIP |
Package / Case | 14-DIP (0.300", 7.62mm) |
Base Product Number | 74HC132 |

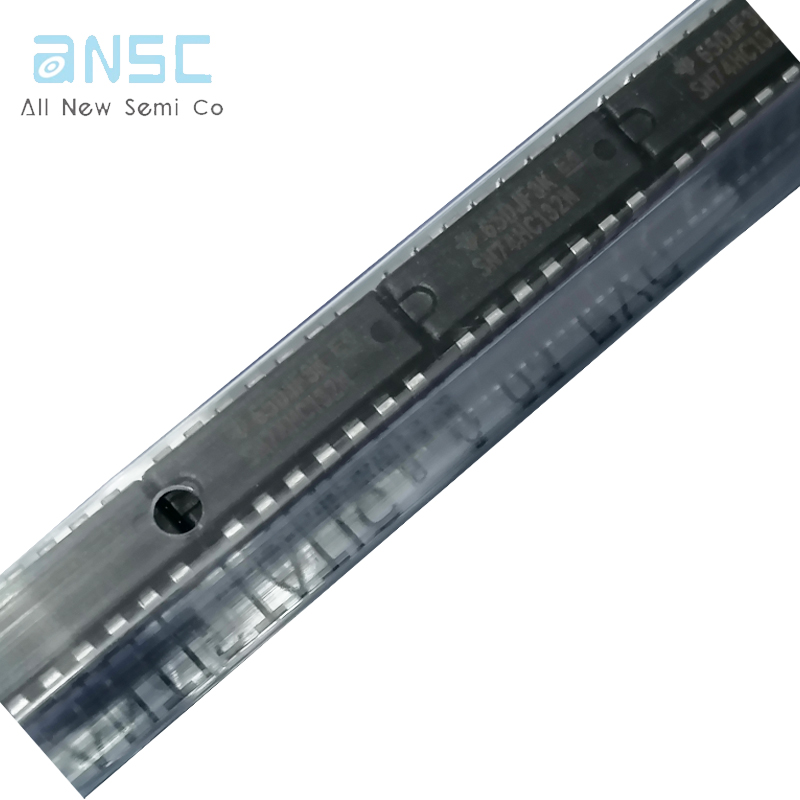

Actual image of the product

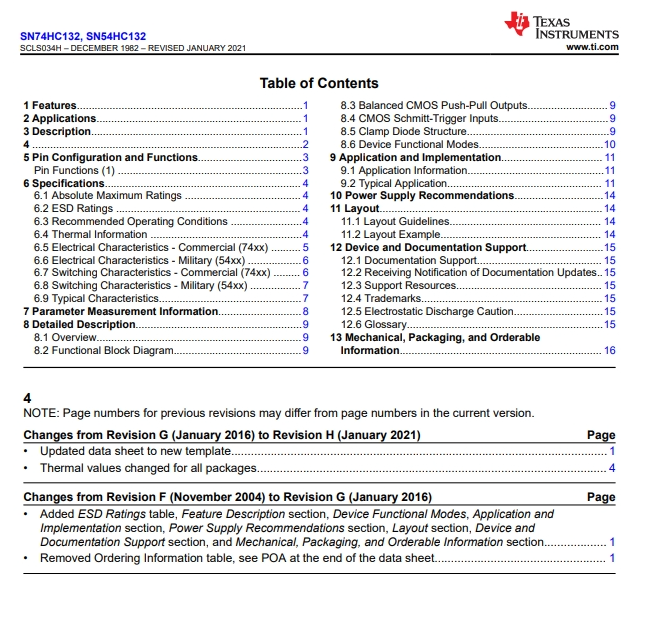

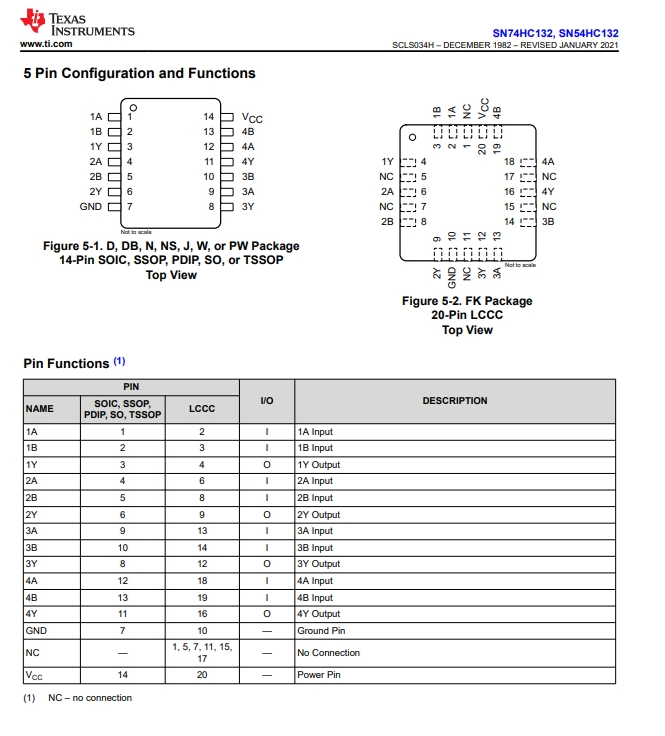

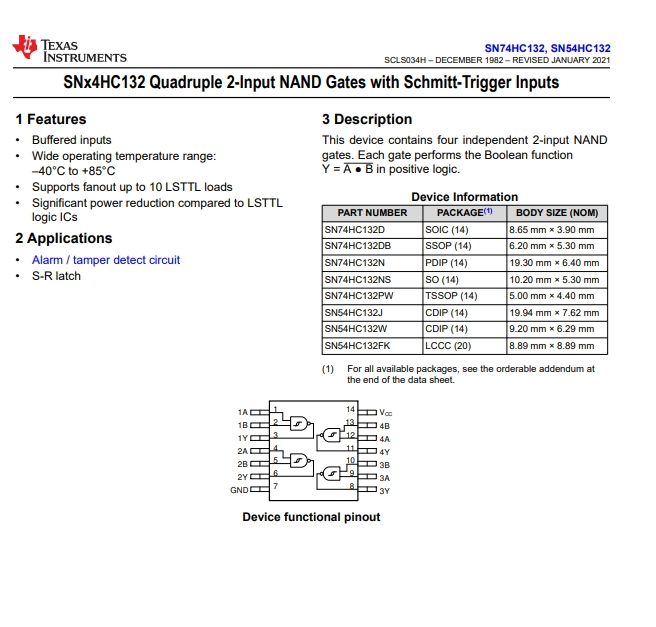

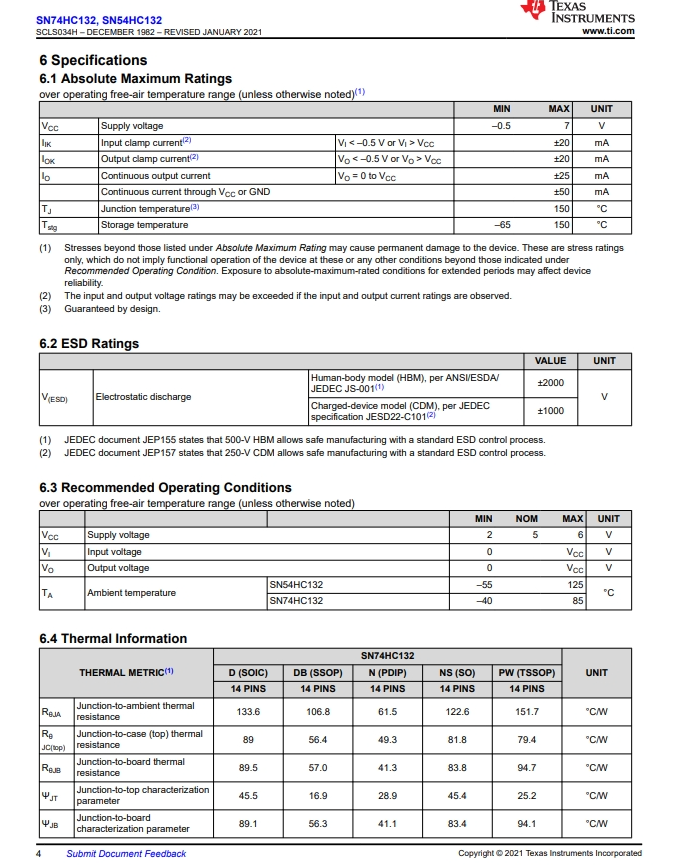

Product datasheet
For more information, please download
