Product Descriptions

The TEN 8WI series is a family of high performance 8 Watt dc/dc converter modules featuring ultra wide 4:1 input voltage ranges in a DIP-24

package with industry- standard footprint. Input voltages up to 160 VDC, excellent EMC characteristics and EN 50155 approval make this

product the best choice for many demanding applications in railroad and transportation systems. Further standard features include remote

On/Off, over voltage protection, under voltage lockout and short circuit protection. Typical applications for these converters are also in wireless

networks, telecom/datacom, industry control systems and measurement equipment.

Product Features

• Ultra wide 4:1 input range up to 160 VDC

• Certified for Railway applications (EN 50155)

• Operating temperature range -40°C to + 85°C

• Input under voltage lockout

• I/O isolation 1500 VDC

• Input filter to meet EN 55022 class A

• Remote On/Off

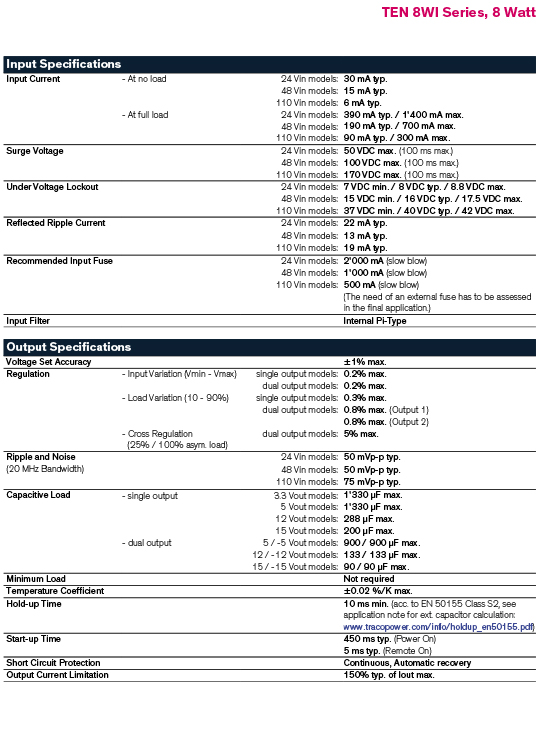

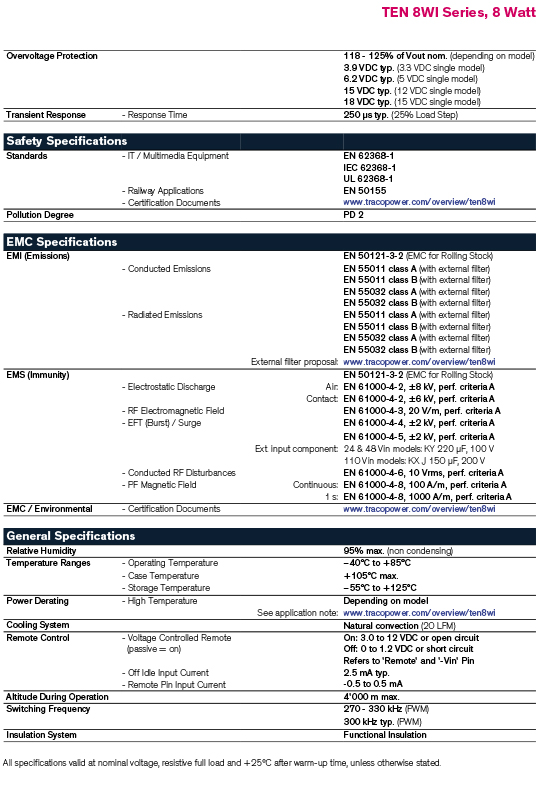

Specifications

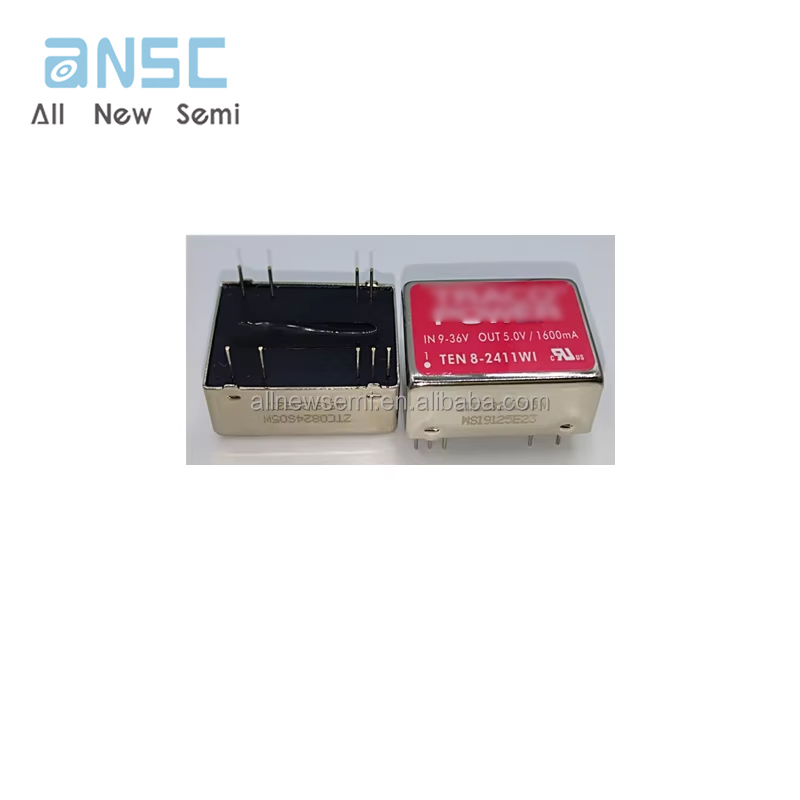

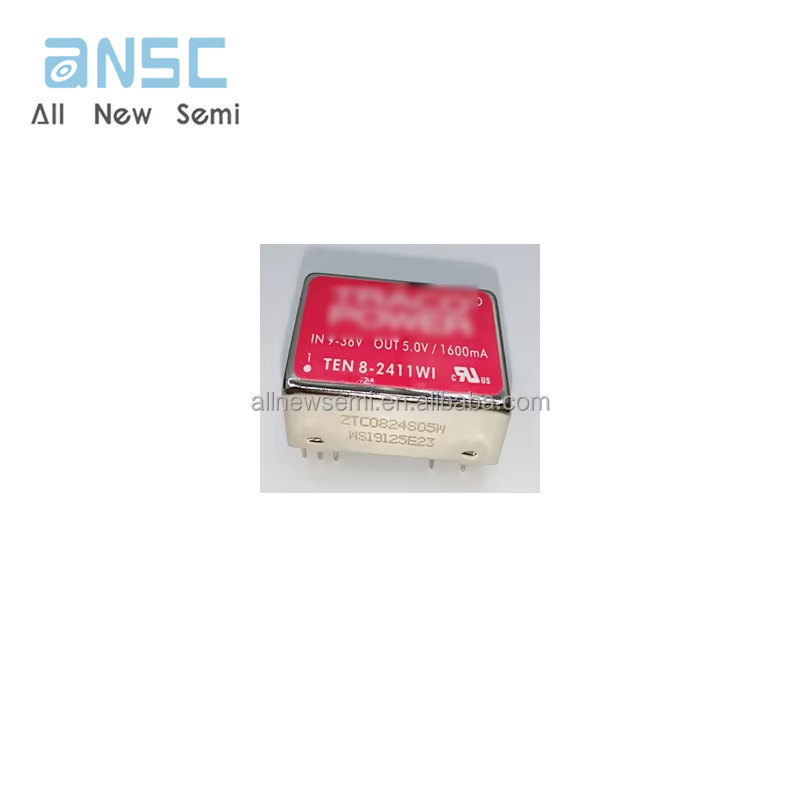

Actual product photos

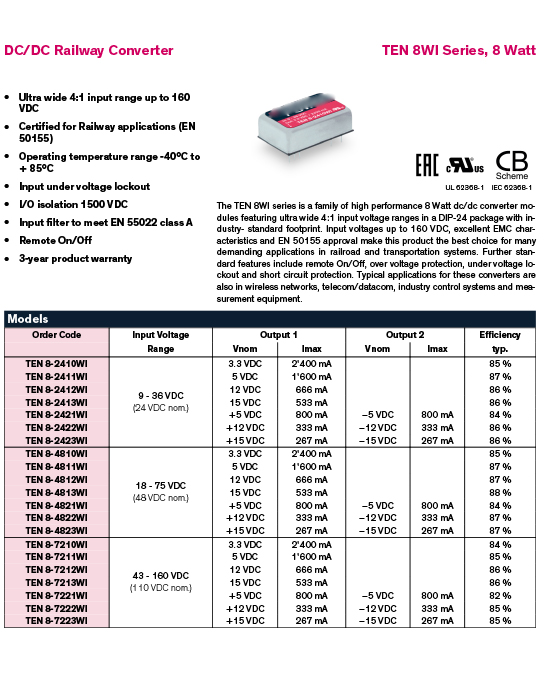

Product Data Book：

For more product information, please download the PDF
