Product Descriptions

The ADT7461 is a dual-channel digital thermometer and under/over temperature alarm intended for use in PCs and thermal management systems. It is pin- and register-compatible with the ADM1032. The ADT7461 has three additional features: series

resistance cancellation (where up to 3 k (typical) of resistance in series with the temperature monitoring diode may be automatically cancelled from the temperature result, allowing noise filtering); configurable ALERT output; and an extended,

switchable temperature measurement range. The ADT7461 can accurately measure the temperature of a remote thermal diode to ±1°C and the ambient temperature to ±3°C. The temperature measurement range defaults to 0°C to +127°C, compatible

with the ADM1032, but can be switched to a wider measurement range of −55°C to +150°C. The ADT7461 communicates over a 2-wire serial interface compatible with system management bus (SMBus) standards. An ALERT output signals when the on-

chip or remote temperature is out of range. The THERM output is a comparator output that allows on/off control of a cooling fan. The ALERT output can be reconfigured as a second THERM output, if required.

The SMBus address of the ADT7461 is 0x4C.

Product Features

• On-Chip and Remote Temperature Sensor

• 0.25°C Resolution/1°C Accuracy on Remote Channel

• 1°C Resolution/3°C Accuracy on Local Channel

• Automatically Cancels Up to 3 k (Typ) of Resistance in Series with Remote Diode to Allow Noise Filtering

• Extended, Switchable Temperature Measurement Range 0°C to +127°C (Default) or –55°C to +150°C

• Pin- and Register-Compatible with the ADM1032

• 2-wire SMBus Serial Interface with SMBus Alert Support

• ADT7461 SMBus Address is 0x4C

• Programmable Over/Undertemperature Limits

• Offset Registers for System Calibration

• Up to Two Overtemperature Fail−Safe THERM Outputs

• Small 8-lead SOIC NB or 8-lead MSOP Packages

• 170 uA Operating Current, 5.5 uA Standby Current

• These are Pb-Free Devices*

Product Applications

• Desktop and Notebook Computers

• Industrial Controllers

• Smart Batteries

• Embedded Systems

• Instrumentation

Specifications

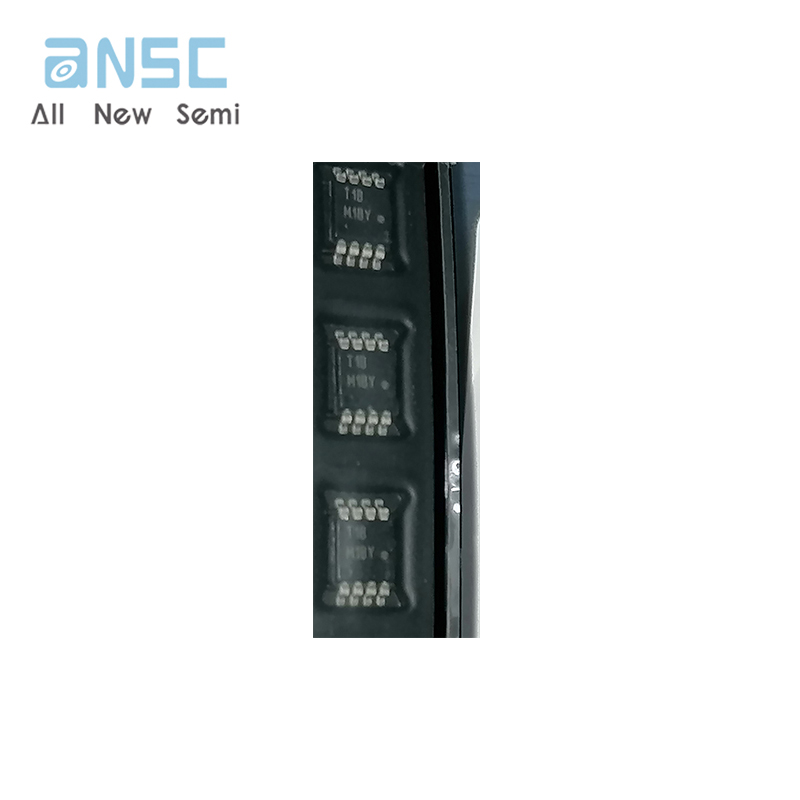

Actual product photos
