Product Details

Description

The ALT4532M-171-T001 is a pulse transformer, specifically categorized under pulse transformers within the broader category of transformers. This component is engineered to provide reliable and efficient signal transformation in various electronic applications. The "CENTER TAPPED SECONDARY" feature enhances its functionality by offering a central tap point on the secondary winding, which can be useful for specific circuit configurations.

Product Features

• Inductance: The ALT4532M-171-T001 boasts an inductance of 170 μH, making it suitable for applications requiring moderate to high inductive values.

• Insertion Loss: With an insertion loss of 2.5 dB, this transformer maintains a relatively low signal attenuation, ensuring high fidelity signal transfer.

• Operating Temperature Range: The operating temperature range of -40°C to 85°C allows for wide usage in various environmental conditions.

• Lead-Free and RoHS Compliant: The part is lead-free and compliant with ROHS3 standards, ensuring it meets stringent environmental regulations.

• Surface Mount Design: The surface mount design (0.177L x 0.126W / 4.50mm x 3.20mm) facilitates easy integration into modern PCBs.

• Tape & Reel Packaging: Packaged in tape and reel format (TR), it is convenient for automated assembly processes.

Product Applications

Primary Applications: 1. LAN Transformers: The ALT4532M-171-T001 is specifically designed as a LAN transformer, making it ideal for local area network applications where high-frequency signal isolation is crucial. 2. High-Frequency Signal Isolation: Its low insertion loss and moderate inductance make it suitable for applications requiring high-frequency signal isolation.

Secondary Applications: 1. Telecommunications Equipment: The transformer's reliability and efficiency make it suitable for use in telecommunications equipment such as routers, switches, and other network devices. 2. Industrial Automation Systems: Its robust design and wide operating temperature range make it applicable in industrial automation systems where reliability is paramount.

Product Description

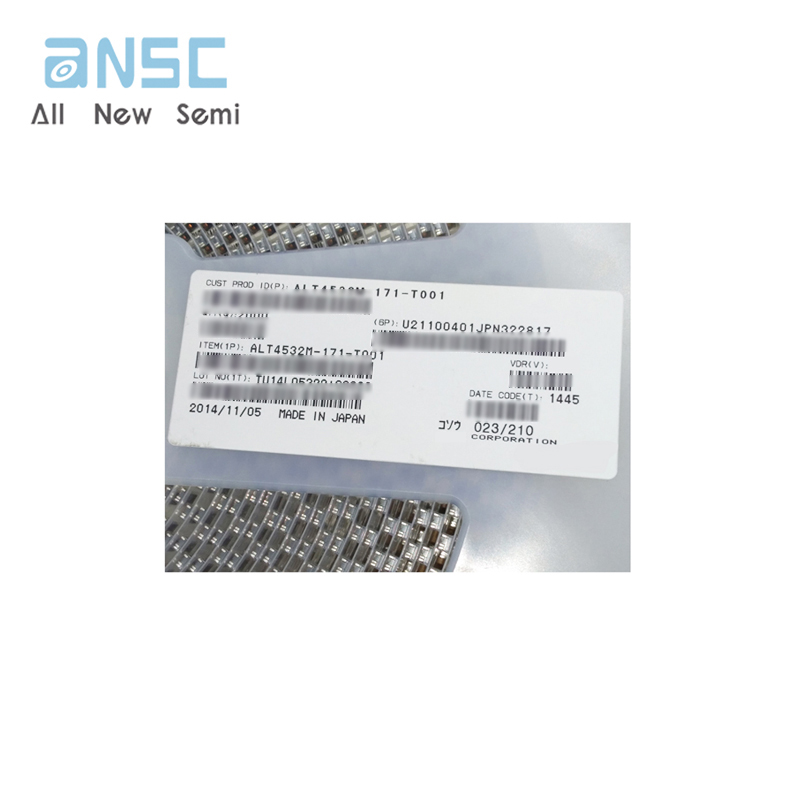

Actual image of the product

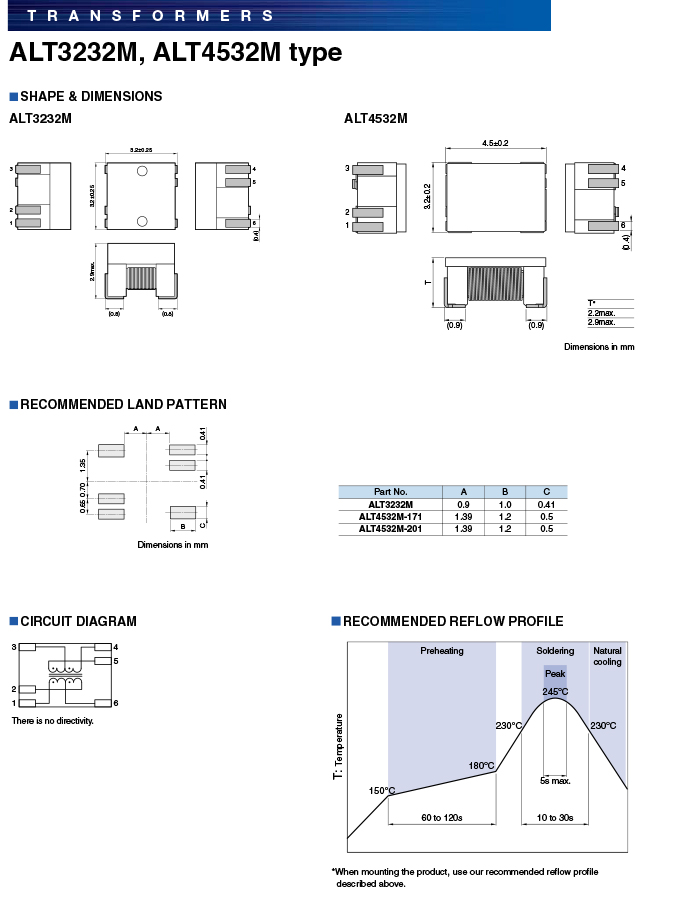

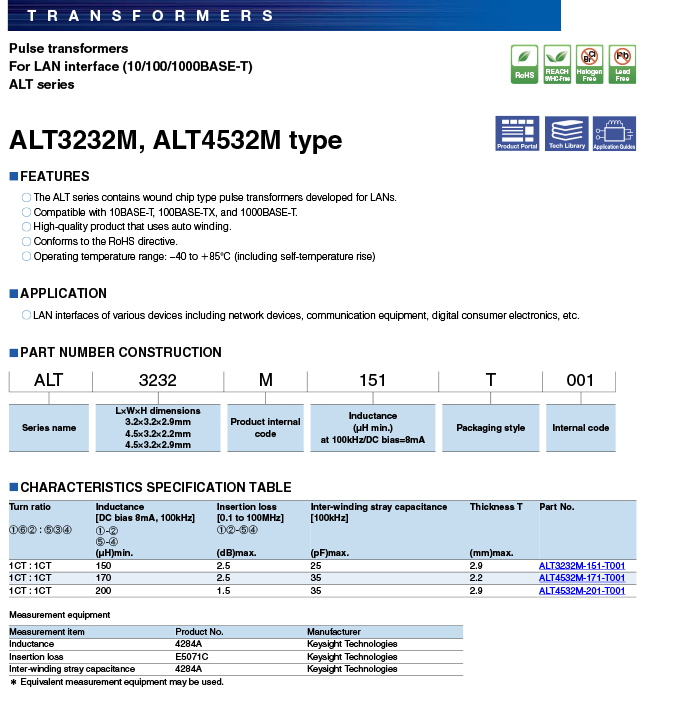

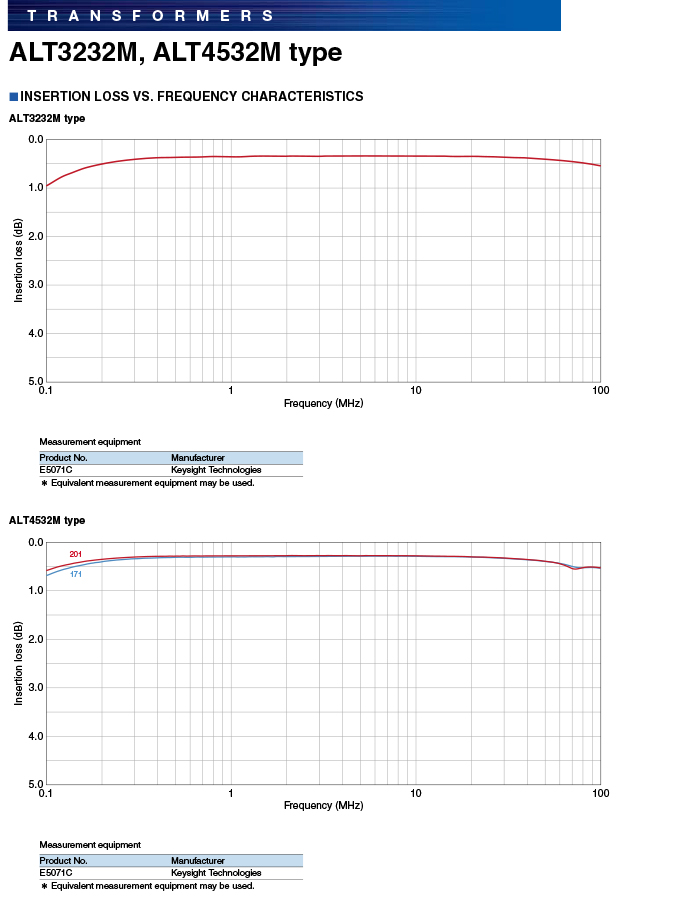

Product datasheet

For more information, please download
