Product Details
| DESCRIPTION NPN/PNP transistor pair in an SC-88; SOT363 plastic package. FEATURES • Low collector capacitance • Low collector-emitter saturation voltage • Closely matched current gain • Reduces number of components and boardspace • No mutual interference between the transistors. APPLICATIONS • General purpose switching and amplification. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- BC847BPN |
| Ihs Manufacturer | Original |
| Part Package Code | SC-88 |
| Package Description | PLASTIC, SC-88, 6 PIN |
| Pin Count | 6 |
| Samacsys Manufacturer | Original |
| Collector Current-Max (IC) | 0.1 A |
| Collector-Emitter Voltage-Max | 45 V |
| Configuration | SEPARATE, 2 ELEMENTS |
| DC Current Gain-Min (hFE) | 200 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 2 |
| Number of Terminals | 6 |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | NPN AND PNP |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Finish | Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 100 MHz |

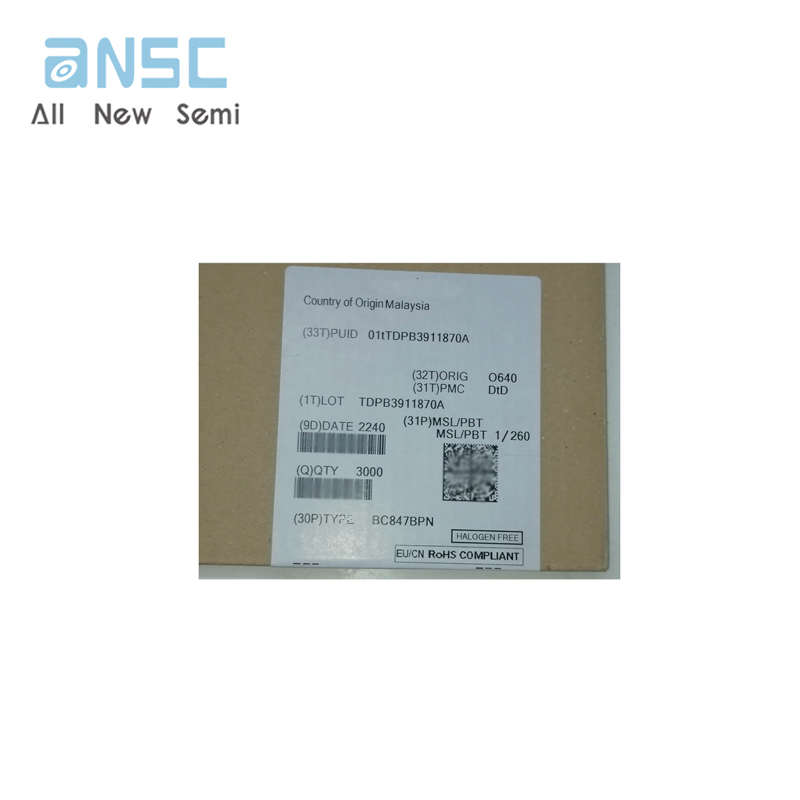

Product Photos
