Product Details
Features
1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thin film resistors with complete isola tion to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
3) Only the on/off conditions need to be set for operation, making device design easy.
Product Description
| Type# | Description |
| ANSC PART# | ANSC- DTC124EKA |
| Ihs Manufacturer | Original |
| Package Description | SMALL OUTLINE, R-PDSO-G3 |
| Additional Feature | DIGITAL, BUILT IN BIAS RESISTOR RATIO 1 |
| Collector Current-Max (IC) | 0.03 A |
| Collector-Emitter Voltage-Max | 50 V |
| Configuration | SINGLE WITH BUILT-IN RESISTOR |
| DC Current Gain-Min (hFE) | 56 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max |
150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | NPN |
| Power Dissipation-Max (Abs) | 0.2 W |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |

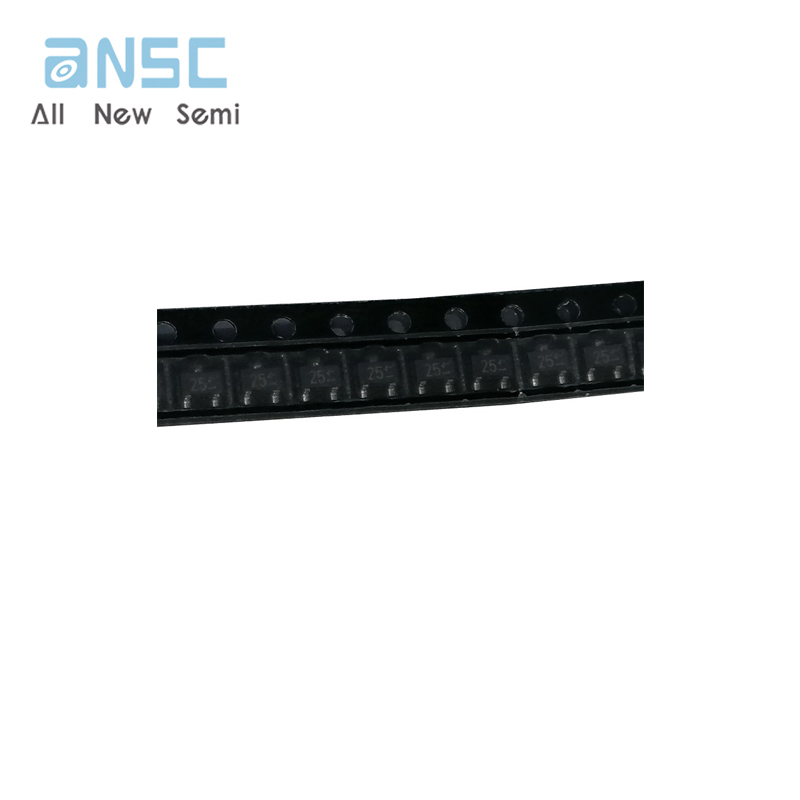

Actual image of the product

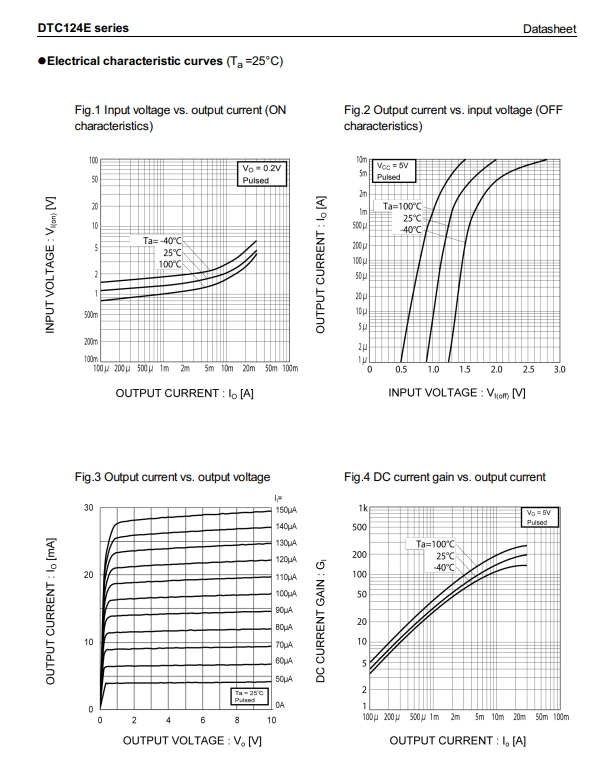

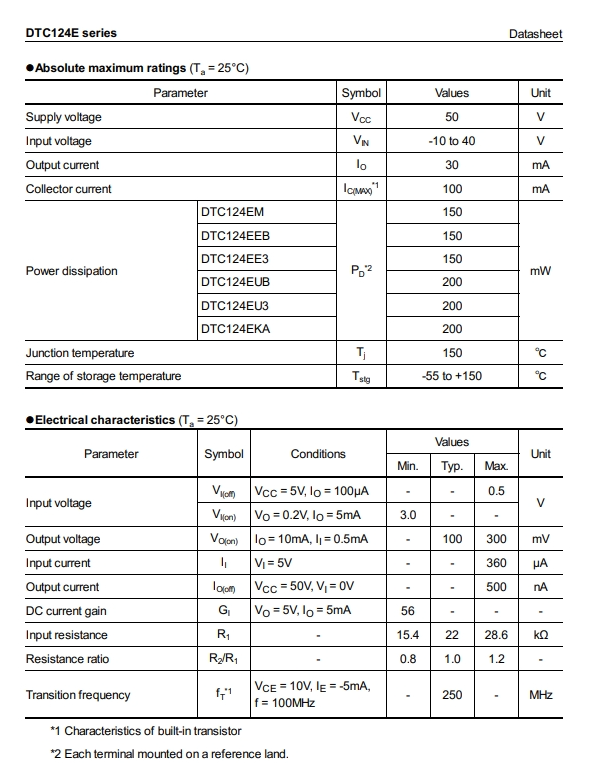

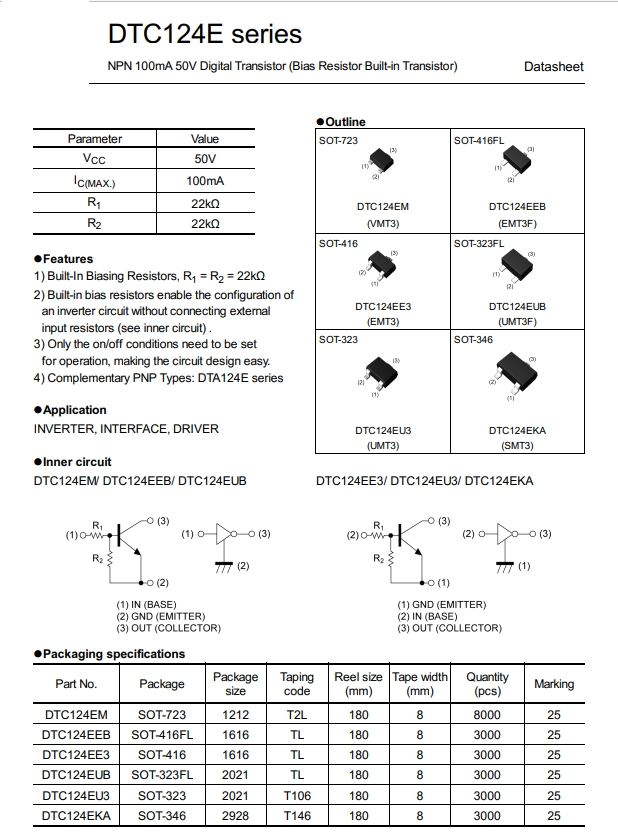

Product datasheet
For more information, please download
