GENERAL DESCRIPTION

The AD590 is a 2-terminal integrated circuit temperature transducer that produces an output current

proportional to absolute temperature. For supply voltages between 4 V and 30 V, the device acts as a high impedance,

constant current regulator passing 1 μA/K. Laser trimming of the chip’s thin-film resistors is used to calibrate

 the device to 298.2 μA output at 298.2 K (25°C).

FEATURES

   Linear current output: 1 μA/K

   Wide temperature range: −55°C to +150°C

   Probe-compatible ceramic sensor package

   2-terminal device: voltage in/current out

   Laser trimmed to ±0.5°C calibration accuracy (AD590M)

   Excellent linearity: ±0.3°C over full range (AD590M)

   Wide power supply range: 4 V to 30 V

   Sensor isolation from case

   Available in 2-lead FLATPACK, 4-lead LFCSP, 3-pin TO-52,

      8-lead SOIC, and die form

ANSC PART#

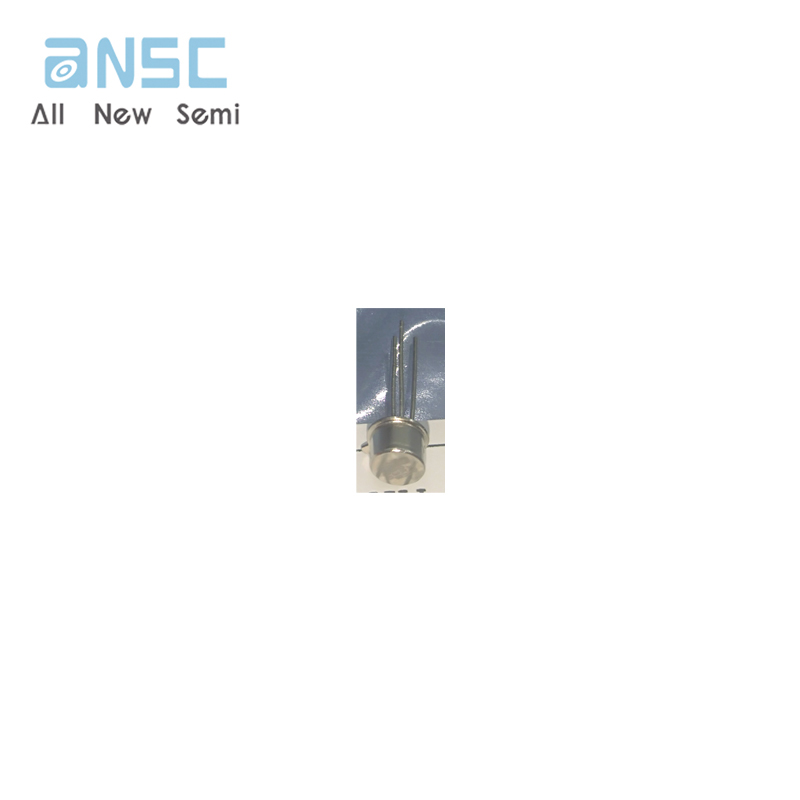

 ANSC- AD590KH883B
