Product Details
| GENERAL DESCRIPTION The AD76061/AD7606-6/AD7606-4 are 16-bit, simultaneous sampling, analog-to-digital data acquisition systems (DAS) with eight, six, and four channels, respectively. Each part contains analog input clamp protection, a second-order antialiasing filter, a track-and-hold amplifier, a 16-bit charge redistribution successive approximation analog-to-digital converter (ADC), a flexible digital filter, a 2.5 V reference and reference buffer, and high speed serial and parallel interfaces. FEATURES 8/6/4 simultaneously sampled inputs True bipolar analog input ranges: ±10 V, ±5 V Single 5 V analog supply and 2.3 V to 5 V VDRIVE Fully integrated data acquisition solution Analog input clamp protection Input buffer with 1 MΩ analog input impedance Second-order antialiasing analog filter On-chip accurate reference and reference buffer 16-bit ADC with 200 kSPS on all channels Oversampling capability with digital filter Flexible parallel/serial interface SPI/QSPI™/MICROWIRE™/DSP compatible Performance 7 kV ESD rating on analog input channels 95.5 dB SNR, −107 dB THD ±0.5 LSB INL, ±0.5 LSB DNL Low power: 100 mW Standby mode: 25 mW 64-lead LQFP package APPLICATIONS Power-line monitoring and protection systems Multiphase motor control Instrumentation and control systems Multiaxis positioning systems Data acquisition systems (DAS) |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- AD7606BSTZ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| ADCs/DACs - Special Purpose | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 200k |
| Data Interface | DSP, MICROWIRE™, Parallel, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.3V ~ 5.25V, 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| Base Product Number | AD7606 |

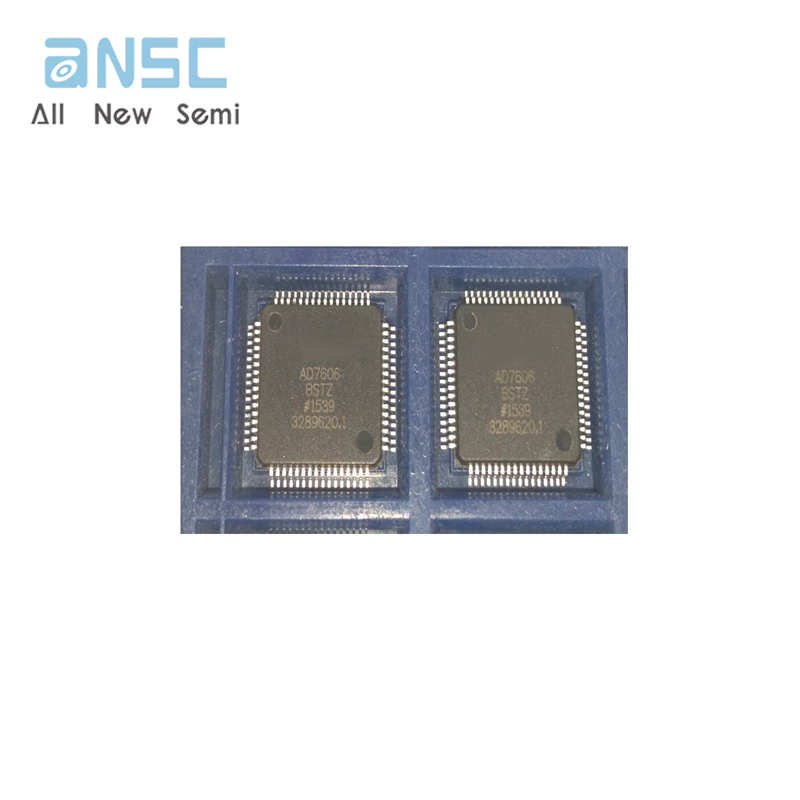

Product Photos

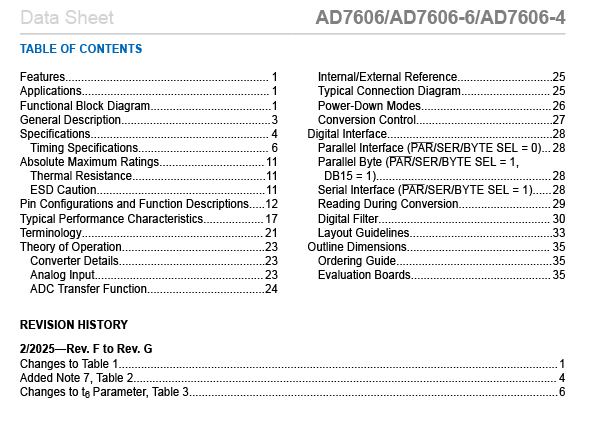

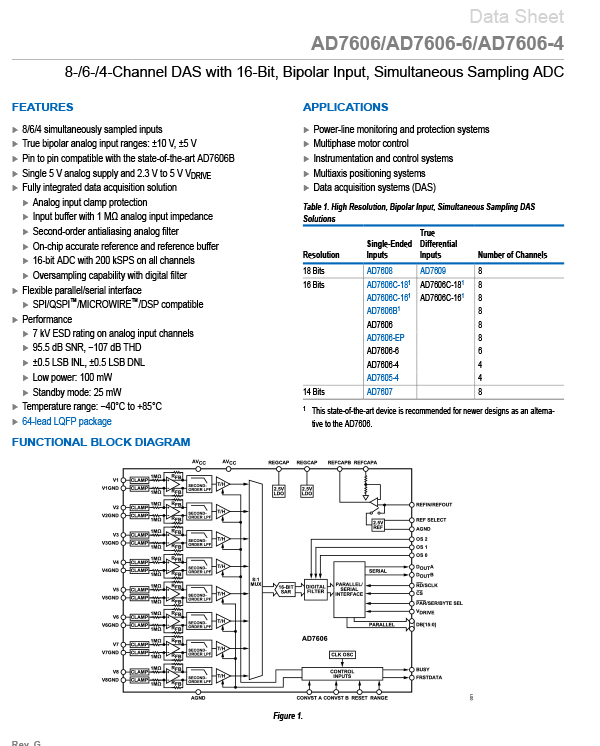

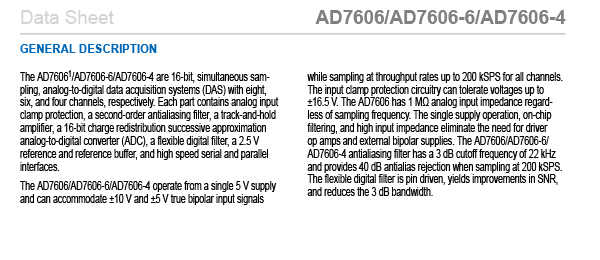

Product datasheet
