Product Details
GENERAL DESCRIPTION
The AD8603/AD8607/AD8609 are single/dual/quad micropower rail-to-rail input and output amplifiers, respectively, that feature very low offset voltage as well as low input voltage and current noise.
FEATURES
Low offset voltage: 50 μV maximum
Low input bias current: 1 pA maximum
Single-supply operation: 1.8 V to 5 V
Low noise: 22 nV/√Hz
Micropower: 50 μA maximum
Low distortion
No phase reversal
Unity gain stable
APPLICATIONS
Battery-powered instrumentation
Multipole filters
Sensors
Low power ASIC input or output amplifiers
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - AD8609ARZ |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate |
0.1V/µs |
| Gain Bandwidth Product | 400 kHz |
| Current - Input Bias | 0.2 pA |
| Voltage - Input Offset | 12 µV |
| Current - Supply | 40µA (x4 Channels) |
| Current - Output / Channel | 70 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature |
-40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | AD8609 |

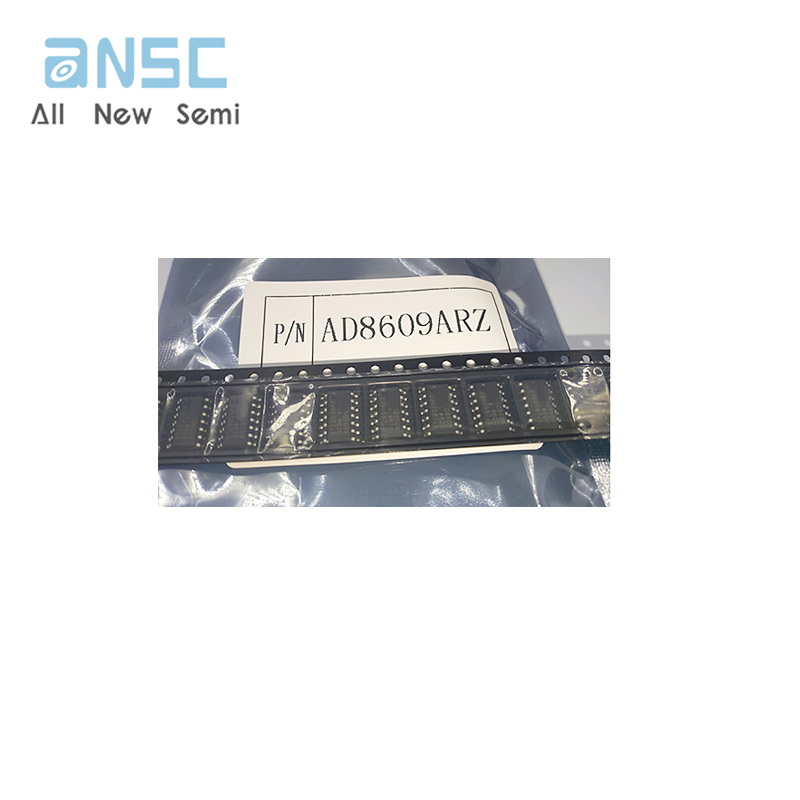

Product Photos

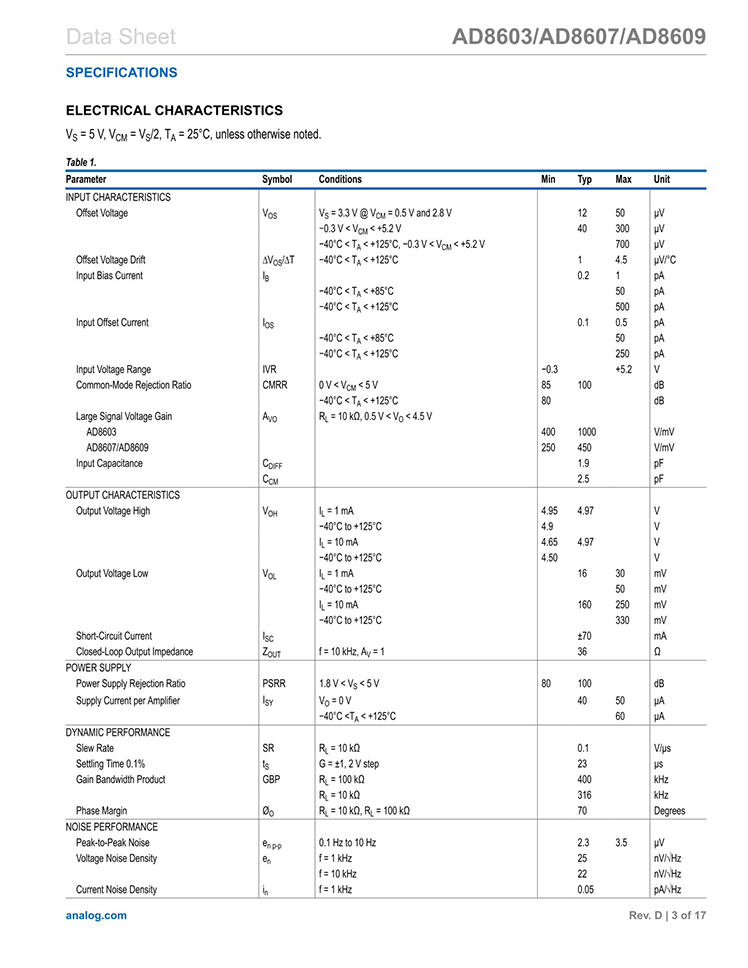

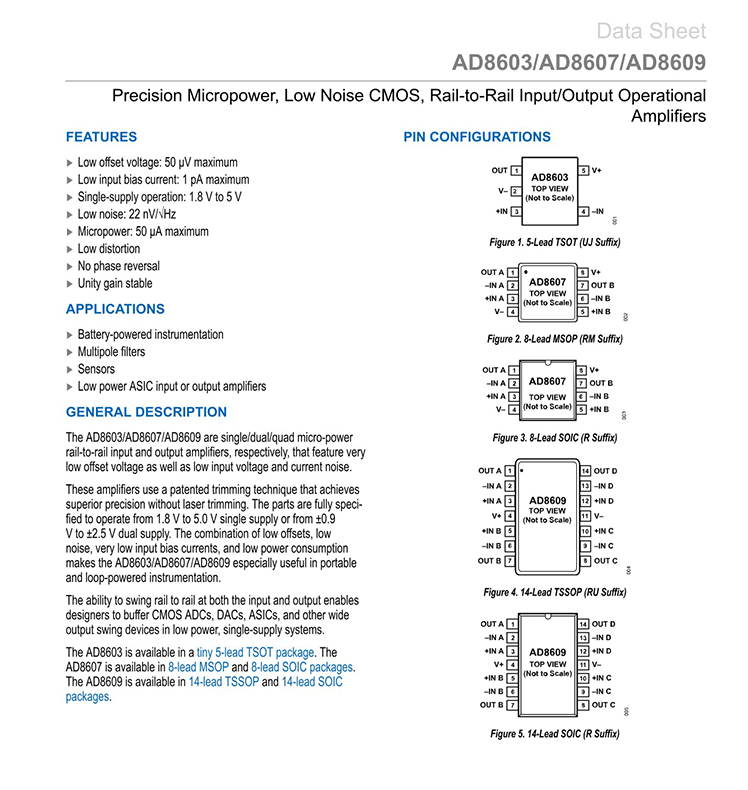

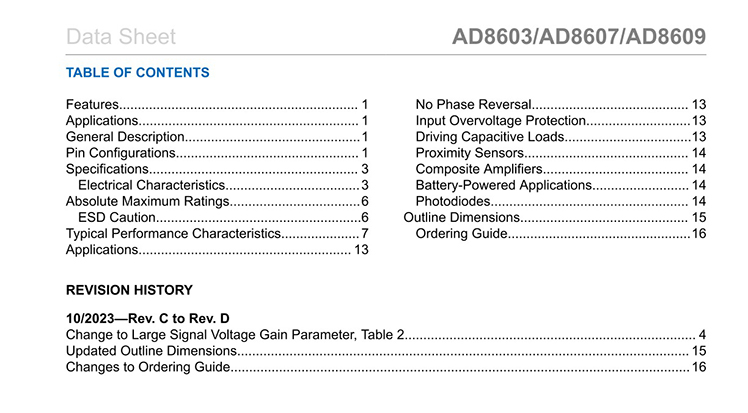

Product datasheet
For more information, please download
