Product Details
|
General Description The MAX6023 is a family of low-dropout, micropower voltage references in a 5-bump, chip-scale package (UCSP™). The MAX6023 series-mode (three-terminal) references, which operate with input voltages from 2.5V to 12.6V (1.25V and 2.048V options) or (VOUT + 0.2V) to 12.6V (all other voltage options), are available with output voltage options of 1.25V, 2.048V, 2.5V, 3.0V, 4.096V, 4.5V, and 5.0V. These devices are guaranteed an initial accuracy of ±0.2% and 30ppm/°C temperature drift over the -40°C to +85°C extended temperature range. UCSPs offer the benefit of moving to smaller footprint and lower profile devices, significantly smaller than even SC70 or SOT23 plastic surface-mount packages. The significantly lower profile (compared to plastic SMD packages) of the UCSP makes the device ideal for height-critical applications. Miniature UCSP packages also enable device placement close to sources and allow more flexibility in a complex or large design layout. Features ♦ 5-Bump UCSP Package (1.0mm ✕ 1.5mm ✕ 0.3mm) ♦ No Output Capacitor Needed ♦ ±0.2% (max) Initial Accuracy ♦ 30ppm/°C (max) Temperature Coefficient ♦ 35µA (max) Quiescent Supply Current ♦ 0.8µA/V (max) Supply Current Variation with VIN ♦ 100mV Dropout at 500µA Load Current ♦ Line Regulation: 160µV/V (max) ♦ Output Voltage Options: 1.25V, 2.048V, 2.5V, 3.0V, 4.096V, 4.5V, 5.0V Applications Hand-Held Equipment Data Acquisition Systems Industrial and Process Control Systems Battery-Operated Equipment Hard-Disk Drives |
Product Description
| Type# | Description |
| ANSC PART# |
ANSC-BT501KC |
| Part# | BT501KC |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | CDIP24 |

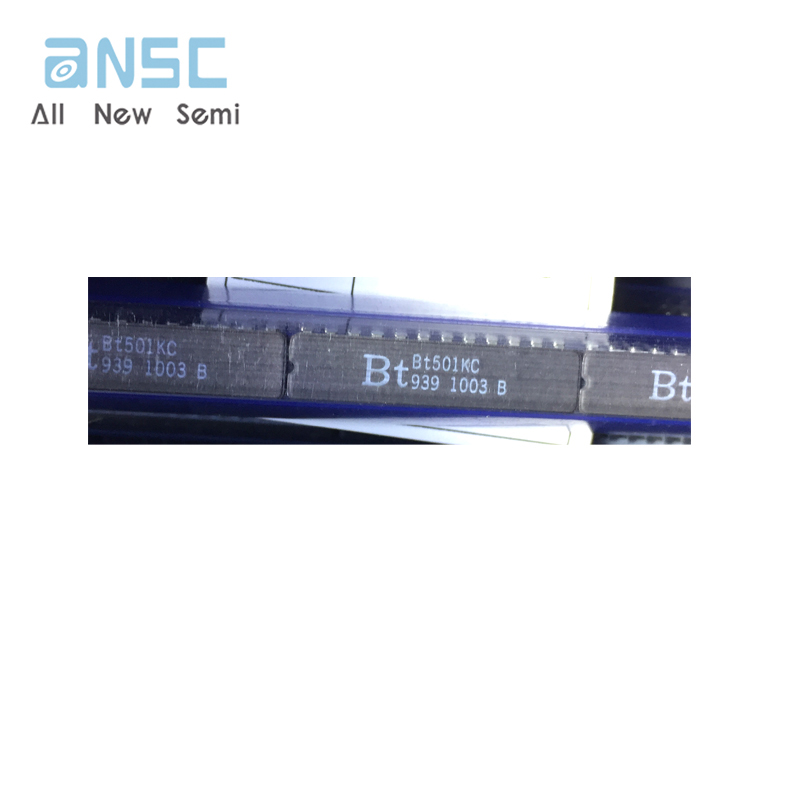

Product Photos
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
