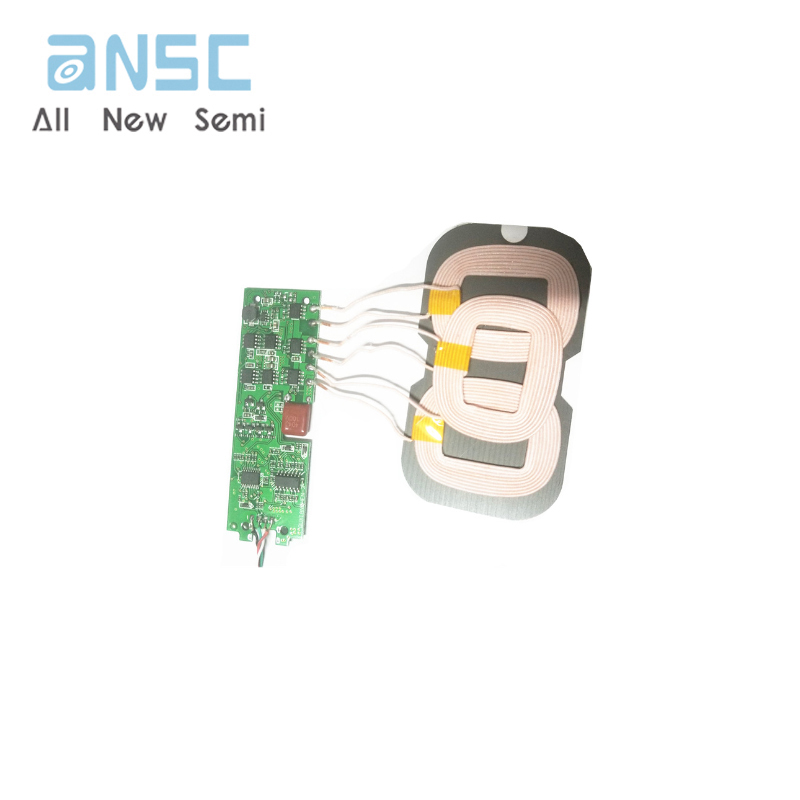

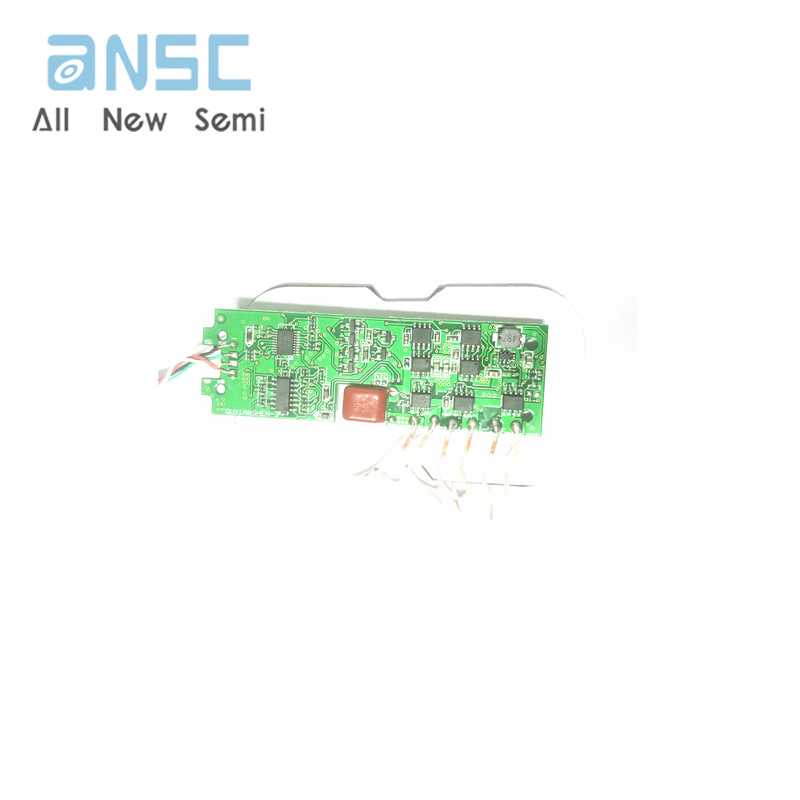

Three coil fast charging wireless charger PCBA board+coil 10W fast charging compatible with 7.5W transmitter module

Product Feature:

1. Input voltage: DC9V1.5-2A. If the voltage exceeds this range, an alarm will be triggered and charging will stop

2. Output voltage: 9V ± 0.1V,

3. Charging current: 1200mAh

4. Charging power: up to 10W

5. Conversion efficiency: greater than 73%

6. Transmission distance: maximum 10mm, recommended transmission and reception spacing of 2mm~4mm

7. Standby power consumption: average power consumption less than 50mW

8. Over temperature protection: When the temperature is above 60 ° C during charging, it will automatically stop charging for 1 minute and wait for the temperature to drop before recharging

9. Overcurrent protection: Automatically stops charging when the output current exceeds 2A during charging to prevent damage to the charger

10. Execution standard: Qi wireless charging standard

11. Product certification: CE/FCC, compatible with QI certification standards

12. Operating frequency: 110-205KHZ
