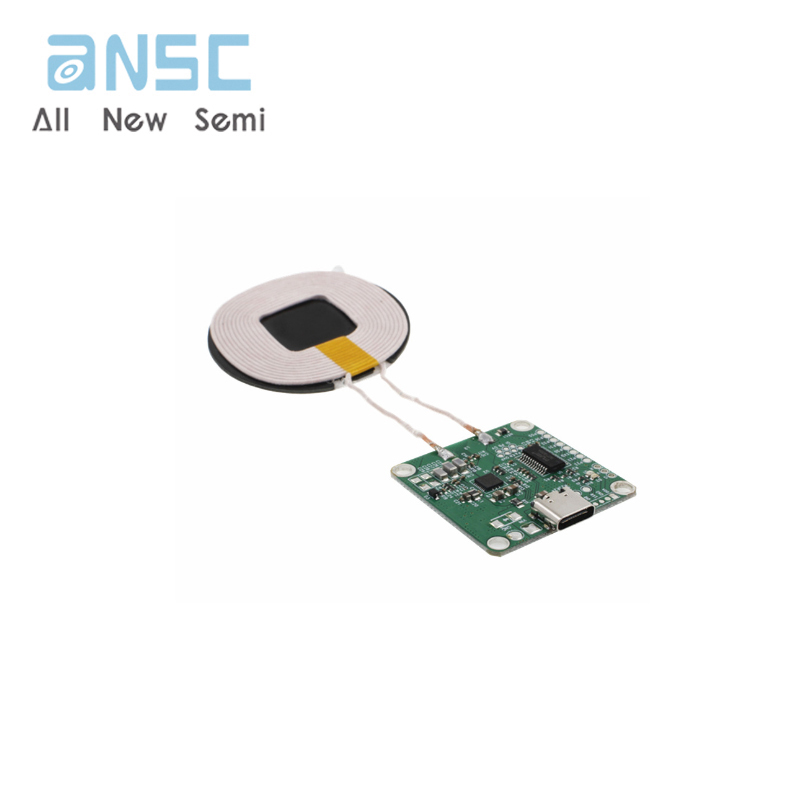

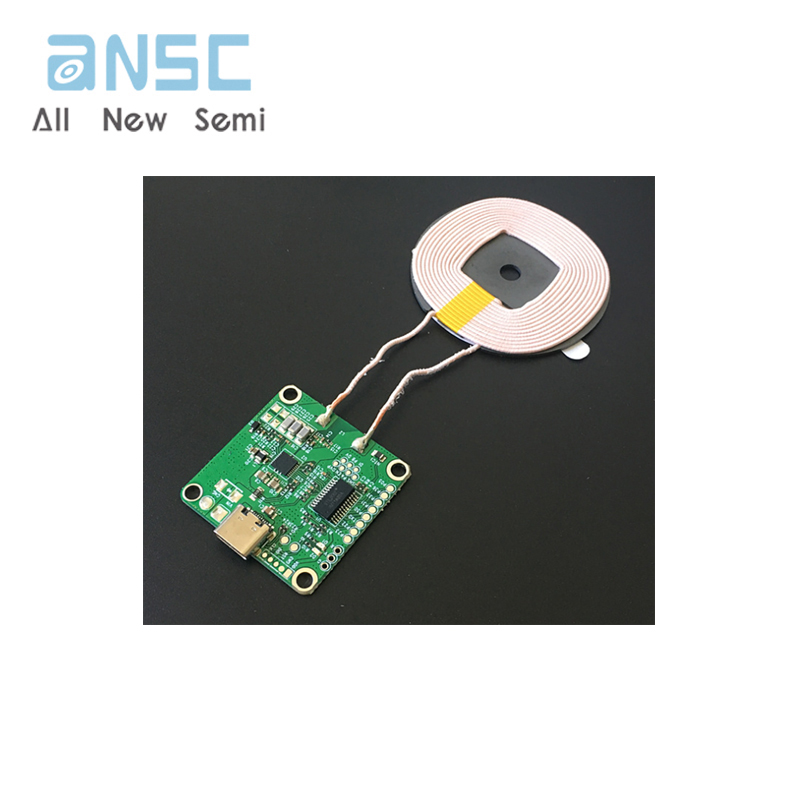

20W highpower wireless mobile phone charger 12V fast charging transmitter module certified for automotive furniture modification

Product Feature:

Compliant with WPC V1.2.3 wireless charging specifications

Product standard: EPP certification standard

Support mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc

Using high-performance control chips, power management chips, and low-temperature charging throughout the entire process

Input voltage: 5V-13.5V

Output current: 1A-1.67A

Output power: 20W/15W/10W/7.5W/5W Intelligent recognition

Charging efficiency: over 80%

Sensing distance: ≤ 10mm

Working frequency: 100-200Khz

Support dynamic energy balance

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support dual foreign object inspection (FOD)

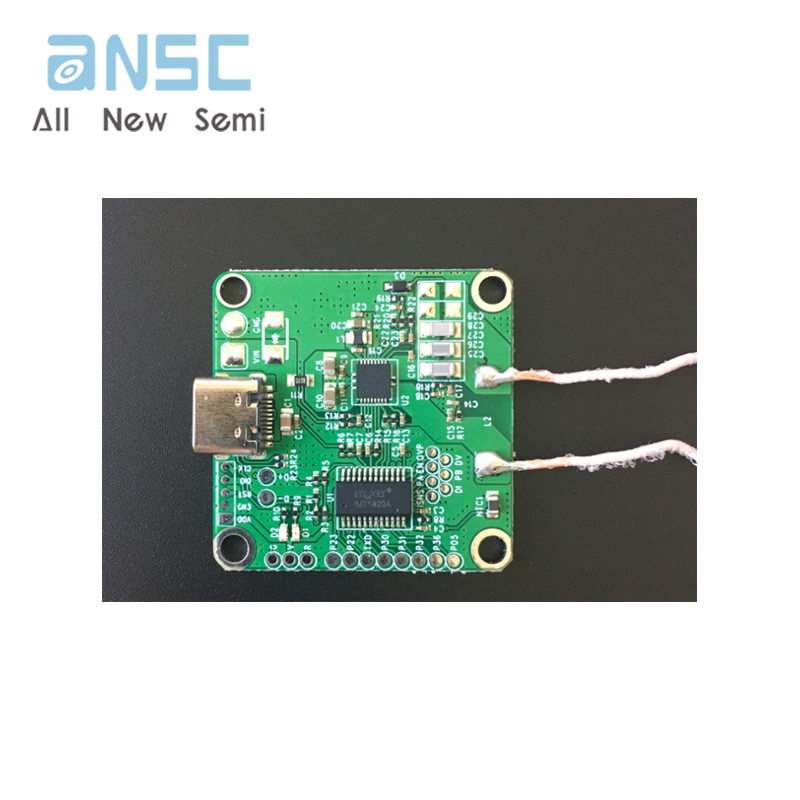

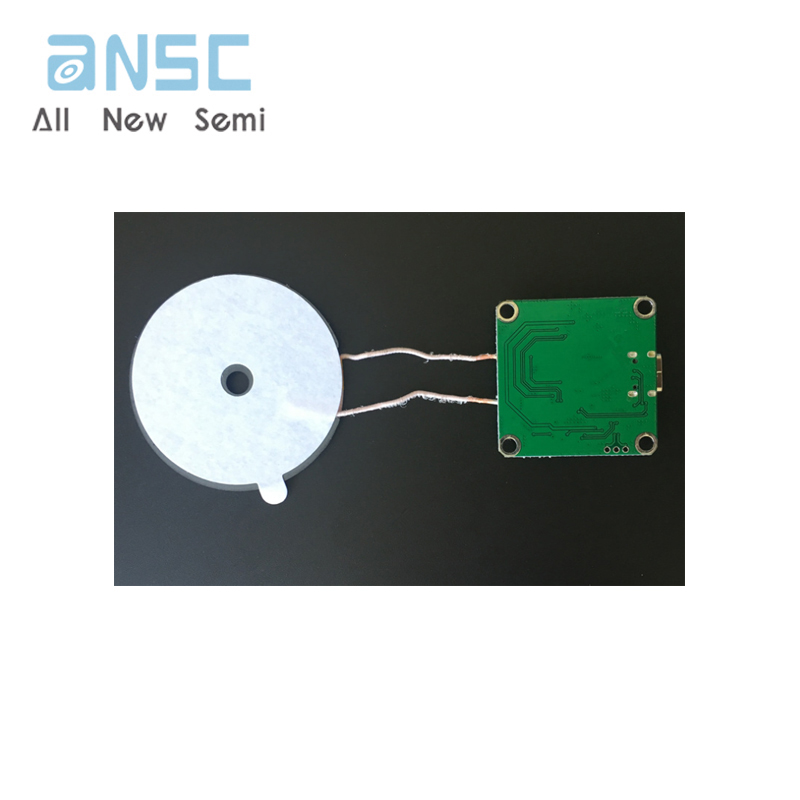

PCBA board size: length 35mm * width 35mm * thickness 3.3mm

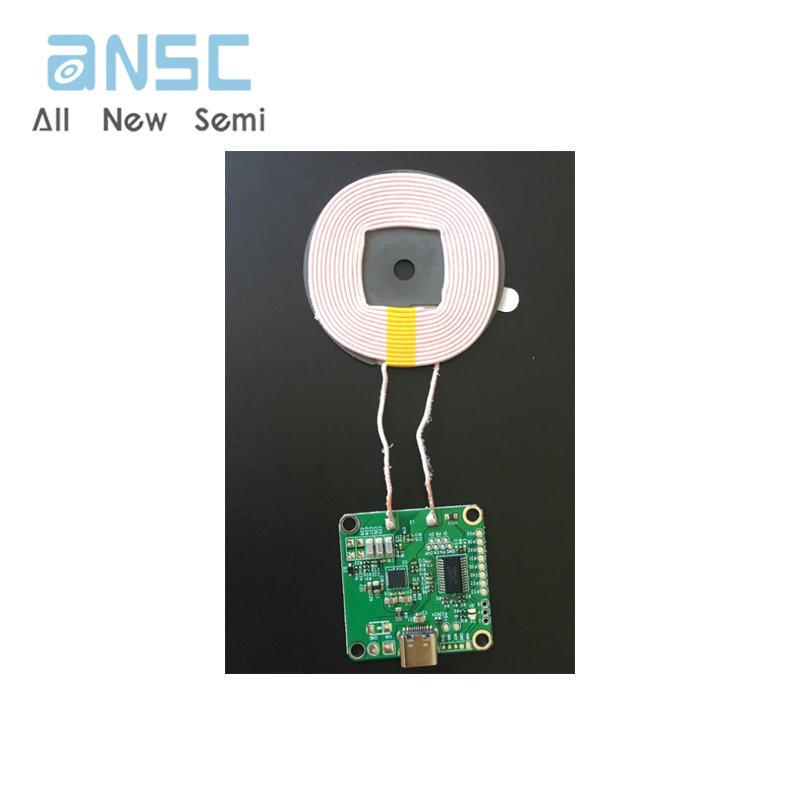

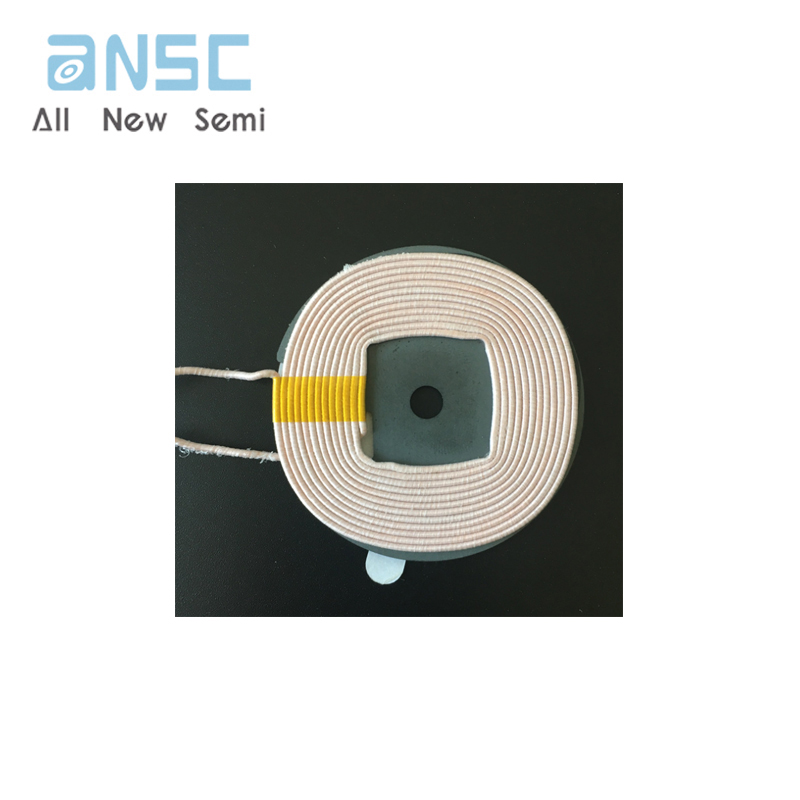

Magnetic coil size: diameter 50mm, thickness 2.2mm, 12 coils of wire
