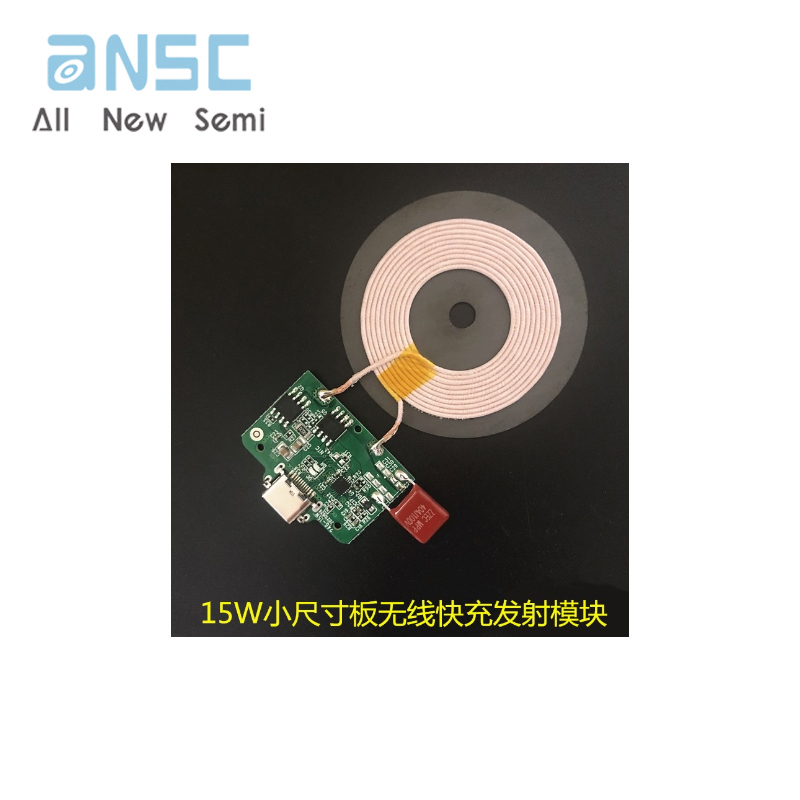

15W high-power mobile wireless charger transmitter base suitable for Apple, Xiaomi, Huawei desktop DIY modification

Product Feature:

Compliant with WPC V1.2.3 wireless charging specifications

Product standard: EPP certification standard

Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc

Using high-performance main control chip, stable charging, strong compatibility

Input voltage/current: 9V-2A, 5V-2A

Output current: 1A-1.67A

Output power: 15W/10W/7.5W/5W automatic recognition

Charging efficiency: around 75%

Sensing distance:<8mm

Working frequency: 100-200Khz

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support dual foreign object detection (FOD)

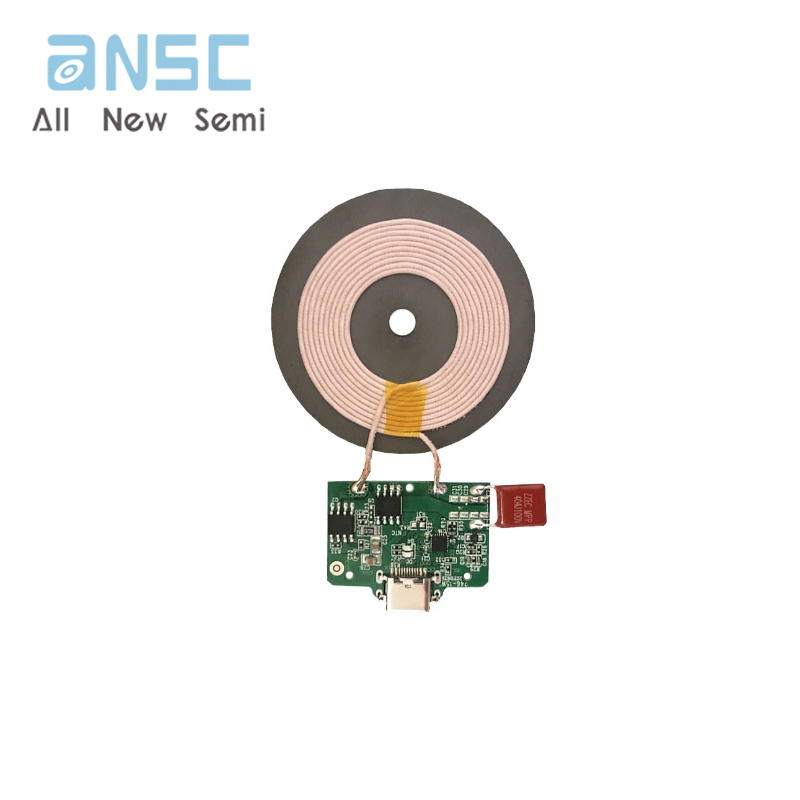

Circuit board size: length 32mm * width 25mm * thickness 3.2mm

Magnetic separator coil size: diameter 50mm, thickness 2.2mm

About Application

About customization

Delivery display
