New 15W ultra-low temperature mobile phone wireless charger transmitter module 12V voltage furniture desk lamp car modification

Product Feature:

Compliant with WPC V1.2.4 wireless charging specifications

Product standard: QI standard

Support QC, PD protocol fast charging head power supply

Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, and Apple

Using high-performance main control chip, low-temperature charging throughout the entire process

Input voltage/current: 12V-1.5-2A, 9V-2A, 5V-2A

Output power: 15W/10W 7.5W/5W Automatic recognition

Charging efficiency: around 80%

Sensing distance: ≤ 8mm

Working frequency: 100-200Khz

Support dynamic energy balance

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support dual foreign object inspection (FOD)

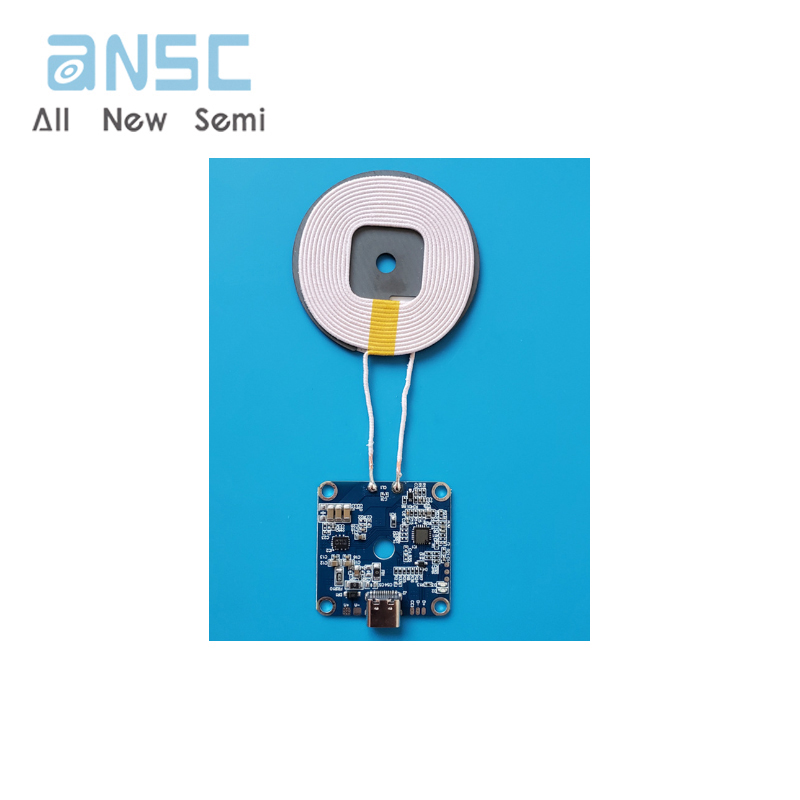

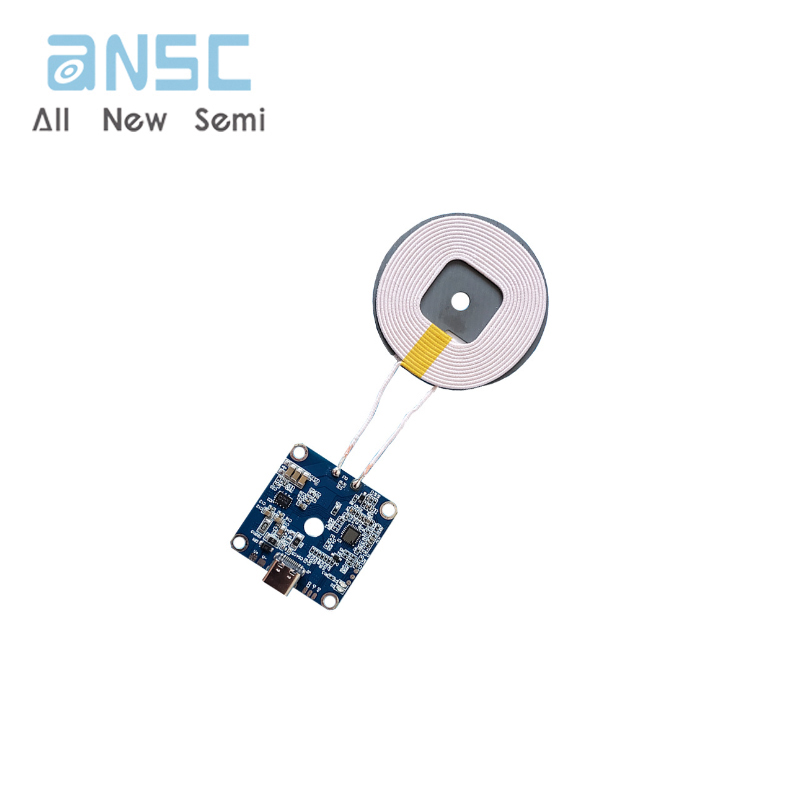

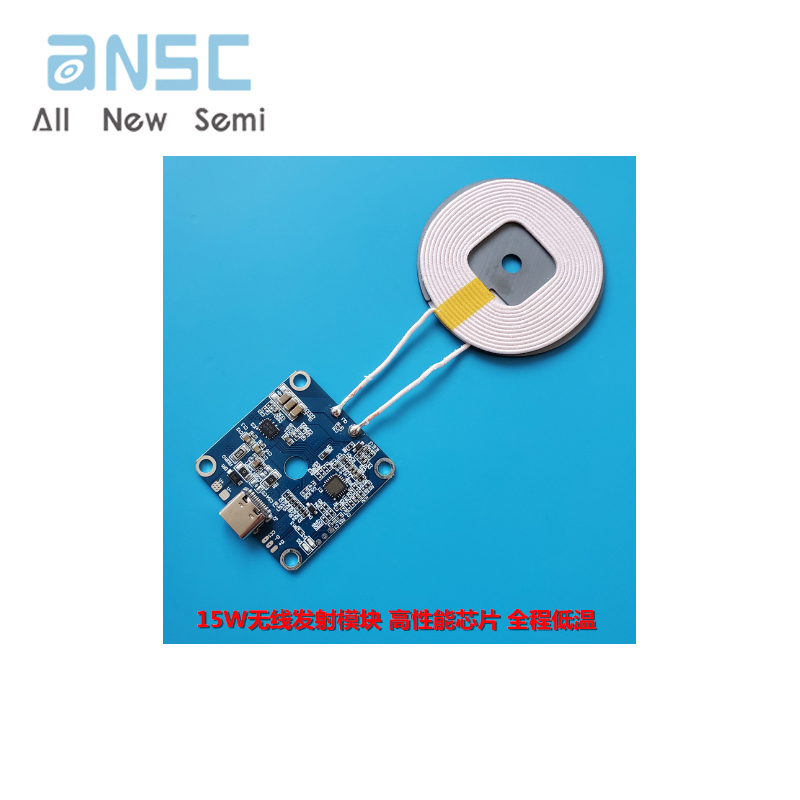

PCBA board size: length 35mm * width 35mm * thickness 3.3mm

Magnetic coil size: diameter 50mm, thickness 2.6mm, 12 coil
