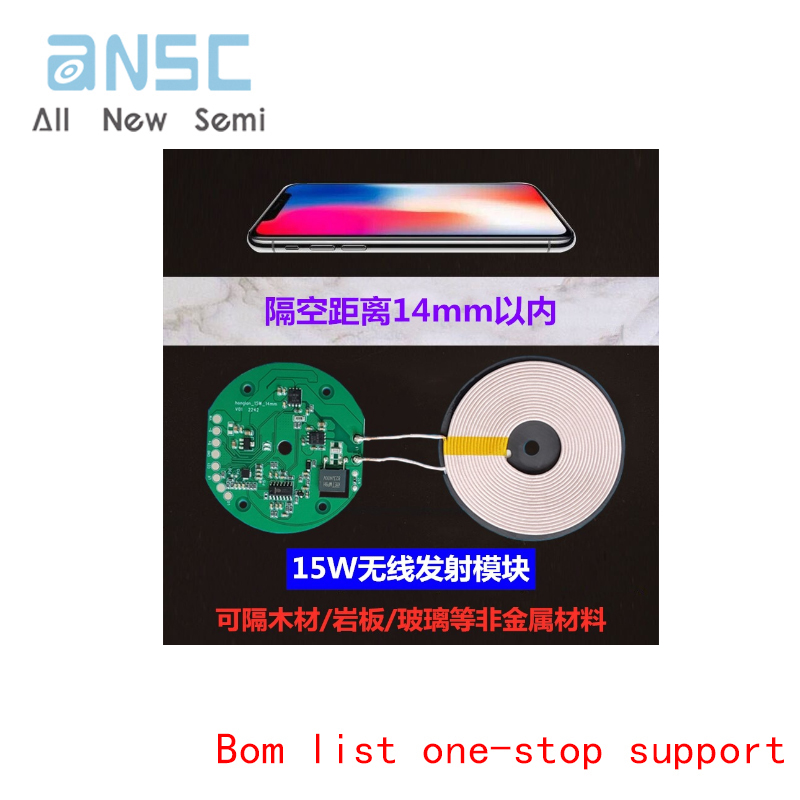

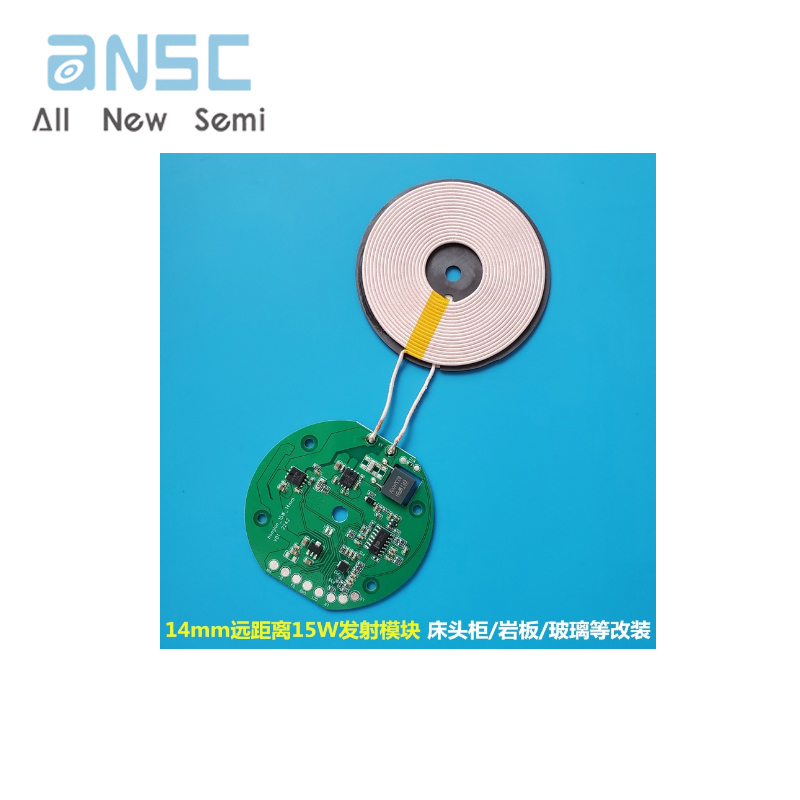

14mm long-distance 15W high-power transmission module, mobile wireless charger, furniture, rock glass DIY modification

Product Feature:

Compliant with WPC V1.2.4 wireless charging specifications

Product standard: EPP certification standard

Support mainstream smartphones such as Huawei, Xiaomi, Samsung, and Apple

Using high-performance control chips, stable and efficient

Penetrating non-metallic materials such as rock slabs, wood, glass, plastic, etc

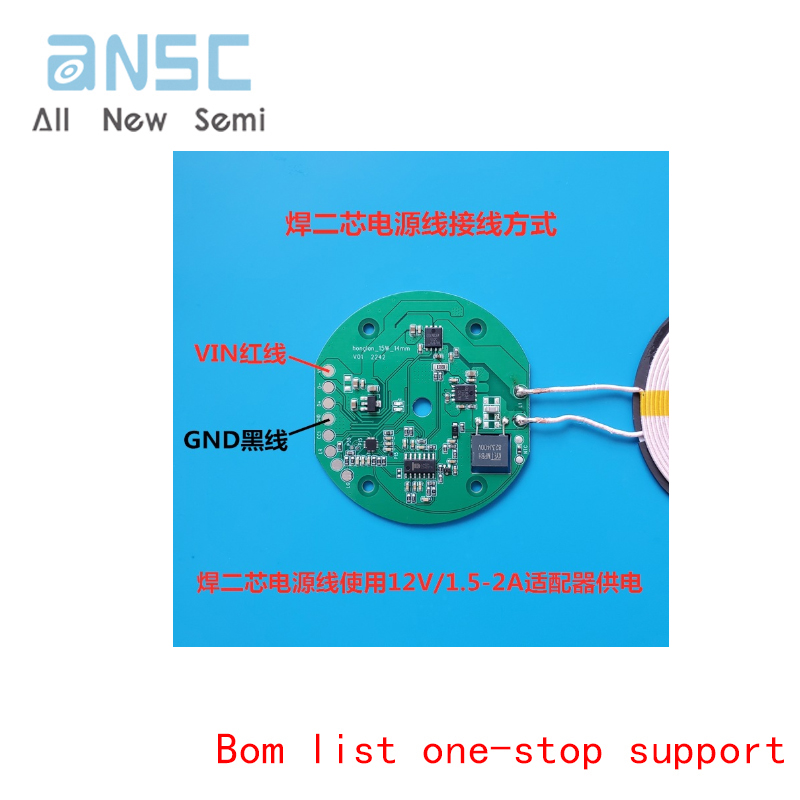

Use a 12V/1.5-2A adapter or QC3.0 charging head for power supply

Output power: 15W/10W 7.5W/5W Automatic recognition

Charging efficiency: around 76%

Charging distance 4-14mm, ideal distance 5-12mm

Mobile phones should not be placed at zero distance on the coil, and should be spaced at least 5 millimeters apart

Working frequency: 100-200Khz

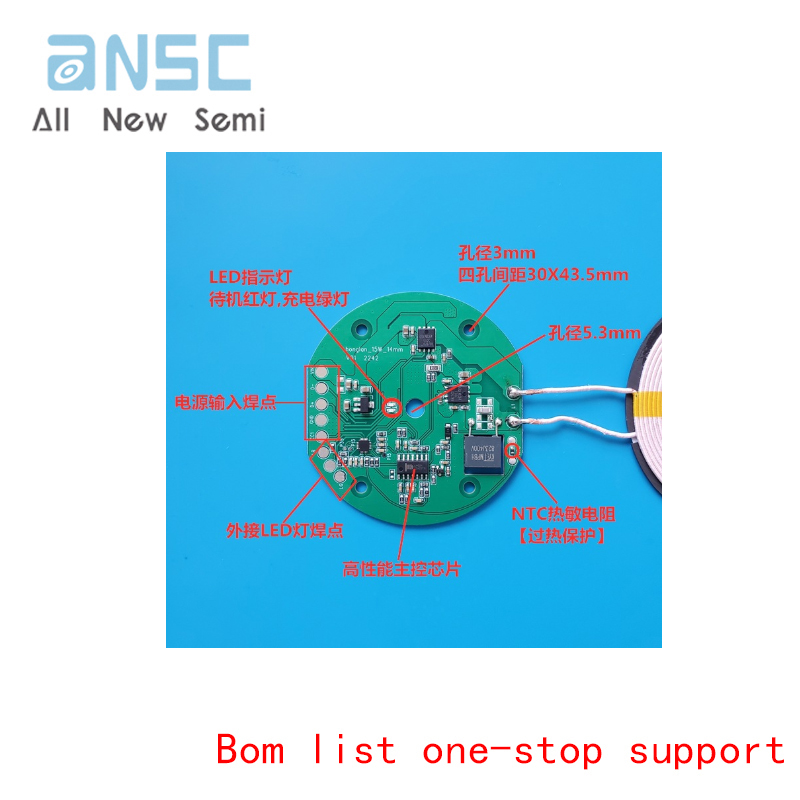

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support Foreign Object Detection (FOD)

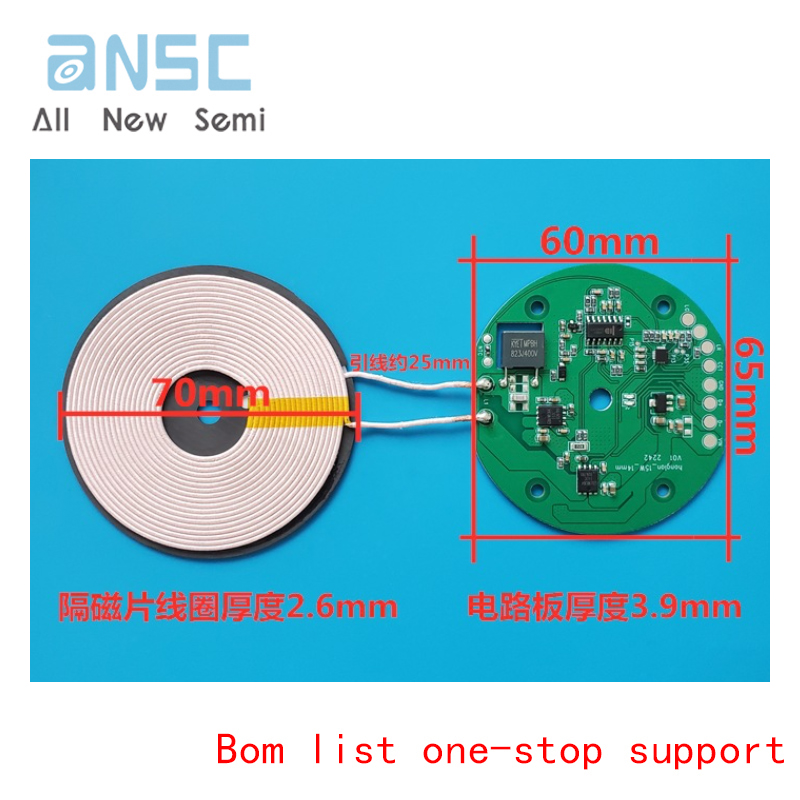

PCBA board size: length 65mm * width 60mm * thickness 3.9mm

Magnetic isolation coil size: diameter 70mm, thickness 2.6mm, 18 coils
