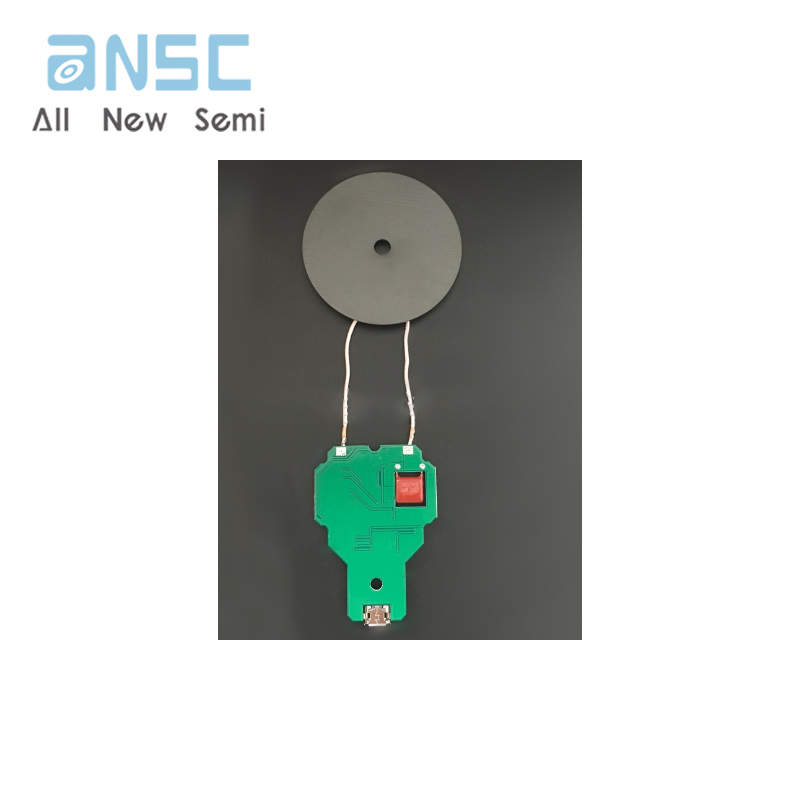

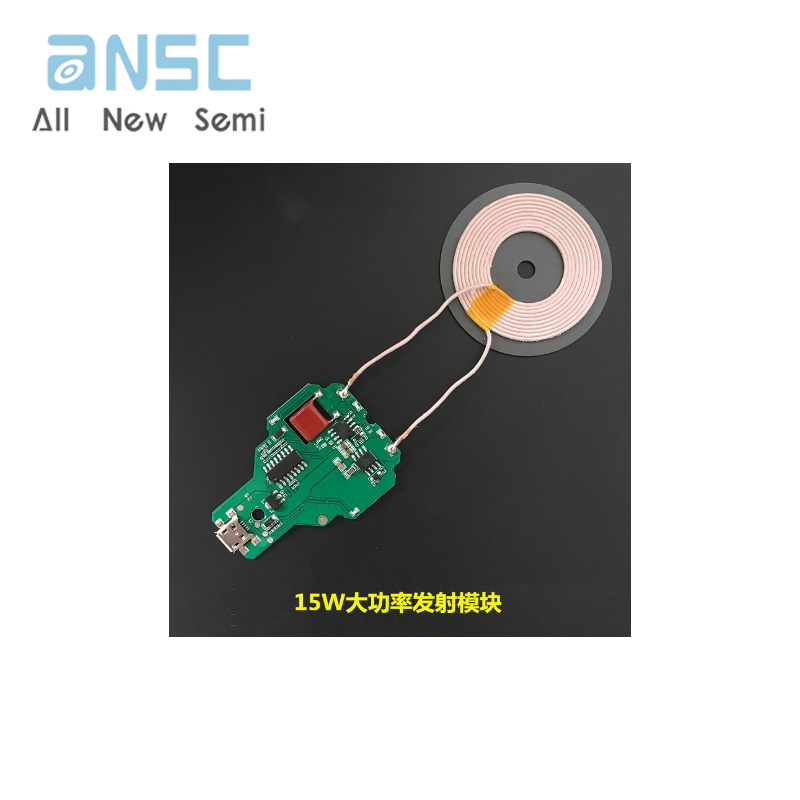

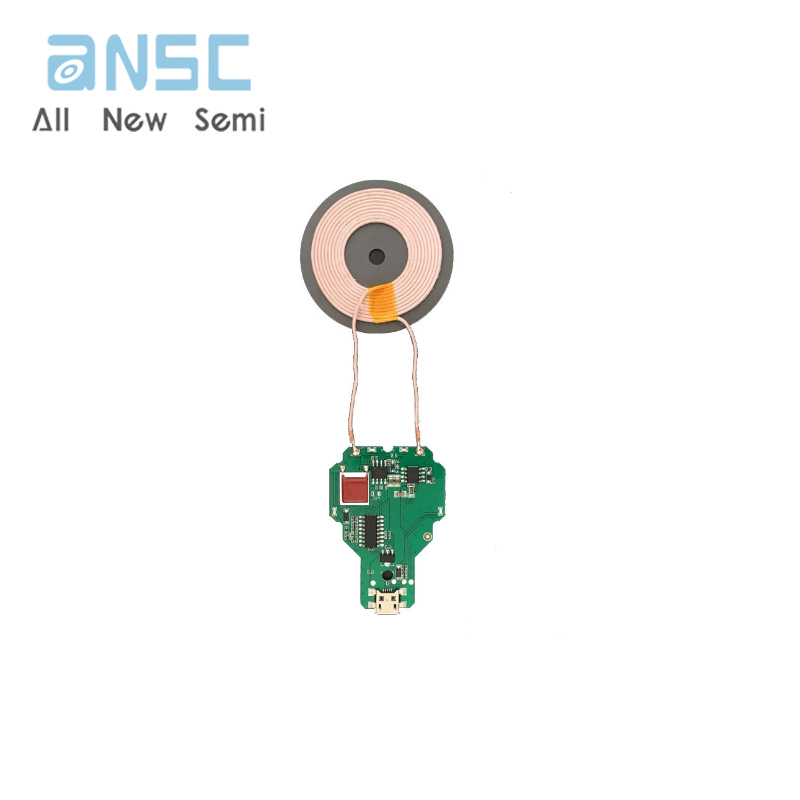

15W high-power wireless charger for mobile phones fast charging and transmitting module PCBA circuit board coil DIY modification

Product Feature:

Compliant with WPC V1.2.3 wireless charging specifications

Support mainstream mobile phone fast charging protocols such as Huawei, Xiaomi, Samsung, Apple, etc

Using high-performance main control chip, low-temperature charging throughout the entire process

Input method: QC3.0 charging head or soldering cable (9V/2A or 12V/2A adapter)

Output power: 15W/10W/7.5W/5W automatic recognition

Charging efficiency: around 70-80%

Sensing distance:<10mm

Working frequency: 100-200Khz

Support dynamic energy balance

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support dual foreign object inspection (FOD)

PCBA board size: length 36mm * width 52mm * thickness approximately 2.9mm

Magnetic coil size: diameter 50mm * thickness 2mm
