30mm remote concealed wireless charger with wired output, furniture, coffee table, desk, bar modification

Product Descriptions:

Compliant with WPC V1.2.3 wireless charging specifications

Product standard: BPP certification standard

Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc

Power supply mode: 24V/2-3A power adapter

Wireless charging power: 10W/7.5W/5W automatic recognition

Wireless charging efficiency: around 70%

Sensing distance: within 12-32mm, ideal distance 15-28mm

Working frequency: 100-205Khz

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support dual foreign object inspection (FOD)

Built in fan, self starting when overheated

Can be paired with a wired output module, with a total output power of 48W from three ports

Cannot directly place the phone on the coil, it needs to be separated by more than 12mm

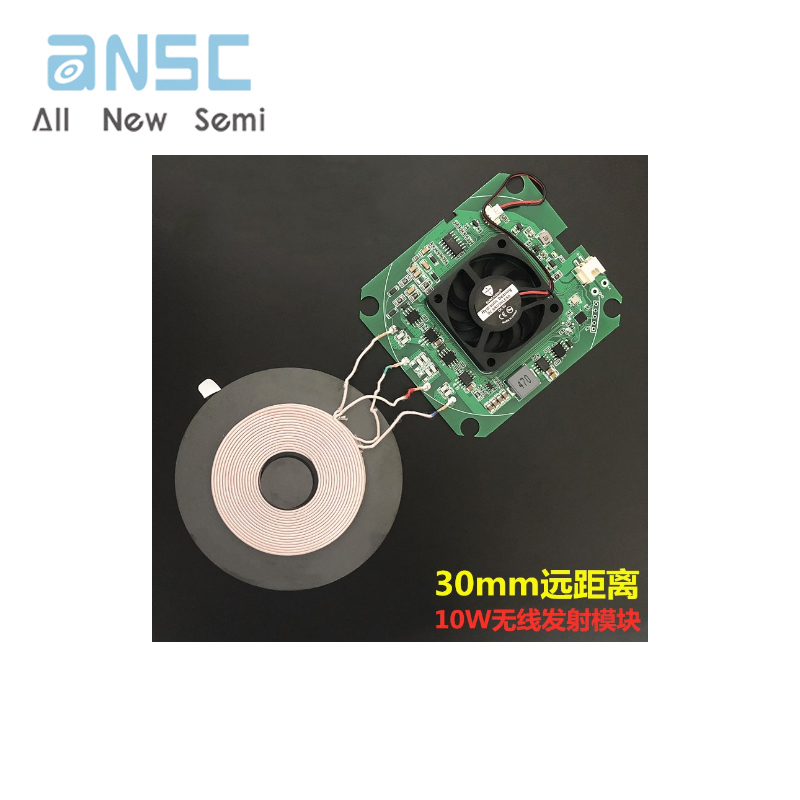

Overall dimensions of PCBA board: length 88mm * width 78mm * thickness 8mm

Magnetic isolation coil size: diameter 70mm, thickness 7mm, 4-layer coil

About Application

About customization

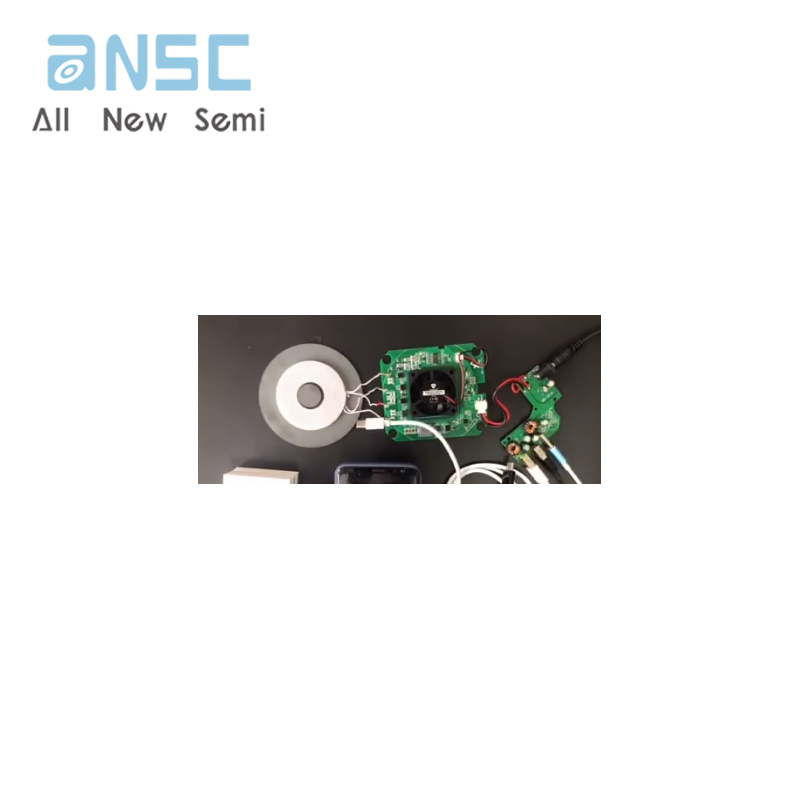

Delivery display
