10W mobile wireless fast charging charger transmitter module suitable for Apple X fast charging base Android Xiaomi universal QI

Product Descriptions:

Compliant with WPC V1.2.3 wireless charging specifications

Using high-performance main control chips

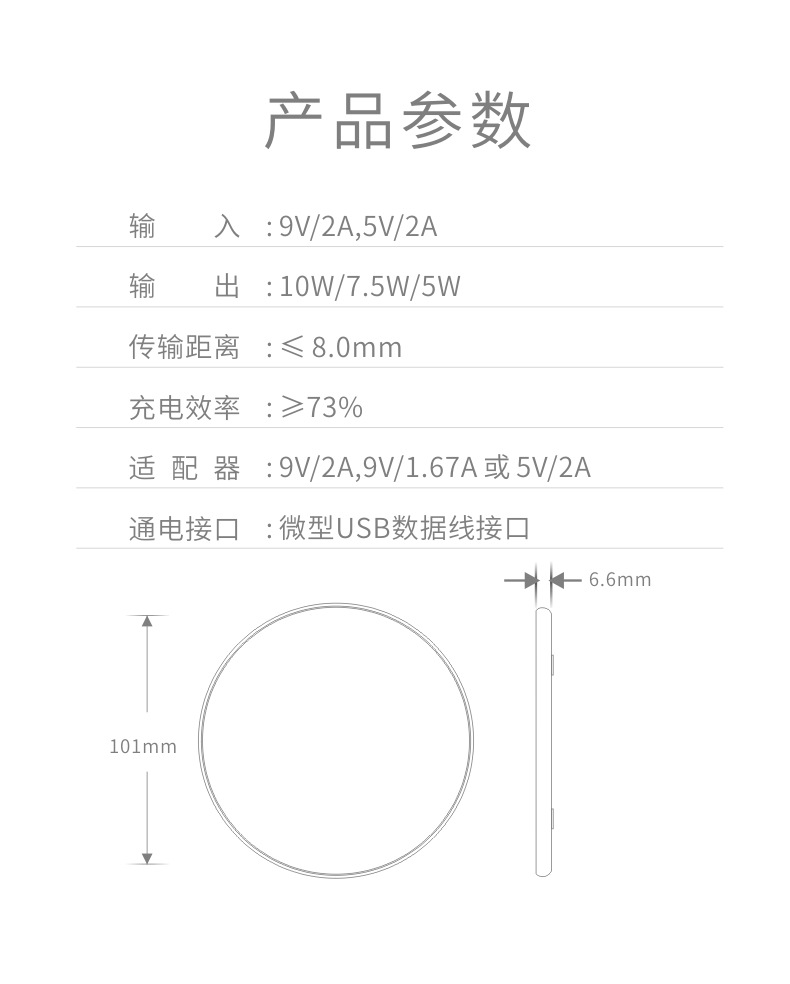

Input voltage/current: 9V/2A, 5V2A

Output voltage and current: 9V/1.11A, 5V1.5A, 5V1A

Supports 7.5W fixed frequency fast charging for iPhone 8 and above.

Peak power: 10W, compatible with 7.5W, 5W

Charging efficiency is around 70% -80%

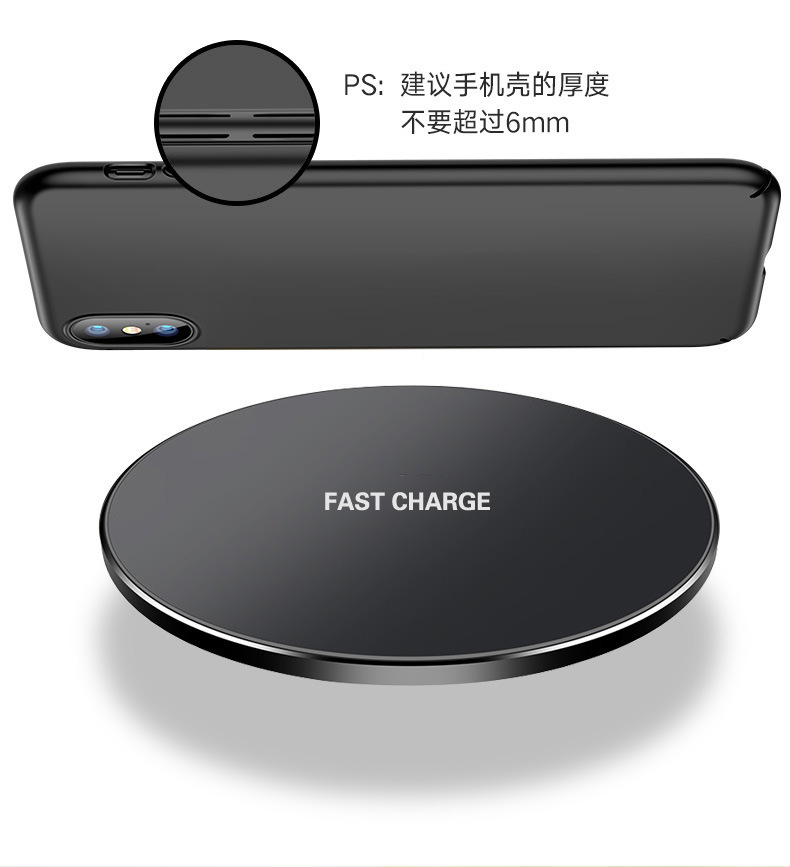

Sensing distance ≤ 8mm

Working frequency: 100-200Khz

Support dynamic energy balance

Intelligent recognition, 5W/7.5W/10W charging

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support full process intelligent low-temperature dual foreign object inspection (FOD).

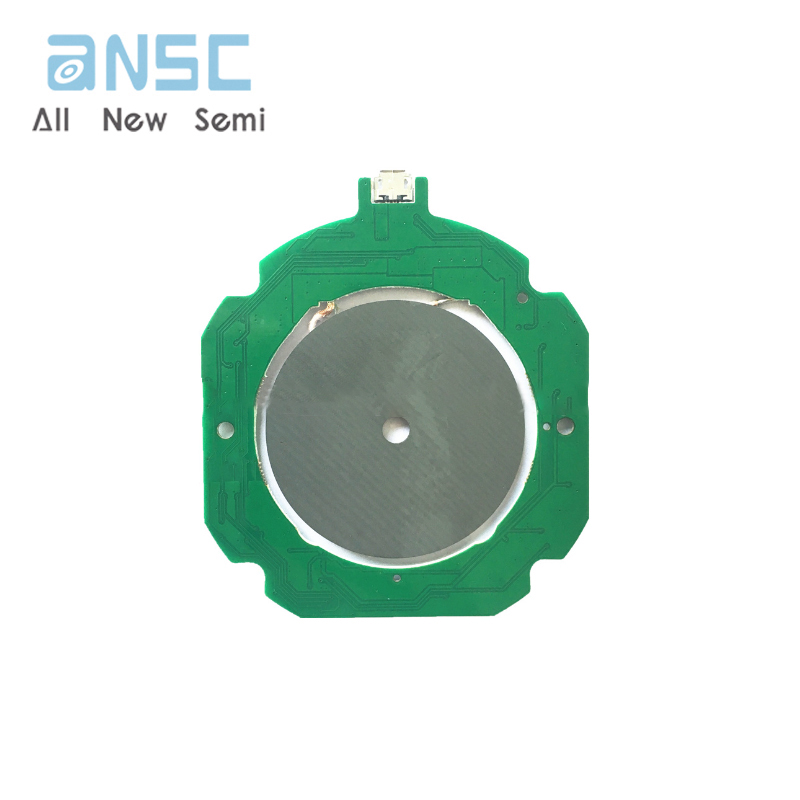

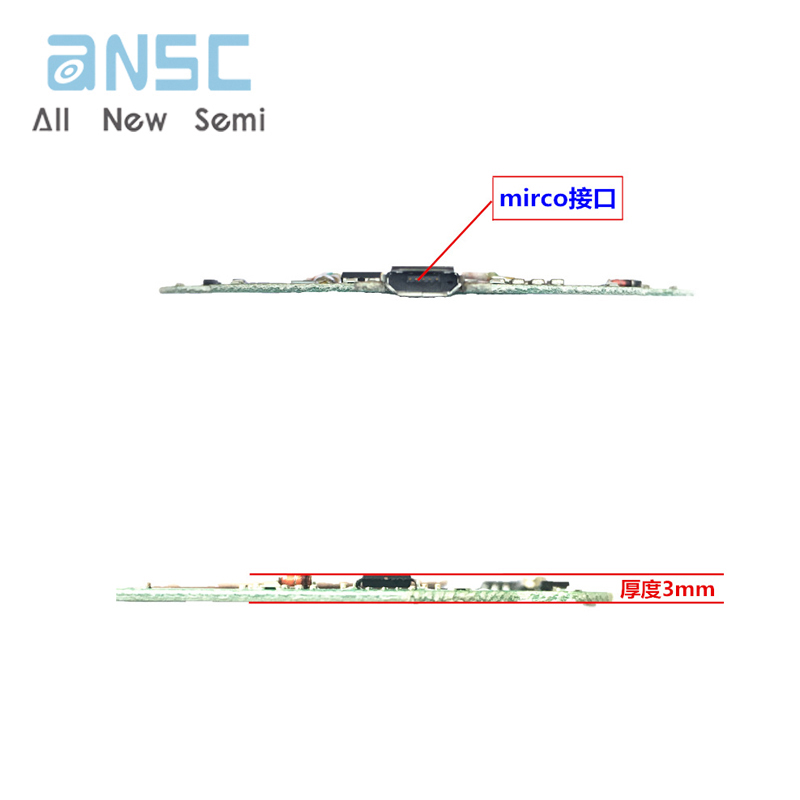

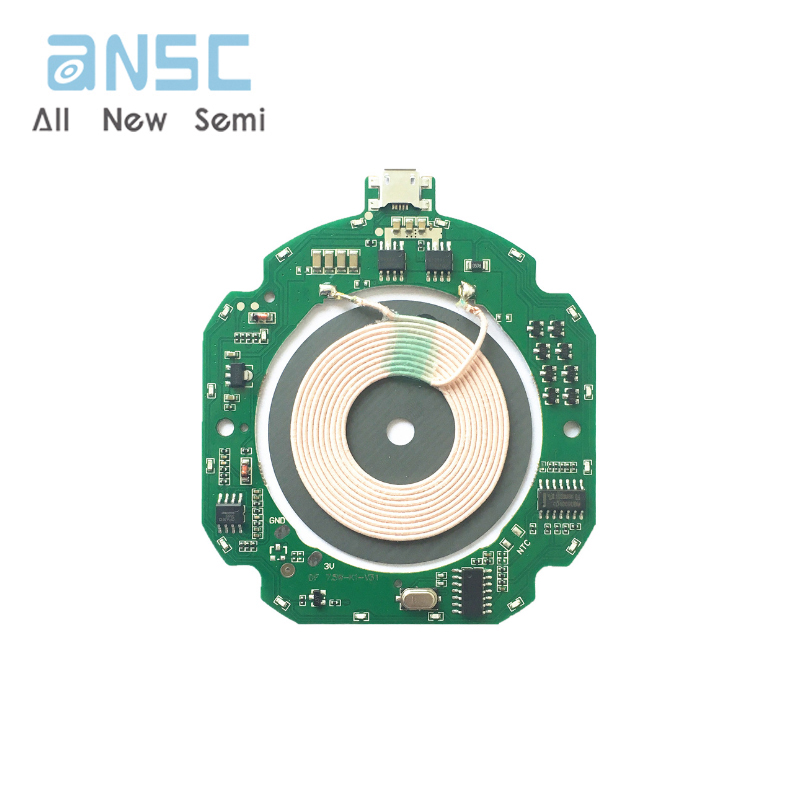

PCBA board size: 85mm in length, 74mm in width, and 3mm in thickness

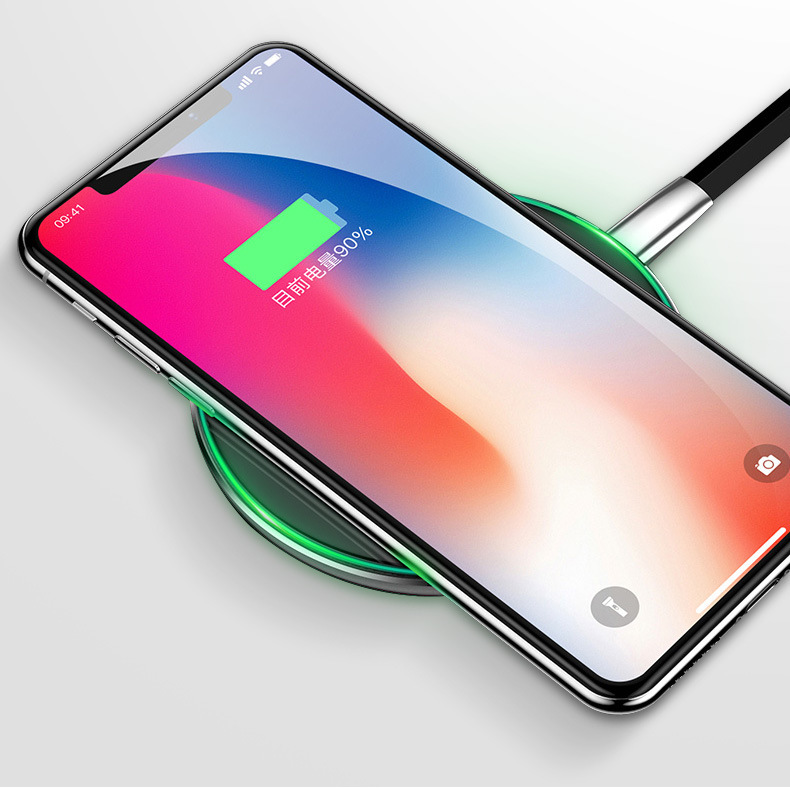

About Application
