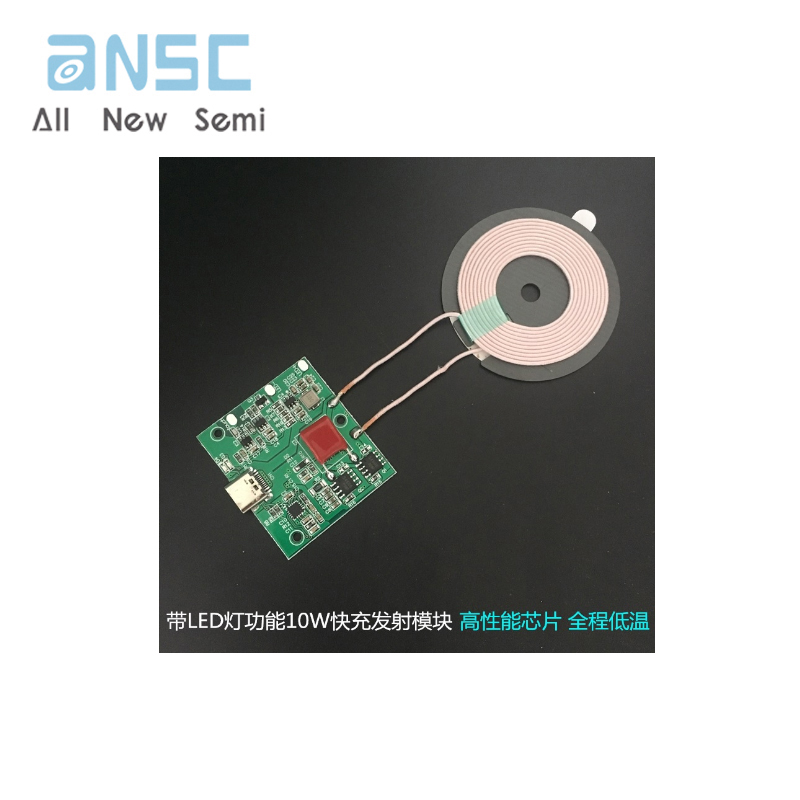

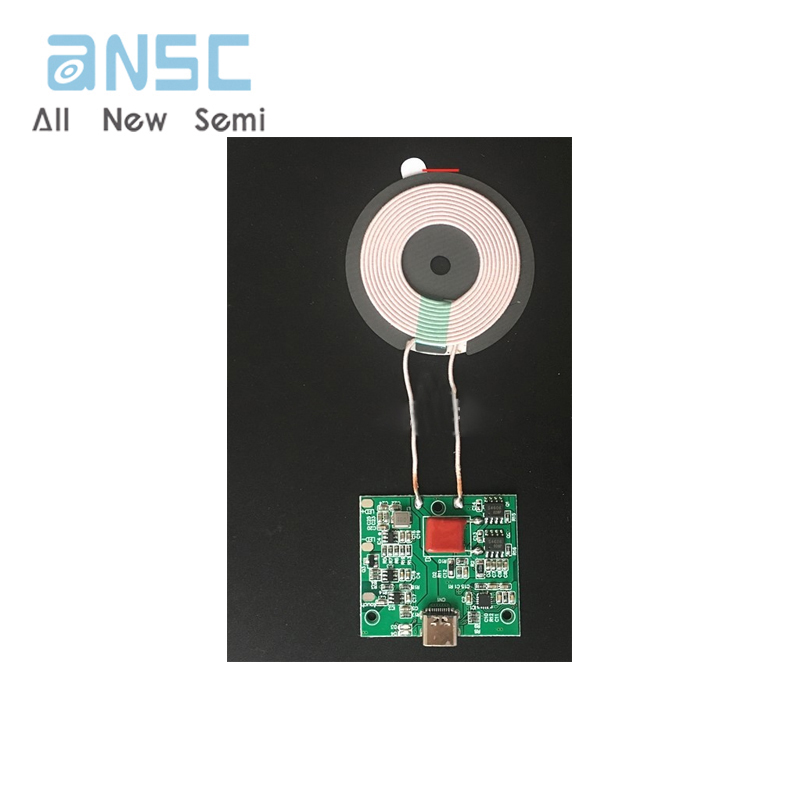

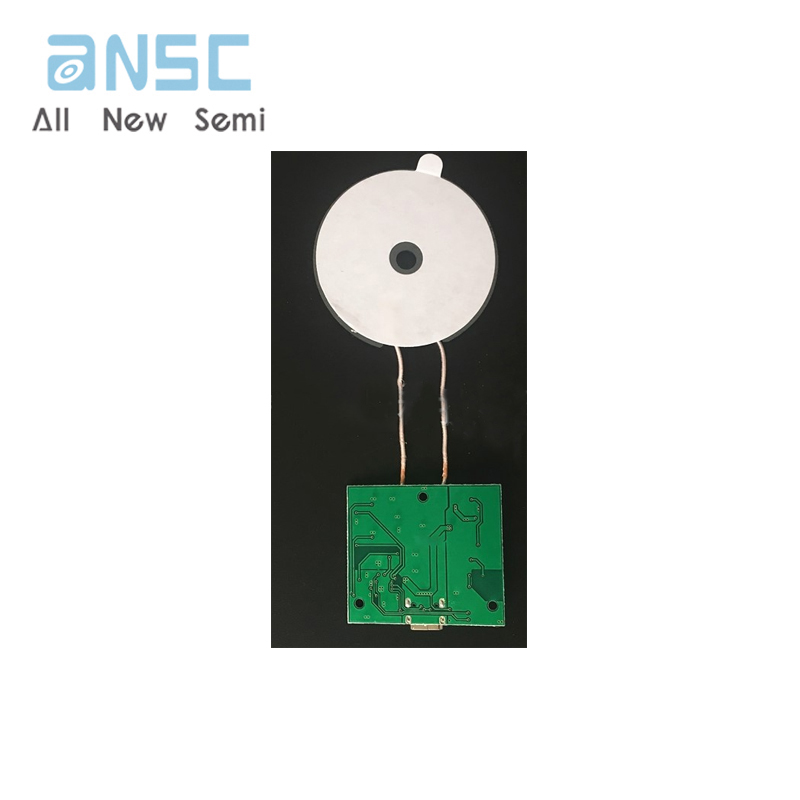

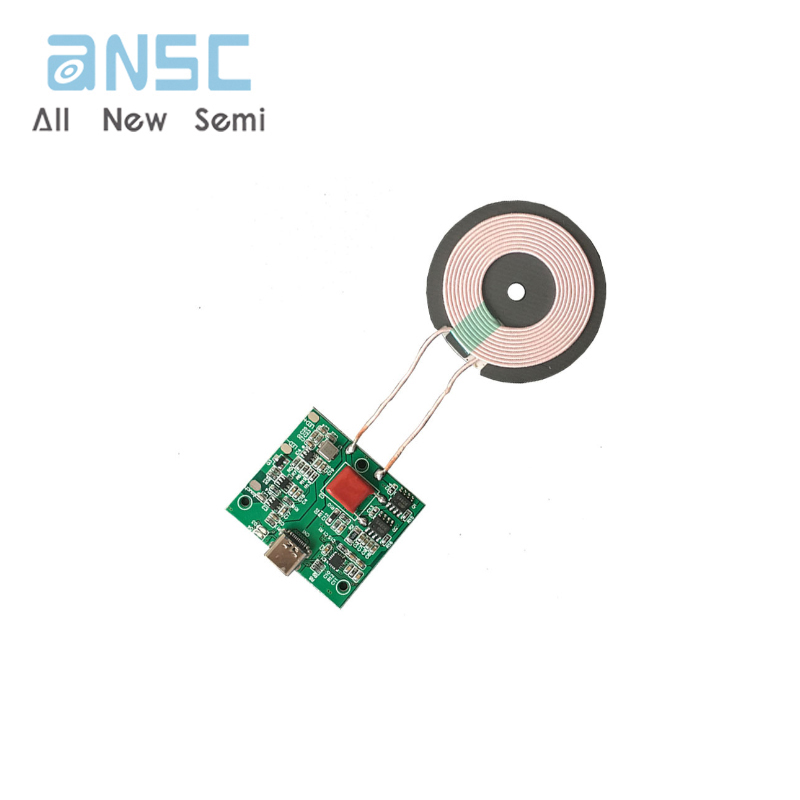

Equipped with touch LED light function, 10W transmitter module, mobile wireless charger, desk lamp, night light control board

Product Descriptions:

Compliant with WPC V1.2.3 wireless charging specifications

Product standard: BPP certification standard

Support mainstream mobile phone fast charging protocols such as Huawei, Xiaomi, Samsung, Apple, etc

Using high-performance main control chip, low-temperature charging throughout the entire process

Power supply mode: QC3.0 charging head or 9V2A charging head

Wireless charging power: 10W/7.5W/5W automatic recognition

LED light power: around 2-5W

Wireless charging efficiency: around 75%

Sensing distance: ≤ 8mm

Working frequency: 100-200Khz

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support dual foreign object inspection (FOD)

PCBA board size: length 35mm * width 40mm * thickness 4.2mm

Magnetic coil size: diameter 50mm, thickness 2.2mm
