20mm long-distance mobile wireless charger, 15W high-power transmission module, bar counter furniture, car DIY modification

Product Descriptions:

Compliant with WPC V1.2.3 wireless charging specifications

Product standard: EPP certification standard

Support mainstream mobile phone fast charging protocols such as Samsung, Apple, Huawei, Xiaomi, etc

Using high-performance main control chip and power management chip, stable and efficient

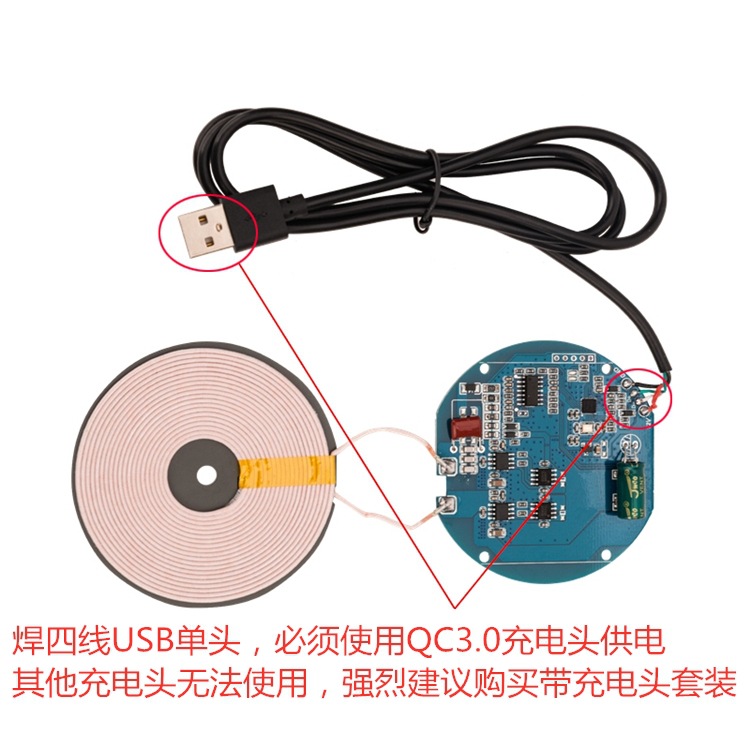

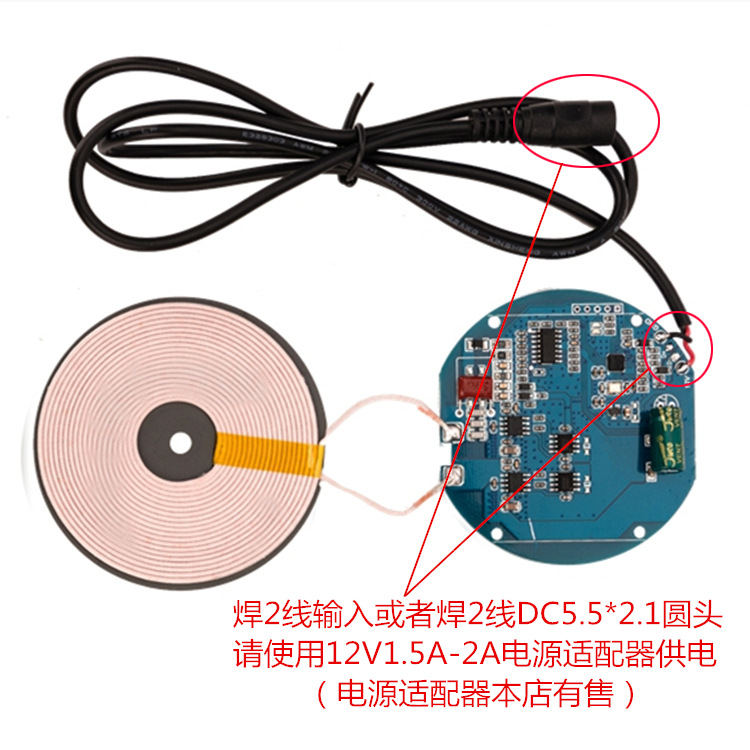

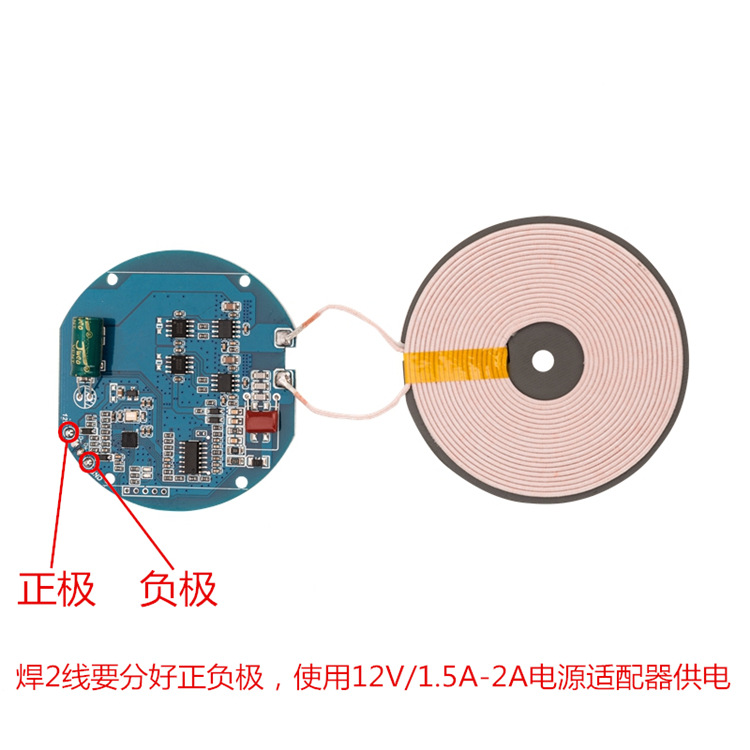

Use 12V/1.5A-2A power supply or OC3.0 charging head for power supply

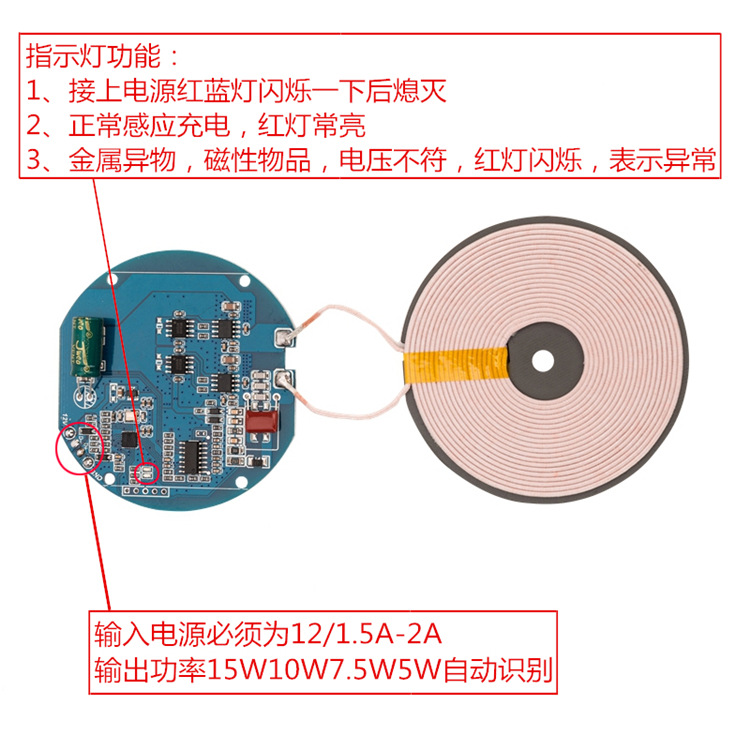

Output power: 15W/10W/7.5W/5W automatic recognition

Charging efficiency: above 75%

Induction distance ≤ 20mm, ideal charging distance: 8-18mm

Working frequency: 100-200Khz

Support dynamic energy balance

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit

Support dual foreign object inspection (FOD)

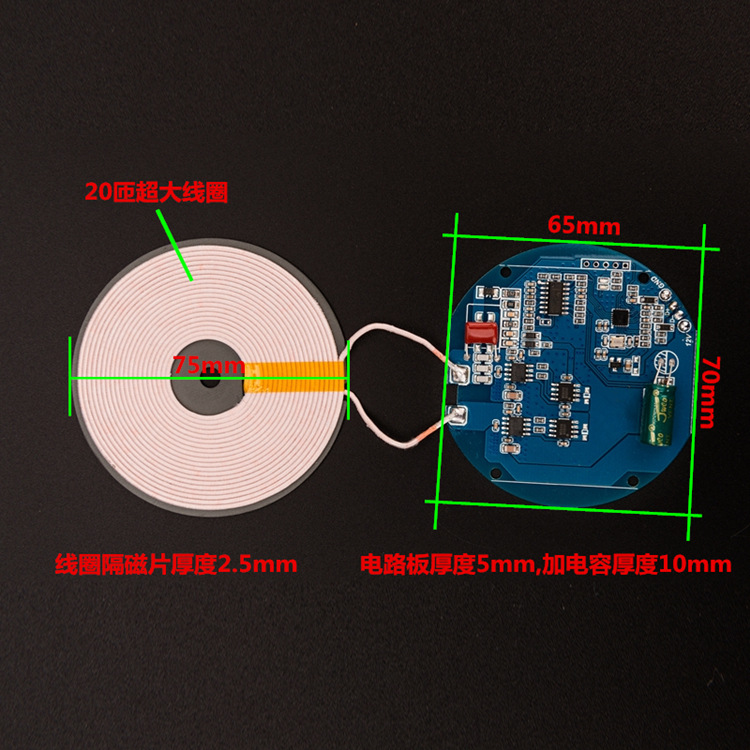

PCBA board size: length 70mm * width 65mm * thickness 10mm

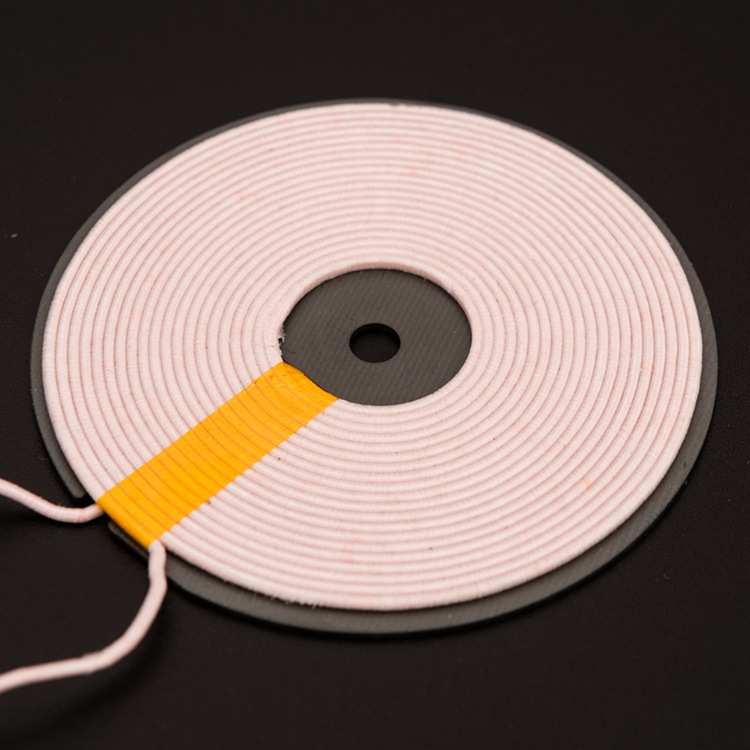

Magnetic isolation coil size: diameter 75mm, thickness 2.5mm
