Product Description

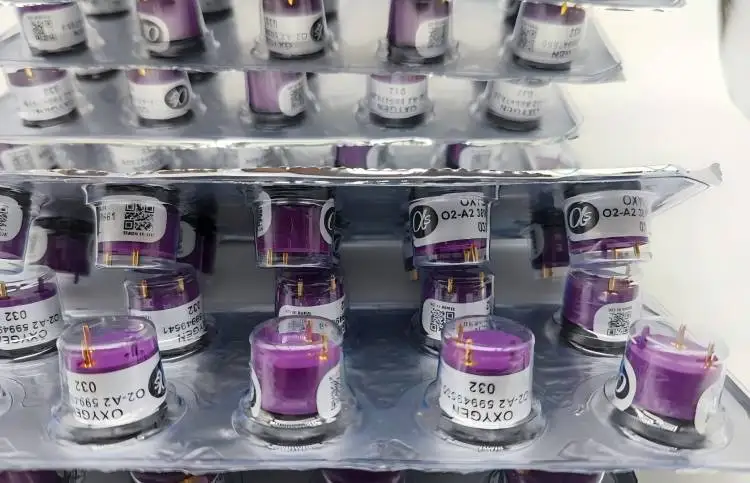

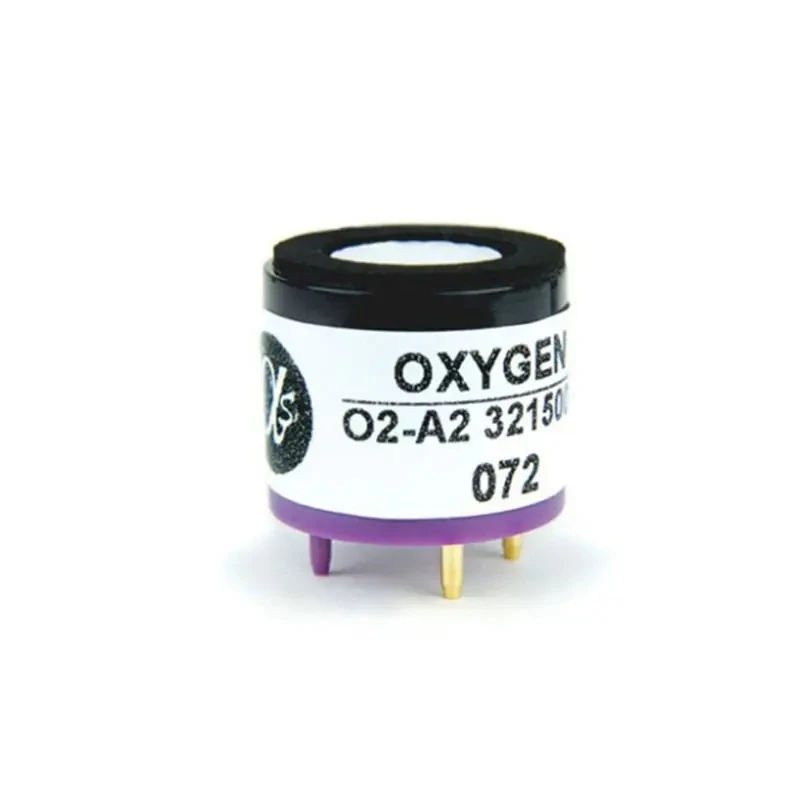

Oxygen sensor (O2-A2) Main features:
(1) Oxygen sensor measurement range (%): 0-30
(2) Working life: > 24 months when 85% of the initial signal is reached
(3) Size (mm) : Φ20.0×16.8mm
(4) Output: 80-120 μA @ 22°C, 20.9% O2
(5) Response time t90(seconds): < 10 from 20.9% to 0(load 47Ω)
(6) Linearity (ppm): <0.6 linear error at full range (zero,400ppm)
(7) Weight: < 16g
(8) Temperature range: -20-50 °C
(9) Pressure range: 80-120Kpa
(10) Humidity range: 5-95% RH
(11) Storage time: 6 months (storage temperature 3-20 °C)
(12) Load resistance: 47-100 ohms
