Product Description

Link: https://pan.baidu.com/s/1Ut1u5-OSHlO-VEcErhUkpw Extraction Code: nx2d

Parameters:

Infrared Laser Wavelength: 850nm

Communication Interface: IIC (400kHz), Address 0x29 (7-bit), Two Programmable GPIOs

Optimum Operating Temperature: -10°C to 60°C

Range (Near) Range: 0 to 100mm, 13mm Error. Under certain external environmental conditions,

such as in a dark environment, it may exceed 100mm.

Temperature Drift: 9 to 15mm

Voltage Drift: 3 to 5mm

Conversion Time: 15ms

Ambient Light Range: 1 to 100kLux, 16-bit Output

Ambient Light Gain Range: 1 to 40 (eight)

Ambient Light Sensitivity: 0.36Lux/count (535nm LED @ 1kLux, measured at Gain 20)

Angular Response: 42 degrees

Linearity Error: 5% (1 to 300) Lux), 10% (300 to 7500 Lux)

Gain Error: 1% (Gain of 20), 7% (Gain of 1 to 10)

2.8V: 2.8V voltage on the power input pin;

GND: Power ground;

SCL: I2C clock pin, connected to the master SCL;

SDA: I2C data pin, connected to the master SDA;

GPIO1: The sensor's data-ready signal pin.

Package Includes:

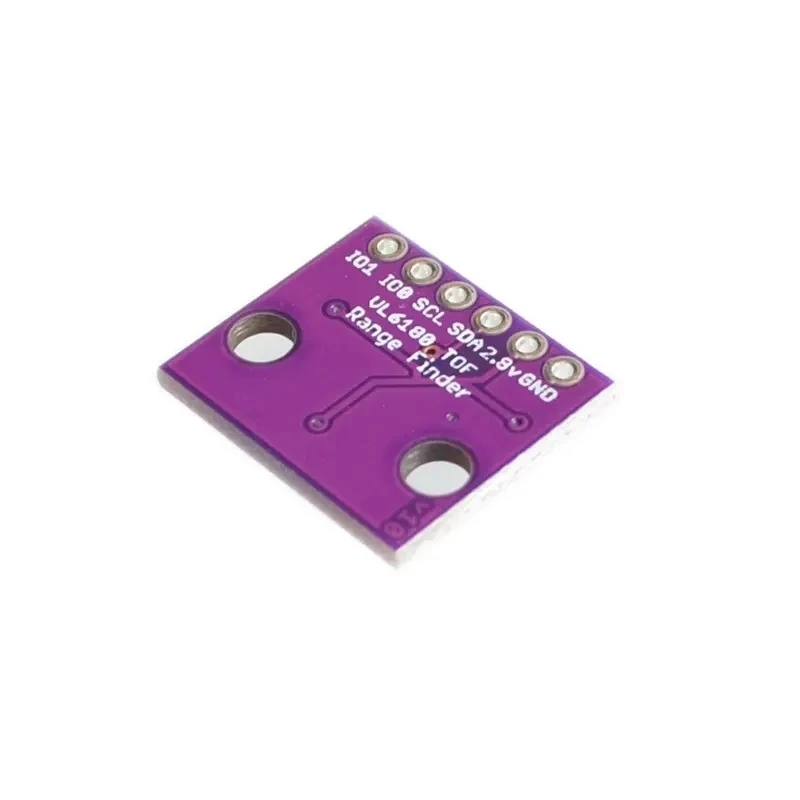

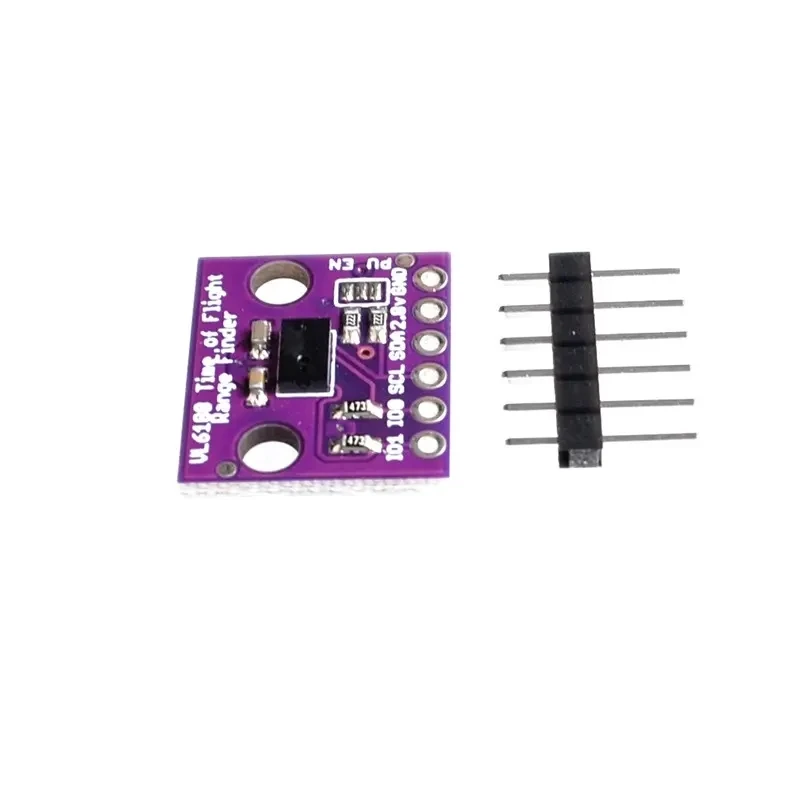

1 x VL6180X High-Precision Optical Range-Finding Module
