Product Description

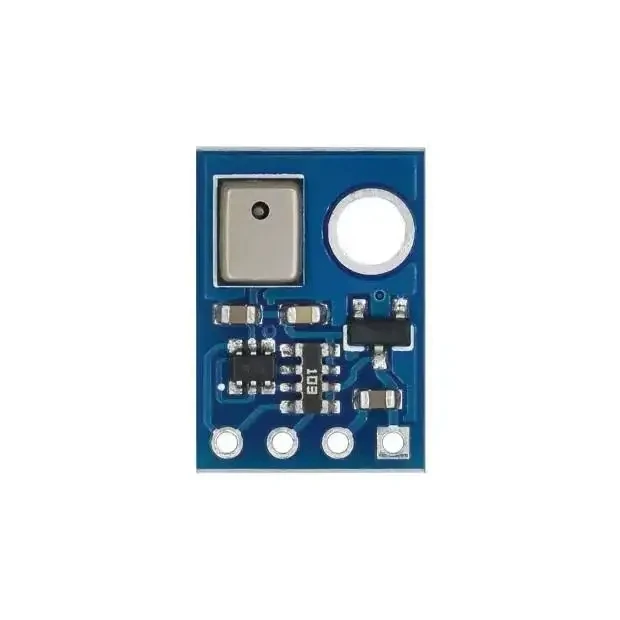

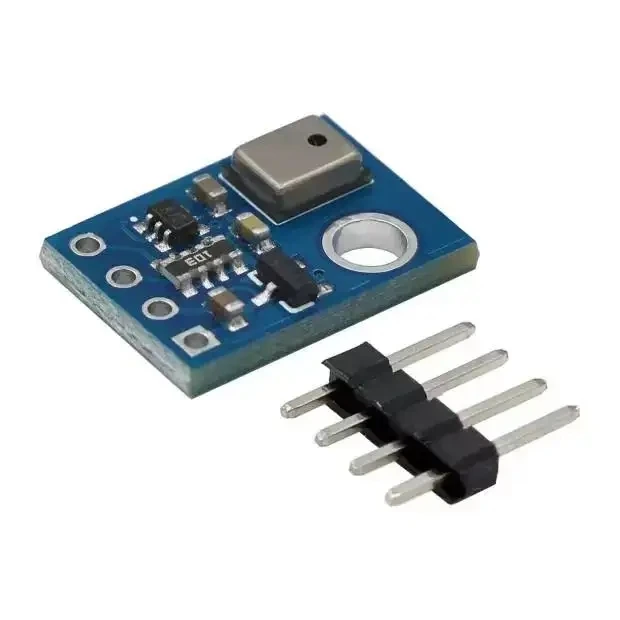

The AGS10 is a MEMS TVOC sensor with a digital I2C signal output. Equipped with a dedicated digital module acquisition technology and gas

Inductive sensing technology ensures high reliability and excellent long-term stability, with low power consumption, high sensitivity and high speed

Fast response, low cost, simple drive circuit and so on.

Peculiarity

Operating voltage: 3.0-6.0V
Typical power: 75mW
Sampling period: ≥2s
Interface speed: I2C slave mode (≤15kHz)
Preheating time: ≥120s
Operating temperature: 0 ~ 50°C
Working humidity: 0 ~ 95%RH
Life: > 5 years (25°C, in clean air)
Output unit: ppb
Measuring range: 0 ~ 99999 ppb
Typical accuracy (25 ° C /50%RH) : 25% reading
Standard test gas: ethanol
Module size: 15*10.6mm
