Product Functions

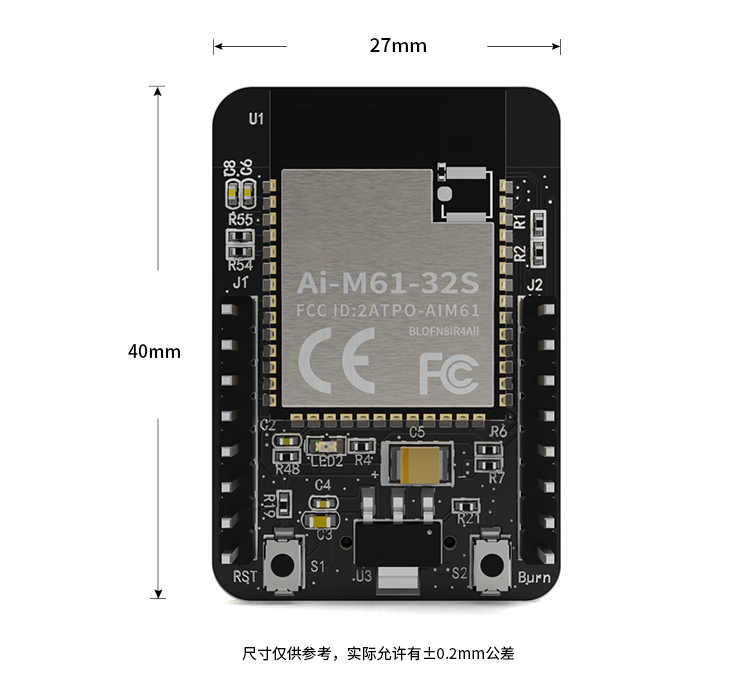

AiPi Cam-D200 is a core board designed for the high-performance module Ai-M61-32S, compatible with 200W cameras. Its pins are fully compatible with Ai-WB1-32S-CAM, and a TF socket is added to compensate for the shortcomings of Ai-WB1-32S-CAM.

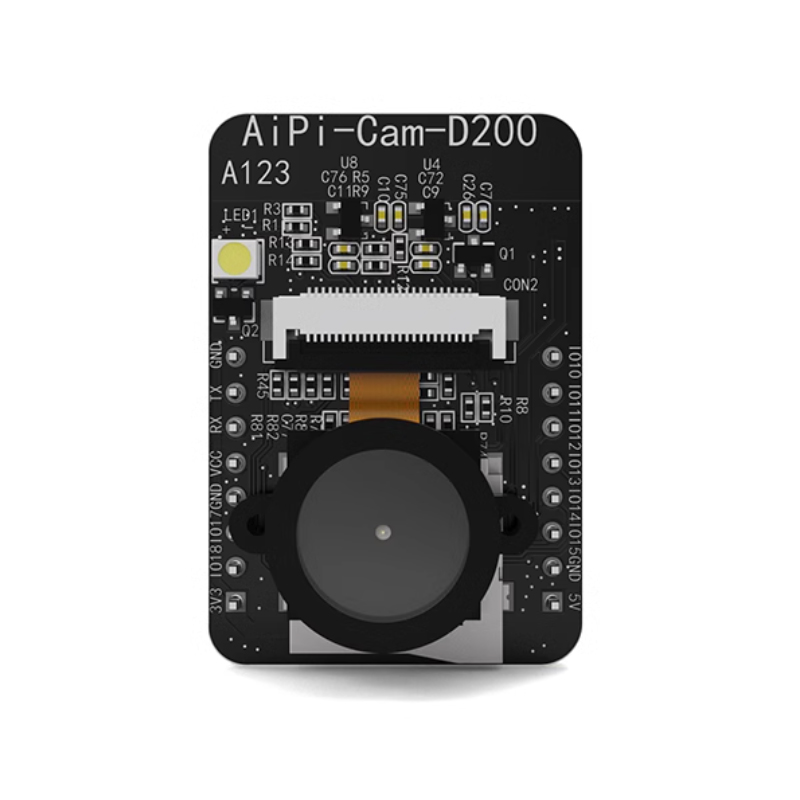

AiPi-Cam-D200 defaults to a 200W pixel camera and extracts all unused pins for easy development. It is an upgraded version of AiPi-Cam-D.

Product Specifications

Product Instructions

1、 Connect camera

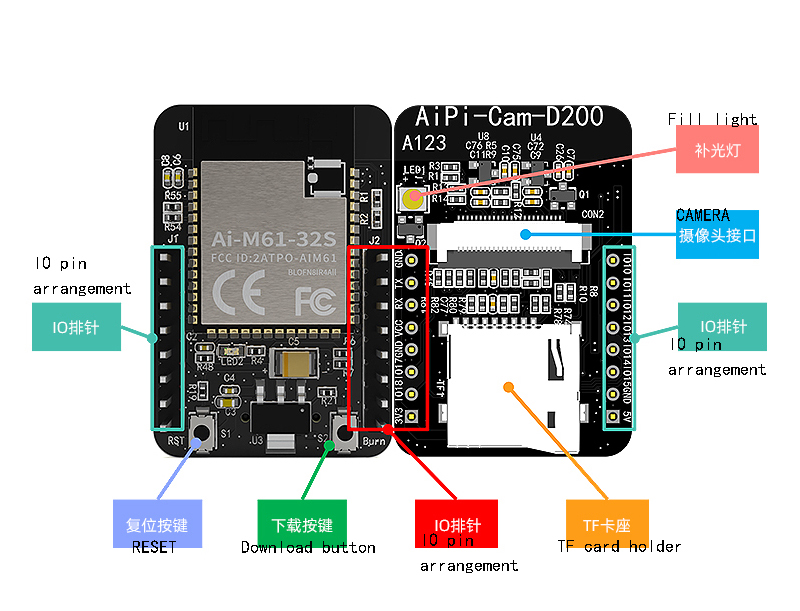

Connect the DVP camera through the FPC socket: fasten the camera cable into the AiPi Cam-D200 24Pin cable socket.

2、 Usage steps

1. AT command to connect to WiFi and obtain IP address

(1) Serial port wiring (motherboard users can directly connect to Type-C)；

(2) Select the corresponding port with a baud rate of 2000000；

(3) Enter AT+WJAP=SSID, PASSWORD, connect to the router, wait to obtain the IP address；

(4) Can I manually input AT+WJAP? View IP address.

2. View camera data

(1) Open the browser and enter the IP address obtained earlier；

(2) Click on Start Stream to see if there are any camera images.

3. Flash and camera function

(1) When the module is inserted into an SD card, it supports the camera function. Press the S2 button to store the captured images on the SD card, and the images are numbered and counted from 0. Remove the SD card from the module and use a card reader to read the contents of the SD card. You can see that the image has been stored in the SD card；

(2) The module is also equipped with LED light function. Press and hold the S2 button for 2 seconds or input AT (AT+LED=12) to activate the flash function. Press and hold again for 2 seconds or input AT+LED=0 to deactivate the flash function.
