Product Descriptions

Using the second generation ASMBL™ (Advanced Silicon Modular Block) column-based architecture, the Virtex-5 family contains five distinct platforms (sub-families), the most choice offered by any FPGA family. Each platform contains a different ratio of features to address the needs of a wide variety of advanced logic designs. In addition to the most advanced, high-performance logic fabric, Virtex-5 FPGAs contain many hard-IP system level blocks, including powerful 36-Kbit block RAM/FIFOs, second generation 25 x 18 DSP slices, SelectIO™ technology with built-in digitally-controlled impedance, ChipSync™ source-synchronous interface blocks, system monitor functionality, enhanced clock management tiles with integrated DCM (Digital Clock Managers) and phase-locked-loop (PLL) clock generators, and advanced configuration options. Additional platform dependant features include power-optimized high-speed serial transceiver blocks for enhanced serial connectivity, PCI Express® compliant integrated Endpoint blocks, tri-mode Ethernet MACs (Media Access Controllers), and high-performance PowerPC® 440 microprocessor embedded blocks. These features allow advanced logic designers to build the highest levels of performance and functionality into their FPGA-based systems. Built on a 65-nm state-of-the-art copper process technology, Virtex-5 FPGAs are a programmable alternative to custom ASIC technology. Most advanced system designs require the programmable strength of FPGAs. Virtex-5 FPGAs offer the best solution for addressing the needs of high-performance logic designers, high-performance DSP designers, and high-performance embedded systems designers with unprecedented logic, DSP, hard/soft microprocessor, and connectivity capabilities. The Virtex-5 LXT, SXT, TXT, and FXT platforms include advanced high-speed serial connectivity and link/transaction layer capability.

Product Features

 • Five platforms LX, LXT, SXT, TXT, and FXT

− Virtex-5 LX: High-performance general logic applications

− Virtex-5 LXT: High-performance logic with advanced serial connectivity

− Virtex-5 SXT: High-performance signal processing applications with advanced serial connectivity

− Virtex-5 TXT: High-performance systems with double density advanced serial connectivity

− Virtex-5 FXT: High-performance embedded systems with advanced serial connectivity

• Cross-platform compatibility

− LXT, SXT, and FXT devices are footprint compatible in thesame package using adjustable voltage regulators

• Most advanced, high-performance, optimal-utilization, FPGA fabric

− Real 6-input look-up table (LUT) technology

− Dual 5-LUT option

− Improved reduced-hop routing

− 64-bit distributed RAM option

− SRL32/Dual SRL16 option

• Powerful clock management tile (CMT) clocking

− Digital Clock Manager (DCM) blocks for zero delay buffering, frequency synthesis, and clock phase shifting

− PLL blocks for input jitter filtering, zero delay buffering, frequency synthesis, and phase-matched clock division

• 36-Kbit block RAM/FIFOs

− True dual-port RAM blocks

− Enhanced optional programmable FIFO logic

− Programmable

- True dual-port widths up to x36

- Simple dual-port widths up to x72

− Built-in optional error-correction circuitry

− Optionally program each block as two independent 18-Kbit blocks

• High-performance parallel SelectIO technology

− 1.2 to 3.3V I/O Operation

− Source-synchronous interfacing using ChipSync™technology

− Digitally-controlled impedance (DCI) active termination

− Flexible fine-grained I/O banking

− High-speed memory interface support

Specifications

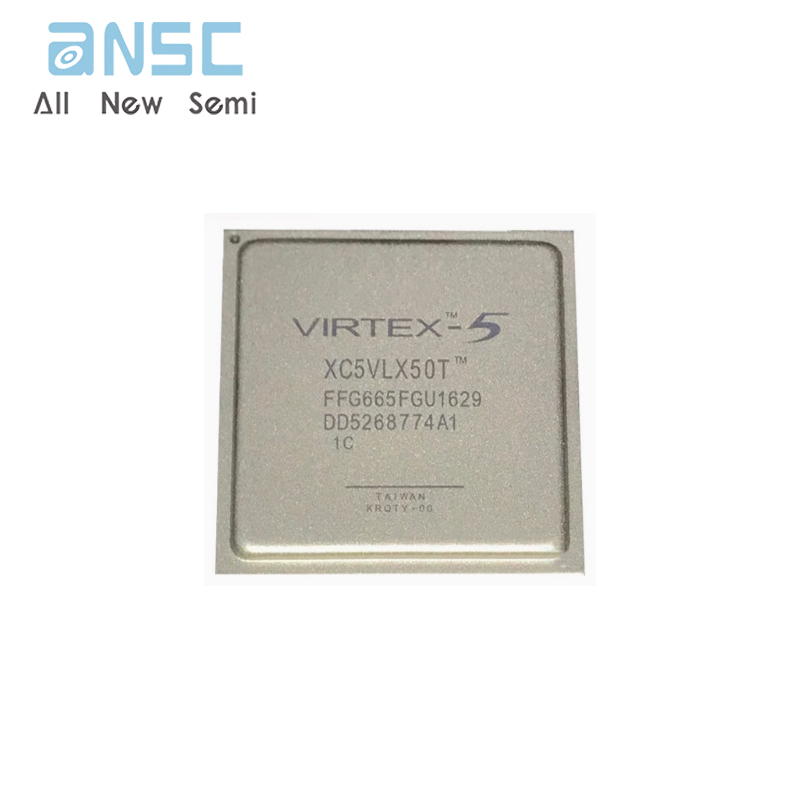

Actual product photos
