Hot selling 9EDGKS-10.16-L2-02P plug-in connector 78.3A1000V 10.16mm black, contact surface: silver_连接器插座电缆导线

Product Advantages

☑ Screw connection technology, safe and reliable

☑ Meets UL1059 600 V Class C standard

☑ Meet the requirements of IEC 61800-5-1 for electric shock protection

☑ The design of the middle flange reduces the space of at least one circuit compared to other solutions

Attribute	Attribute value
ANSM-Part#	ANSM-9EDGKS-10.16-L2-02P
包装类型 Packaging type	盒装 Boxed
硬导线横截面 Cross section of hard wire	0.2~16mm²
柔性导线横截面 Cross section of flexible wire	0.2~16mm²
可连接导线横截面 Cross section of connectable wires	22~6AWG
剥线长度 Strip length	12mm
额定电压(B) Rated voltage (B)	600V
额定电流(B) Rated current (B)	57A
额定电压 Rated voltage	1000V
额定电涌电压(III/3) Rated surge voltage (III/3)	8KV
连接方式 Connection method	螺钉连接 Screw connection
间距 Spacing	10.16mm
位数 Digit	2
层数 Number of layers	1
环保事项 Environmental issues	符合 Compliant with REACH/RoHS
接触件材料 Contact material	铜 Copper
触点区域金属表面 Metal surface in contact area	镀银 Silvering
绝缘材料 Insulation material	PA66
外壳颜色 Shell color	黑 Black
阻燃等级 Flame retardant grade	UL94V-0
环境温度（运行） Environmental temperature (operating)	-40℃~105℃(取决于降额曲线Depends on the derating curve)

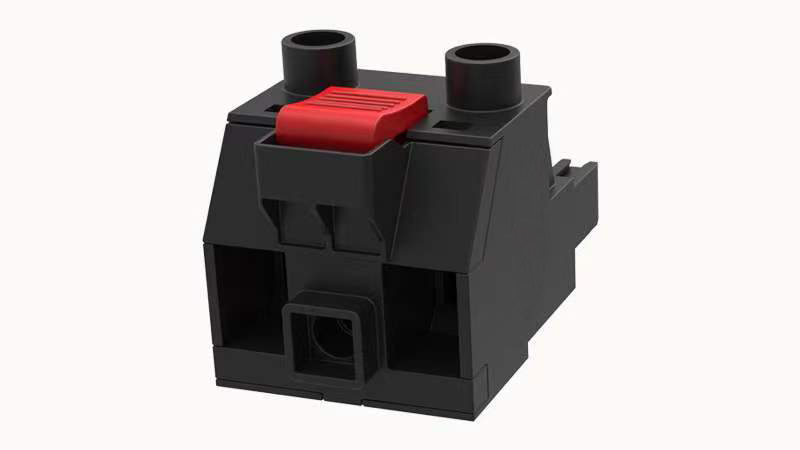

9EDGKS-10.16-L2-02P-13-00Z(H)
