Product Advantages
☑ Compatible with multiple types of sockets, the device design is highly flexible
☑ PUSH-IN connection technology, fast wiring
☑ High density double row, compact structure
Product Specification
| Attribute | Attribute value |

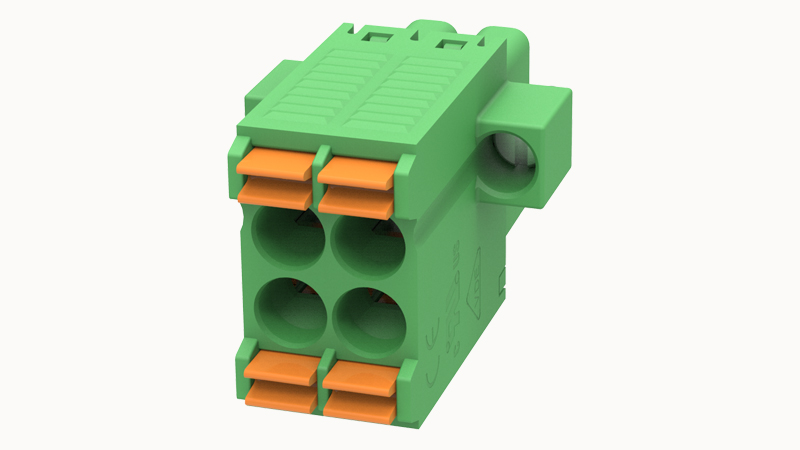

| ANSM-Part# | ANSM-15EDGKNHM-3.5-04P |
| 硬导线横截面 Cross section of hard wire | 0.2~1.5mm² |
| 柔性导线横截面 Cross section of flexible wire | 0.2~1.5mm² |
| 可连接导线横截面 Cross section of connectable wires | 26~16AWG |
| 剥线长度 Strip length | 10mm |
| 额定电压(B) Rated voltage (B) | 300V |
| 额定电流(B) Rated current (B) | 8A |
| 额定电压 Rated voltage | 250V |
| 额定电涌电压(III/3) Rated surge voltage (III/3) | 2.5KV |
| 连接方式 Connection method | 直插式弹簧连接 Direct insertion spring connection |
| 间距 Spacing | 3.5mm |
| 位数 Digit | 4 |
| 层数 Number of layers | 1 |
| 环保事项 Environmental issues | 符合 Compliant with REACH/RoHS |
| 接触件材料 Contact material | 铜合金 Copper alloy |
| 触点区域金属表面 Metal surface in contact area | 镀锡 Tin-plating |
| 绝缘材料 Insulation material | PA66 |
| 阻燃等级 Flame retardant grade | UL94V-0 |
| 环境温度（运行） Environmental temperature (operating) | -40℃~105℃(取决于降额曲线Depends on the derating curve) |
