Product Advantages
☑ Compatible with multiple types of sockets, the device design is highly flexible
☑ Can meet the requirements of preventing incorrect insertion
☑ Universal installation method, suitable for various occasions
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-2EDGK-5.0-02P |
| 硬导线横截面 Cross section of hard wire | 1.0~2.5mm² |
| 柔性导线横截面 Cross section of flexible wire | 1.0~2.5mm² |
| 可连接导线横截面 Cross section of connectable wires | 28~12AWG |
| 剥线长度 Strip length | 7mm |
| 额定电压(B) Rated voltage (B) | 300V |
| 额定电流(B) Rated current (B) | 15A |
| 额定电压 Rated voltage | 320V |
| 额定电涌电压(II/2) Rated surge voltage (II/2) | 4KV |
| 连接方向 Connection direction | 0° |
| 连接方式 Connection method | 螺钉连接 Screw connection |
| 螺钉头驱动方式 Screw head driving method | 一字螺丝刀 A screwdriver |
| 螺纹 Thread | M3 |
| 是否插拔 Whether to plug or unplug | 是 Yes |
| 间距 Spacing | 5mm |
| 位数 Digit | 2 |
| 层数 Number of layers | 1 |
| 环保事项 Environmental issues | 符合 Compliant with REACH/RoHS |
| 接触件材料 Contact material | 铜合金 Copper alloy |
| 触点区域金属表面 Metal surface in contact area | 镀锡 Tin-plating |
| 绝缘材料 Insulation material | PA66 |
| 绝缘材料组 Insulation material group | Ⅰ |
| 阻燃等级 Flame retardant grade | UL94V-0 |
| 环境温度（运行） Environmental temperature (operating) | -40℃~105℃(取决于降额曲线 Depending on the derating curve) |

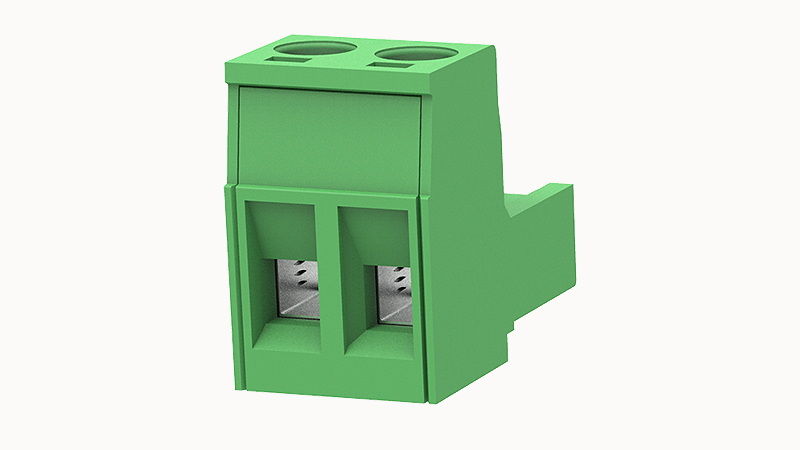

Product Show
